Toro 30868 - Product Overview; Controls

ProductOverview

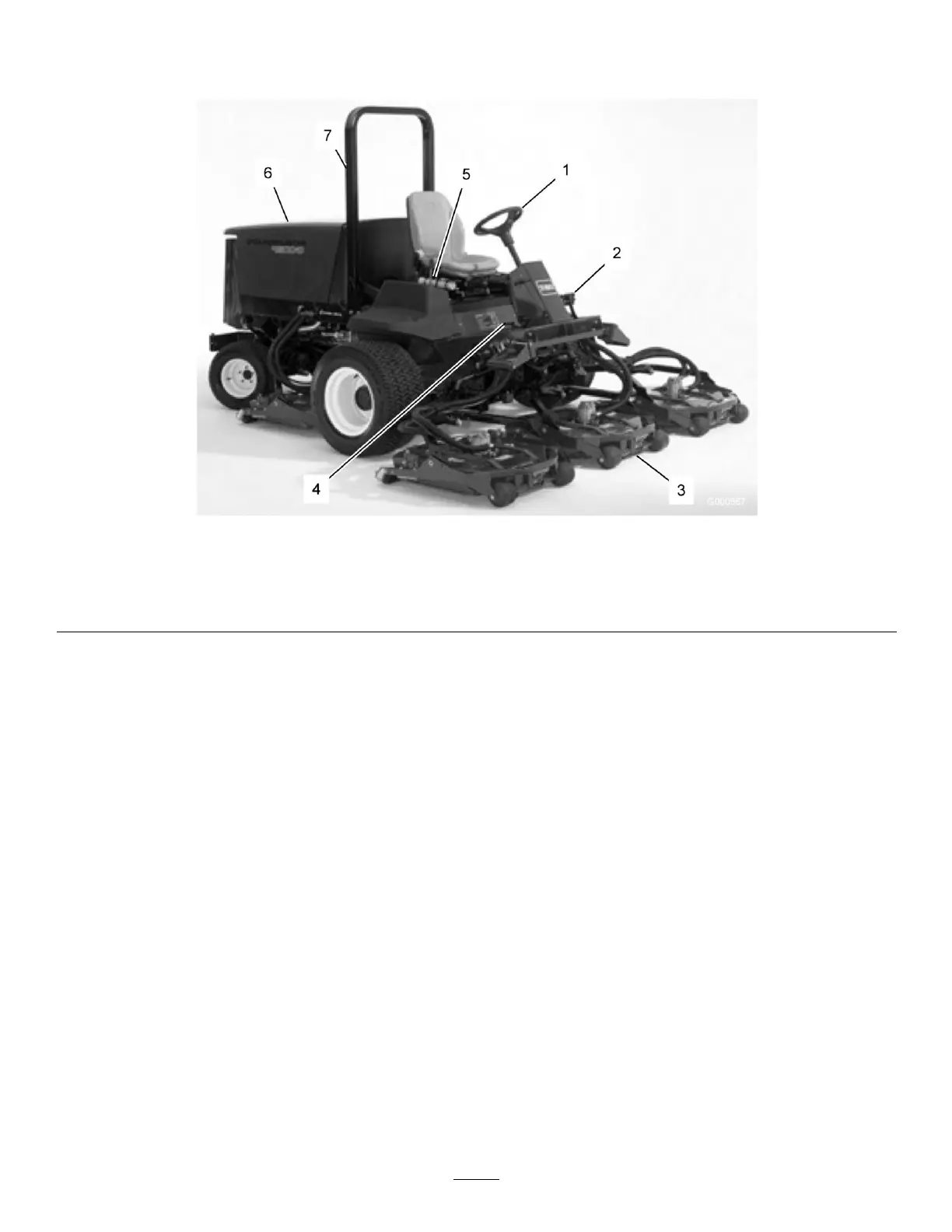

Figure4
1.Steeringwheel
4.Tractionpedal
7.ROPS(RolloverProtectionSystem)
2.Brakes5.Manualtube
3.Cuttingunit6.Hood/enginecompartment
Controls
TractionPedal
Thetractionpedal(Figure5)controlsforwardand
reverseoperation.Depressthetopofthepedaltomove
forwardandthebottomtomovebackward.Ground
speeddependsonhowfarthepedalisdepressed.For
noload,maximumgroundspeed,fullydepressthepedal
whilethethrottleisinFast.
Tostop,reduceyourfootpressureonthetractionpedal
andallowittoreturntothecenterposition.
ForwardSpeedControl
Presettheforwardspeedcontrol(Figure5)tolimit
theamountthetractionpedalcanbedepressedinthe
forwarddirectiontomaintainaconstantmowingspeed.
KeySwitch
Thekeyswitch(Figure5)hasthreepositions:Off,
On/Preheat,andStart.
EngineOilPressureWarningLight
Thelight(Figure5)illuminateswhentheengineoil
pressureisdangerouslylow.
