Toro 30881 Installation Instructions

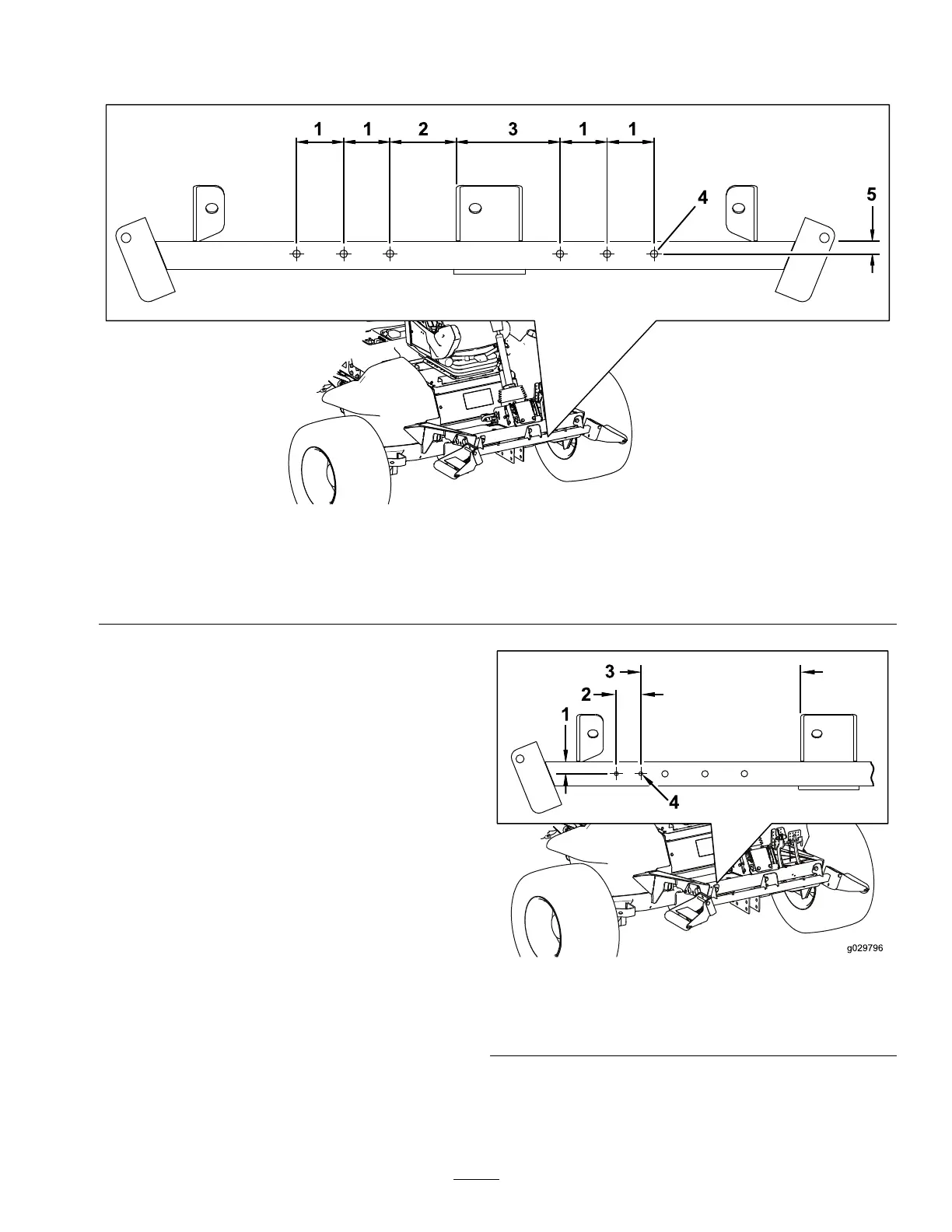

5.UsingthedimensionsinFigure3,locateand
drill6holes(1.0cm)throughbothwallsofthe
roller-supporttube.
g371868
Figure3
1.6.4cm(2-1/2inches)4.1.0cm(13/32inch)diameter
2.8.9cm(3-1/2inches)5.1.9cm(3/4inch)
3.14.0cm(5-1/2inches)
DrillingtheHolesfortheHorn
Bracket
UsingthedimensionsinFigure4,locateand
drill2holes(9/32inch)throughbothwallsofthe
roller-supporttube.
g029796
Figure4
1.1.9cm(3/4inch)3.25.4cm(10inches)
2.3.8cm(1-1/2inches)4.7mm(9/32inch)diameter
