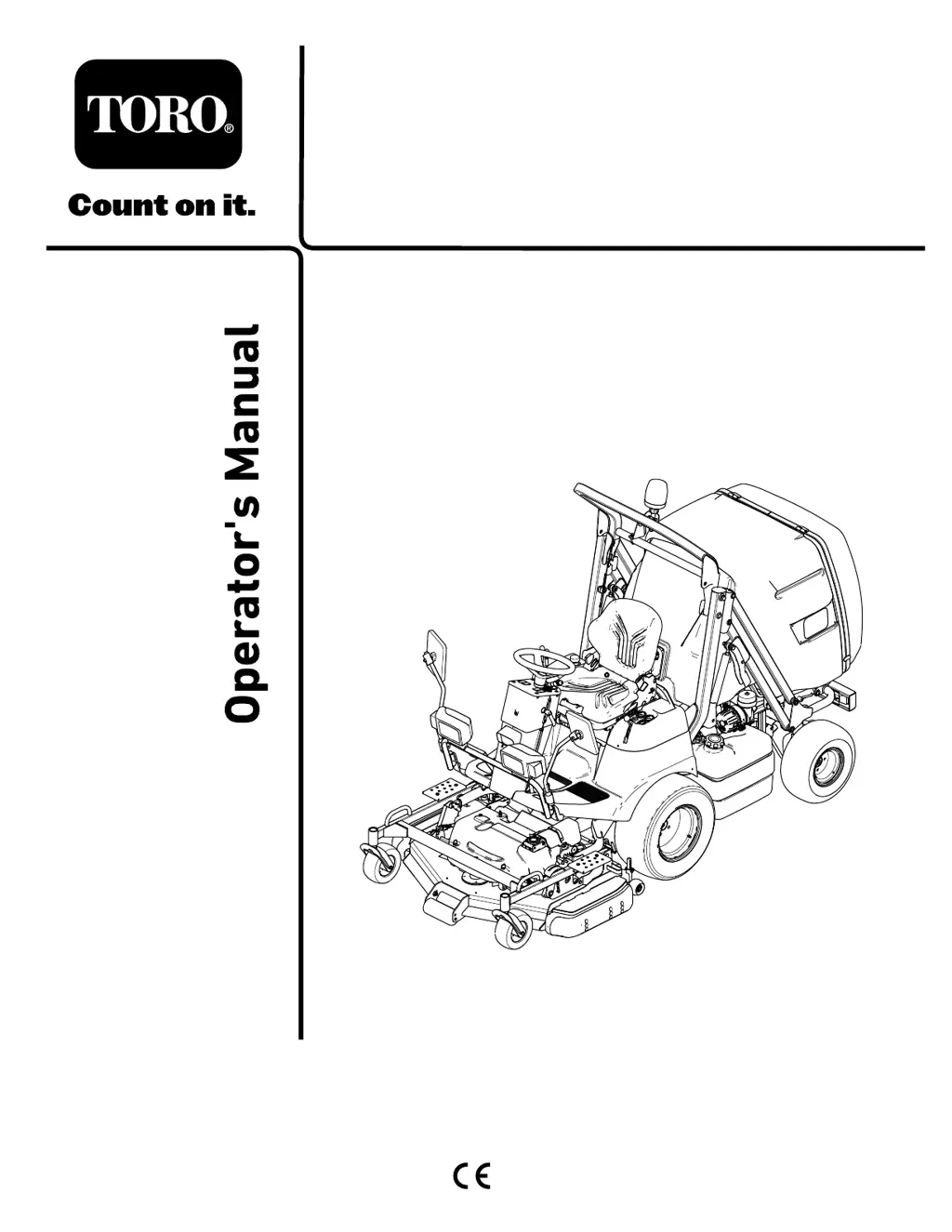

FormNo.3435-272RevB
ProLineH800RotaryMower
ModelNo.31050—SerialNo.317000001andUp
ModelNo.31050TE—SerialNo.319000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)
*3435-272*B

Table of Contents

Other manuals for Toro 31050

Questions and Answers

  • M
    Matthew NelsonSep 10, 2025
    Why is my Toro 31050 Lawn Mower vibrating while operating?
    • M
      Michael FrancisSep 10, 2025
      If your Toro Lawn Mower vibrates during operation, balance the blades or replace them if they are damaged. Additionally, tighten any loose blade bolts, engine bolts, and frame screws.
  • J
    Julie DouglasAug 22, 2025
    What to do if the starter motor turns, but the engine does not start on my Toro Lawn Mower?
    • L
      lthomasAug 23, 2025
      If the starter motor turns but the engine doesn't start on your Toro Lawn Mower, check the fuel-tank level to ensure fuel is flowing through the system. Inspect and replace the fuel filter if necessary. Make sure the vent on the fuel-tank cap isn't blocked. If the engine is cold, wait for the glow-plug warning light to switch off, or shut off the engine and turn the key to the ON/PREHEAT position for a second glow cycle.
  • M
    marmstrongAug 25, 2025
    Why won't my Toro 31050 start, even though the starter motor turns?
    • S
      samantha84Aug 25, 2025
      If the starter motor turns but the engine doesn't start on your Toro Lawn Mower, check the fuel-tank level and refill if needed. Inspect and replace the fuel filter if necessary. Make sure the vent on the fuel-tank cap isn't blocked. Allow the glow-plug warning light to switch off, or shut off the engine and turn the key to the ON/PREHEAT position for a second glow cycle.
  • T
    Thomas MooreAug 27, 2025
    What to do if the cut is uneven with my Toro 31050?
    • M
      Melissa HamiltonAug 27, 2025
      If you notice an uneven cut and insufficient collection with your Toro Lawn Mower, several factors could be the cause. Make sure the tires are properly inflated and adjust the mower deck to be parallel to the ground. Check if the blades are mounted correctly and sharpen or replace them if necessary. Also, adjust the PTO belt tension. If your travel speed is too fast for the grass height, slow down. Ensure that the chute is not blocked by cleaning it and verify that the maximum engine speed is 3000 rpm. Additionally, clean the grass-catcher screen.
  • V
    vanessaweaverAug 28, 2025
    What to do if my Toro Lawn Mower engine shuts off while the PTO is still engaged?
    • P
      patrick73Aug 28, 2025
      If your Toro Lawn Mower engine shuts off while the PTO is engaged, the PTO switch may be malfunctioning, so check its function. Ensure you are sitting in the operator's seat. Also, make sure the hopper is closed and lowered. Finally, check that the parking brake is disengaged, especially if the traction pedal is pressed down.
  • D
    David CooperAug 29, 2025
    Why does my Toro 31050 vibrate while operating?
    • K
      Kenneth GonzalezAug 29, 2025
      If your Toro Lawn Mower vibrates during operation, it could be due to unbalanced blades. Try balancing the blades, or replace them if they are damaged. Also, check for any loose bolts, such as the blade bolts, engine bolts, and frame screws, and tighten them as needed.
  • S
    Selena MarshSep 18, 2025
    What to do if the mower deck does not run when the PTO switch is engaged on my Toro Lawn Mower?
    • L
      Lauren ScottSep 18, 2025
      If the mower deck does not run when the PTO switch is engaged on your Toro Lawn Mower, make sure you are sitting in the operator’s seat and that the hopper is completely lowered.
  • L
    lyoungSep 12, 2025
    Why does the engine oil warning light illuminate on my Toro Lawn Mower?
    • S
      simmonsashleySep 12, 2025
      If the engine-oil warning light comes on in your Toro Lawn Mower, check the engine-oil level and add oil if necessary. You may also need to change the engine oil and engine-oil filter.
  • A
    Andrew FergusonSep 8, 2025
    What to do if the dash panel indicator lights turn on but the starter motor does not turn on my Toro 31050 Lawn Mower?
    • E
      Elizabeth LyonsSep 8, 2025
      If the dash panel lights are on but the starter motor won't turn on your Toro Lawn Mower, try these steps: Charge the battery. Move the traction pedal to the NEUTRAL position. Ensure you are sitting down in the operator’s seat. Disengage the PTO.
  • J
    Jeffrey BanksSep 5, 2025
    What to do if the dash panel indicator lights do not turn on in my Toro 31050?
    • A
      Andrea BaileySep 5, 2025
      If the dash panel indicator lights do not turn on when the key switch is in the ON position on your Toro Lawn Mower, check the wire connections. Also, verify the battery electrolyte level. If it is low, replenish it. If the battery has no charge, charge the battery. Finally, check if a fuse is bad and replace it if necessary.

Toro 31050 Specifications

General IconGeneral
BrandToro
Model31050
CategoryLawn Mower
LanguageEnglish
