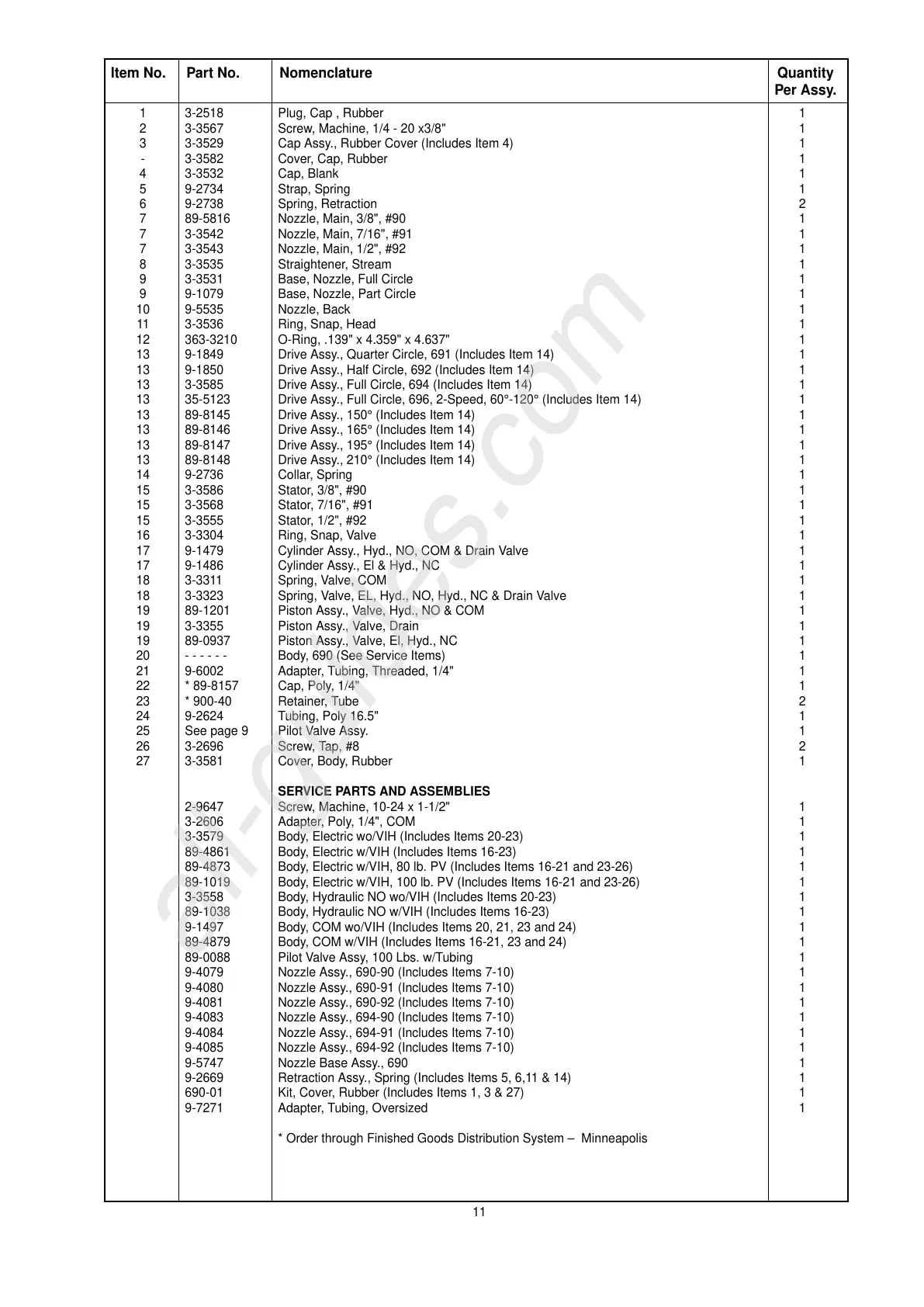

Item No. Part No. Nomenclature Quantity
Per Assy.
1 3-2518 Plug, Cap , Rubber 1
2 3-3567 Screw, Machine, 1/4 - 20 x3/8" 1
3 3-3529 Cap Assy., Rubber Cover (Includes Item 4) 1
- 3-3582 Cover, Cap, Rubber 1
4 3-3532 Cap, Blank 1
5 9-2734 Strap, Spring 1
6 9-2738 Spring, Retraction 2
7 89-5816 Nozzle, Main, 3/8", #90 1
7 3-3542 Nozzle, Main, 7/16", #91 1
7 3-3543 Nozzle, Main, 1/2", #92 1
8 3-3535 Straightener, Stream 1
9 3-3531 Base, Nozzle, Full Circle 1
9 9-1079 Base, Nozzle, Part Circle 1
10 9-5535 Nozzle, Back 1
11 3-3536 Ring, Snap, Head 1
12 363-3210 O-Ring, .139" x 4.359" x 4.637" 1
13 9-1849 Drive Assy., Quarter Circle, 691 (Includes Item 14) 1
13 9-1850 Drive Assy., Half Circle, 692 (Includes Item 14) 1
13 3-3585 Drive Assy., Full Circle, 694 (Includes Item 14) 1
13 35-5123 Drive Assy., Full Circle, 696, 2-Speed, 60°-120° (Includes Item 14) 1
13 89-8145 Drive Assy., 150° (Includes Item 14) 1
13 89-8146 Drive Assy., 165° (Includes Item 14) 1
13 89-8147 Drive Assy., 195° (Includes Item 14) 1
13 89-8148 Drive Assy., 210° (Includes Item 14) 1
14 9-2736 Collar, Spring 1
15 3-3586 Stator, 3/8", #90 1
15 3-3568 Stator, 7/16", #91 1
15 3-3555 Stator, 1/2", #92 1
16 3-3304 Ring, Snap, Valve 1
17 9-1479 Cylinder Assy., Hyd., NO, COM & Drain Valve 1
17 9-1486 Cylinder Assy., El & Hyd., NC 1
18 3-3311 Spring, Valve, COM 1
18 3-3323 Spring, Valve, EL, Hyd., NO, Hyd., NC & Drain Valve 1
19 89-1201 Piston Assy., Valve, Hyd., NO & COM 1
19 3-3355 Piston Assy., Valve, Drain 1
19 89-0937 Piston Assy., Valve, El, Hyd., NC 1
20 - - - - - - Body, 690 (See Service Items) 1
21 9-6002 Adapter, Tubing, Threaded, 1/4" 1
22 * 89-8157 Cap, Poly, 1/4" 1
23 * 900-40 Retainer, Tube 2
24 9-2624 Tubing, Poly 16.5" 1
25 See page 9 Pilot Valve Assy. 1
26 3-2696 Screw, Tap, #8 2
27 3-3581 Cover, Body, Rubber 1
SERVICE PARTS AND ASSEMBLIES
2-9647 Screw, Machine, 10-24 x 1-1/2" 1
3-2606 Adapter, Poly, 1/4", COM 1
3-3579 Body, Electric wo/VIH (Includes Items 20-23) 1
89-4861 Body, Electric w/VIH (Includes Items 16-23) 1
89-4873 Body, Electric w/VIH, 80 lb. PV (Includes Items 16-21 and 23-26) 1
89-1019 Body, Electric w/VIH, 100 lb. PV (Includes Items 16-21 and 23-26) 1
3-3558 Body, Hydraulic NO wo/VIH (Includes Items 20-23) 1
89-1038 Body, Hydraulic NO w/VIH (Includes Items 16-23) 1
9-1497 Body, COM wo/VIH (Includes Items 20, 21, 23 and 24) 1
89-4879 Body, COM w/VIH (Includes Items 16-21, 23 and 24) 1
89-0088 Pilot Valve Assy, 100 Lbs. w/Tubing 1
9-4079 Nozzle Assy., 690-90 (Includes Items 7-10) 1
9-4080 Nozzle Assy., 690-91 (Includes Items 7-10) 1
9-4081 Nozzle Assy., 690-92 (Includes Items 7-10) 1
9-4083 Nozzle Assy., 694-90 (Includes Items 7-10) 1
9-4084 Nozzle Assy., 694-91 (Includes Items 7-10) 1
9-4085 Nozzle Assy., 694-92 (Includes Items 7-10) 1
9-5747 Nozzle Base Assy., 690 1
9-2669 Retraction Assy., Spring (Includes Items 5, 6,11 & 14) 1
690-01 Kit, Cover, Rubber (Includes Items 1, 3 & 27) 1
9-7271 Adapter, Tubing, Oversized 1
* Order through Finished Goods Distribution System – Minneapolis
