Maintenance
34
Removing the Mower
1. Park the machine on a level surface, disengage
the blade control (PTO), set the parking brake,
and turn the ignition key to “OFF” to stop the
engine. Remove the key.
2. Move the height-of-cut lever (deck lift) into the
“D” notch.
3. Remove the height-of-cut lift assist spring from
the retaining bolt (Fig. 37), using the spring tool
provided with the machine. The spring is
between the frame and the right rear wheel.
1
2
3
1851

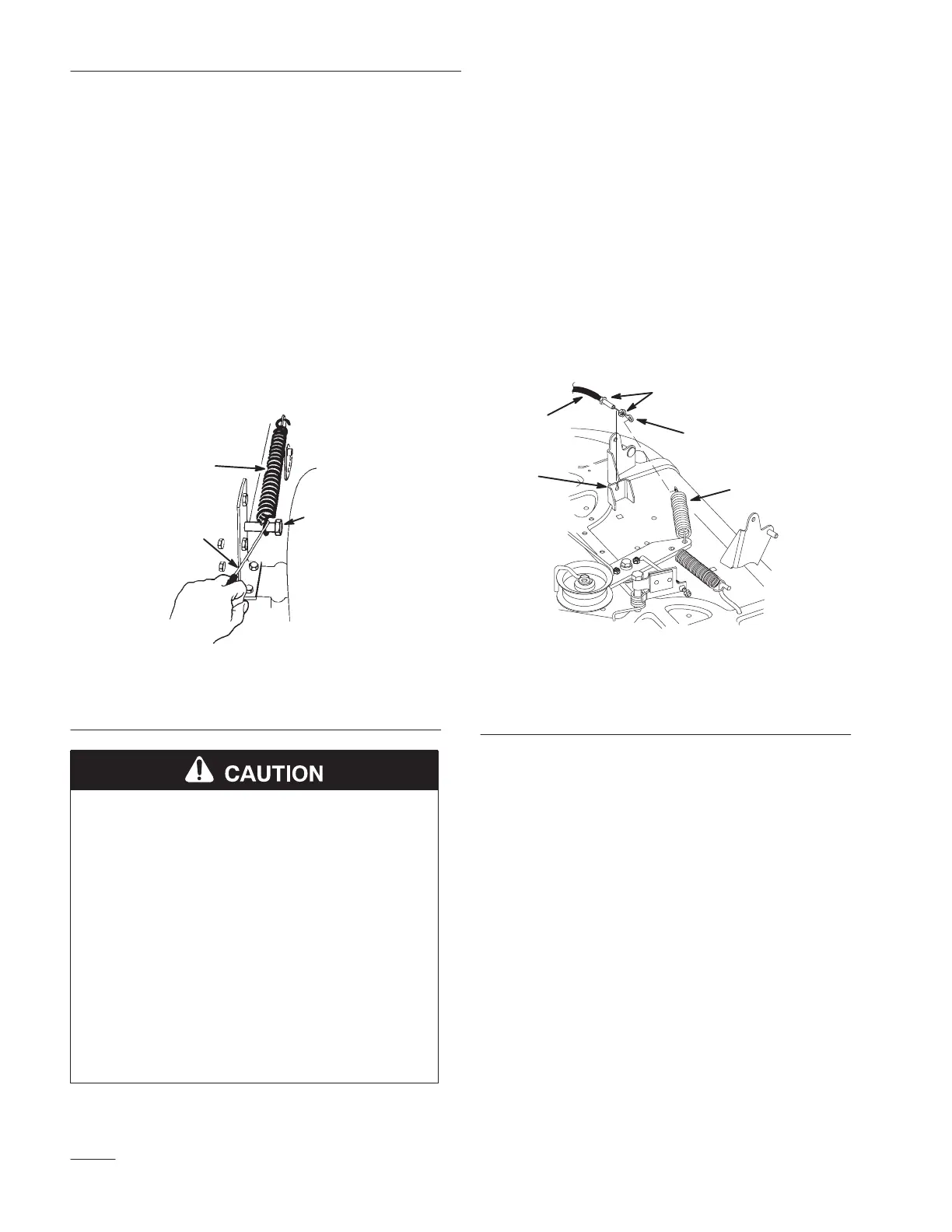

Figure 37
1. Spring
2. Bolt
3. Spring tool
POTENTIAL HAZARD
• The height-of-cut lever (deck lift) is
spring-tensioned.
WHAT CAN HAPPEN
• When the mower is being removed, this
spring-loaded mechanism could suddenly
release and injure you or someone else.
HOW TO AVOID THE HAZARD
• Move the height-of-cut lever (deck lift) to
the “D” position and remove the
height-of-cut lift assist spring to release the
spring tension.
4. Move the height-of-cut lever (deck lift) into the
“A” notch.
5. Unhook the blade control (PTO) cable ring end
from the idler spring (Fig. 38).
6. Remove jam nut from blade control (PTO) cable
at mounting bracket. Slide the cable from the
bracket (Fig. 38).
7. Move the cable out of the way and lay inside
frame rail so it cannot get caught in drive belts
or pulleys.
1
3
4
5
2384
2
Figure 38
1. Blade control (PTO) cable
2. Ring end
3. Idler spring
4. Jam nut
5. Mounting bracket
