Toro 71246 - Installing the Mower

31
m-4630
1
2
3

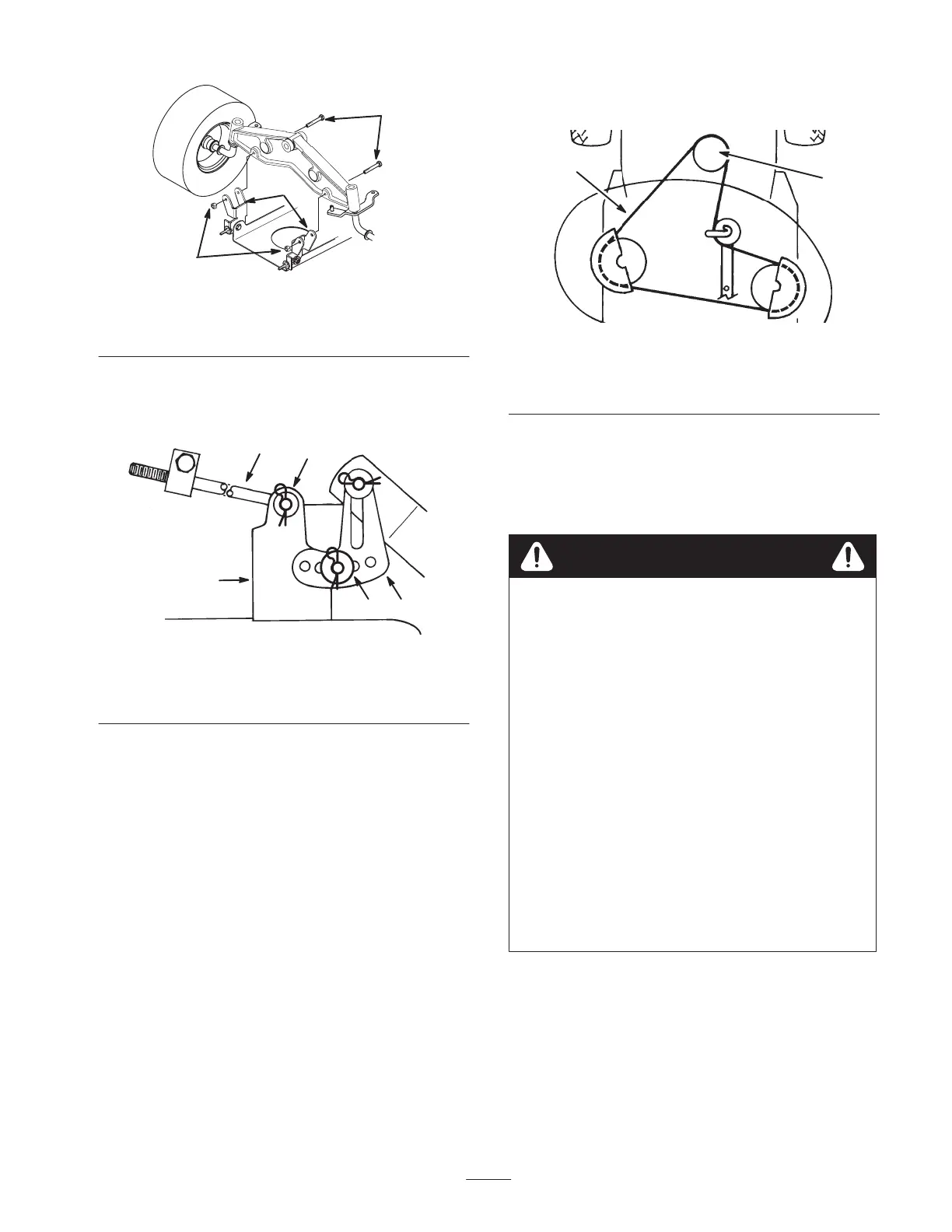

Figure 39
1. Pivot mount bracket
2. Bolt 5/16 x 2-1/2 in.
3. Locknut
9. Remove the hairpin cotter and washer from the end of
the long rod (Fig. 40). Slide the rod out of the mower
mount.
1805
3
2
1
1
4
Figure 40
1. Hairpin cotter and washer
2. Long rod
3. Leveling bracket
4. Mower mount
10. Remove the hairpin cotter and washer at the mower
leveling bracket (Fig. 40). Slide the bracket off of the
mounting pin. Install the washer and hairpin cotter for
storage.
11. Rotate the leveling bracket up toward the frame, and
hook the long rod into one of the holes to store. Secure
the long rod with the washer and hairpin cotter.
12. Repeat steps 9 through 11 on the opposite side of the
mower.
13. Move the height-of-cut lever into the “D” notch. Hook
the lift assist spring onto the retaining bolt for storage
(Fig. 37).
14. Remove the mower belt from the electric clutch pulley
(Fig. 41).
15. Remove the mower belt from the lower engine pulley
(Fig. 41).
1890
2
1
Figure 41
Top View
1. Mower belt 2. Electric clutch pulley
16. Turn the front wheels fully to the left. Slide the mower
out to the right to complete removal.
Installing the Mower
Danger
Without the grass deflector, discharge cover, or
complete grass catcher assembly mounted in place,
you and others are exposed to blade contact and
thrown debris. Contact with the rotating mower
blade(s) and thrown debris will cause injury or
death.
• Never remove the grass deflector from the
mower because the grass deflector routes
material down toward the turf. If the grass
deflector is ever damaged, replace it
immediately.
• Never put your hands or feet under the mower.
• Never try to clear the discharge area or mower
blades unless you move the power take off
(PTO) to Off and rotate the ignition key to Off.
Also remove the key and pull the wire off of the
spark plug(s).
1. Park the machine on a level surface, disengage the
blade control (PTO), set the parking brake, and turn the
ignition key to Off to stop the engine. Remove the key.
2. Turn the front wheels fully to the left. Slide the mower
under the chassis from the right side.
3. Install the mower belt onto the lower engine pulley
(Fig. 41).
