POTENTIAL HAZARD
• Rotating shaft or cooling fan can cause
injury.
WHAT CAN HAPPEN
• Fingers, hands, feet, hair, etc. can get
caught by shaft or fan.
• Loose clothing can get caught by shaft.
HOW TO AVOID THE HAZARD
• Do not operate the tractor without the drive
shaft cover in place.
• Keep hands and arms clear of rotating
shaft or fan.

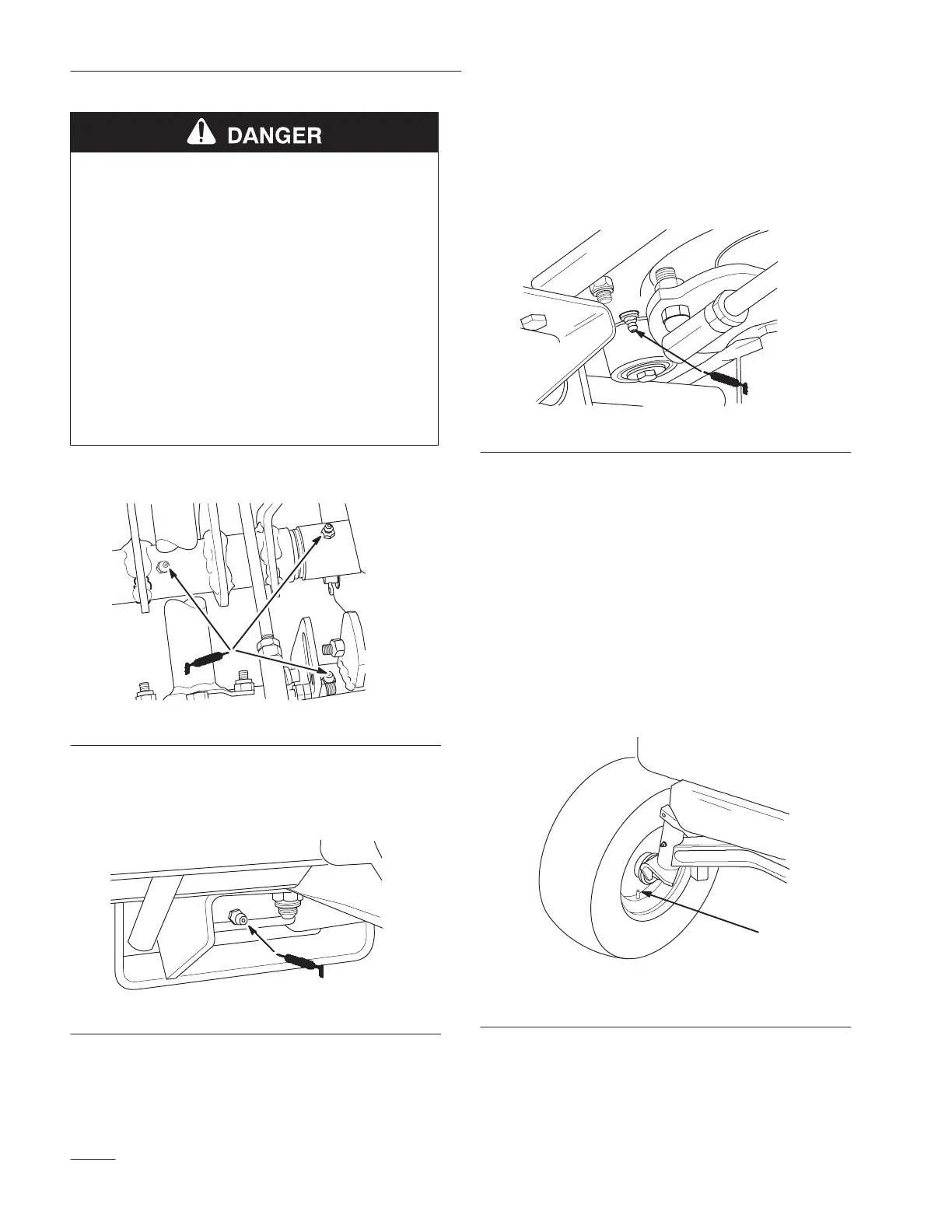

4. Lubricate the three grease fittings (Fig. 32)
m–3419
Figure 32
5. Replace and secure the cover.
6. Grease the fitting on the brake pedal (Fig. 33).
m–3420
Figure 33
Manual Steering Models
Put one pump of grease into the steering housing
(from underneath the frame) (Fig. NO TAG) every 50
hours.
m–3409
Figure 34
Tire Pressure
Service Interval/Specification
Maintain the air pressure in the front and rear tires as
specified. Check the pressure at the valve stem after
every 25 operating hours or monthly, whichever
occurs first (Fig. 35). Check the tires when they are
cold to get the most accurate pressure reading.
Pressure: 20 psi (138 kPa) front and rear
m–3319
1
Figure 35
1. Valve stem
