Maintenance
33
m–3365
1
2
3
4

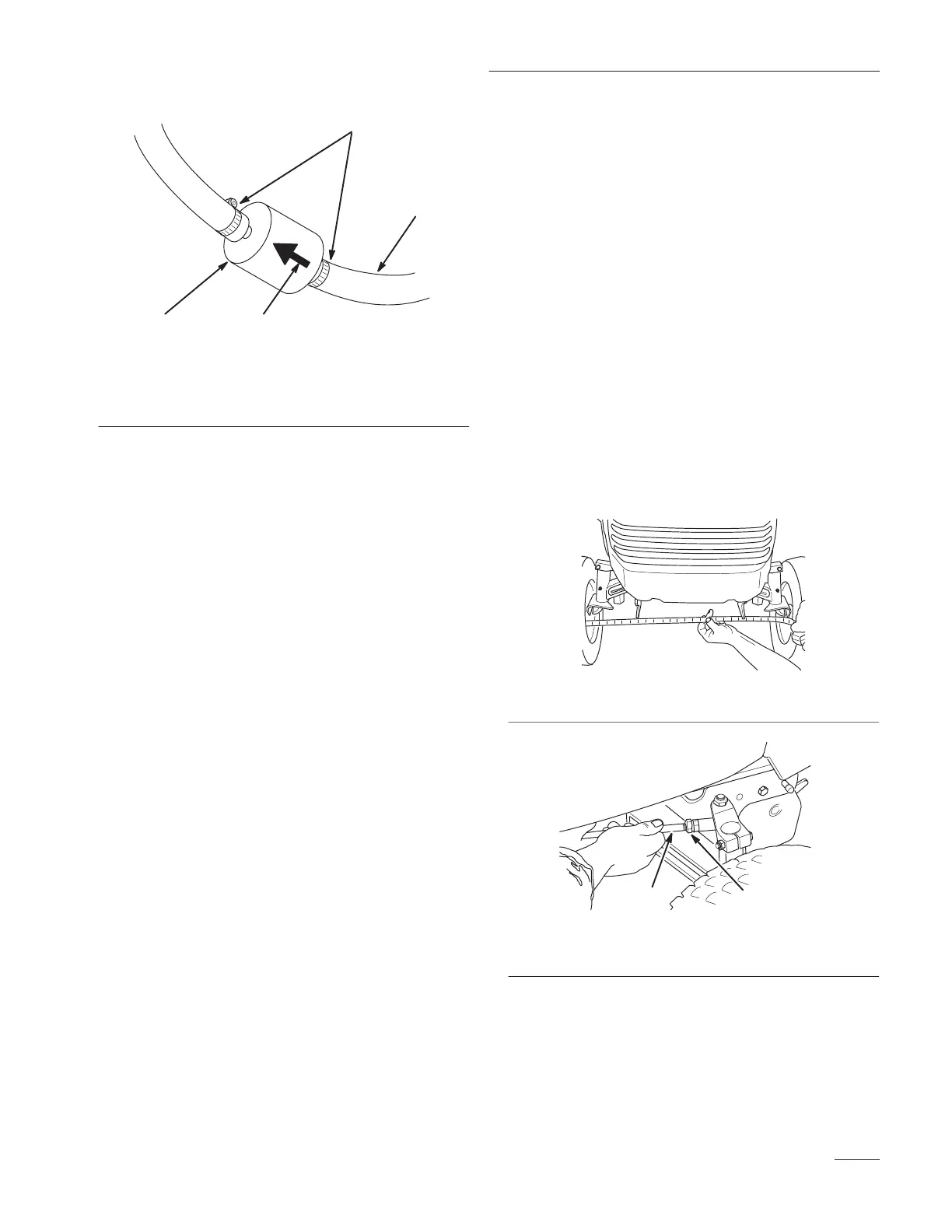

Figure 40
1. Hose clamp
2. Fuel line
3. Filter
4. Flow direction arrow
6. Install a new filter and move the hose clamps
close to the filter. Make sure the flow direction
arrow points toward the engine.
7. Open the fuel shut-off valve at the fuel tank (Fig.
38 & 39).
8. Replace the side panels and close the hood.
Front Wheel Toe-In
Service Interval/Specification
Maintaining correct front wheel toe–in is important
for safety, Smart Turn Steering operation, and ease
of use. If uneven tire wear, lawn scuffing, or hard
steering develop, adjustment may be required. Check
the toe-in after every 100 operating hours or once a
year, whichever occurs first (Fig. 41).
Maintain the following specification: 1/8–1/4 inch
(3.5–6.5 mm) toe-in on the front wheels.
Measuring Toe-In
1. Disengage the power take off (PTO), set the
parking brake, lower the attachment lift, and turn
the ignition key to “STOP” to stop the engine.
Remove the ignition key.
2. Turn the wheels straight ahead.
3. Push the front of the tires out to remove normal
looseness in the linkage.
4. Measure the distance between both of the front
tires at spindle level (at the front and rear of the
wheels) (Fig. 41).
5. The front measurement should be 1/8” to 1/4” (3
to 6 mm) less than the rear measurement. If
adjustment is needed, follow the instructions in
Adjusting Toe–In, page 34.
m–3421
Figure 41
1
2
1
2
m–3397
Figure 42
1. Jam nut 2. Steering rod
