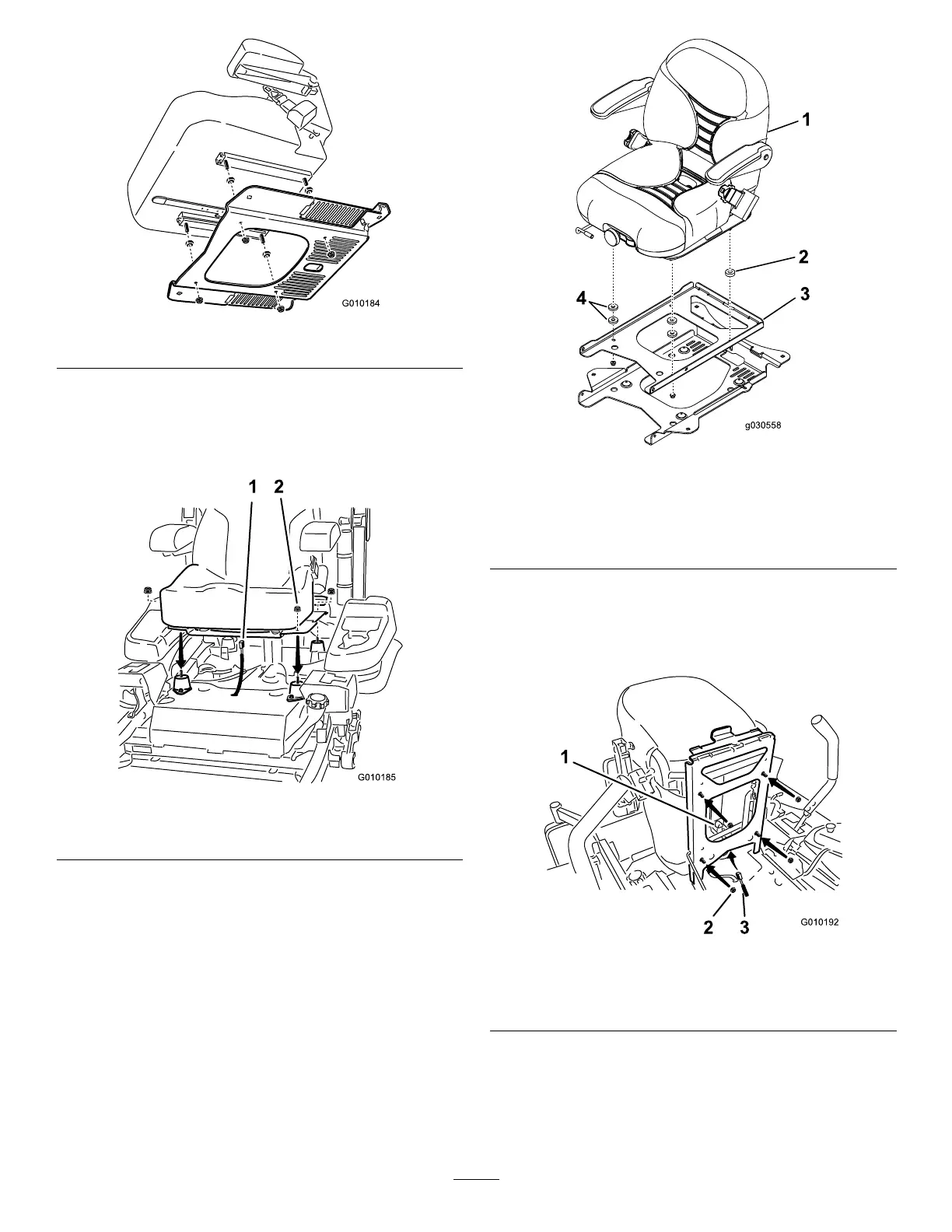

g010184

Figure12

4.Plugtheharnessconnectorintotheseatswitch

locatedundertheseattowardsthefront.

5.Installtheseattothemachineframewith4

angenuts(3/8inch).

g010185

Figure13

1.Harnessconnector2.Flangenuts

InstallingtheSeatonModelswith

aTiltingSeat

1.Tilttheseatframeup.

2.Fordeluxeseatsonly,installthespacersas

showninFigure14.

g030558

Figure14

Formachineswithadeluxeseatonly

1.Deluxeseat

3.Seatframe

2.Longspacer

4.Shortspacers

3.Installtheseattotheseatframewith4ange

nuts(3/8inch)asshowninFigure15.

4.Plugtheharnessconnectorintotheseatswitch

locatedundertheseattowardthefront.

g010192

Figure15

1.Seatswitch

3.Harnessconnector

2.Flangenuts
