Assembly
18
Hydraulic
System
Checking the Hydraulic Fluid
Check the hydraulic fluid level before engine is first
started.
Fluid Type: Mobil 1 15W–50 synthetic motor oil.
IMPORTANT: Use only oil specified. Other
fluids could cause system damage.
Hydraulic System Oil Capacity: 2.1 qt. (2.0 l)
1. Position machine on a level surface and stop the
engine and set the parking brake.
2. Clean area around filler neck of hydraulic tank
(Fig. 8).
3. Remove cap from filler neck and look inside to
check fluid level. Fluid level should be to the top
of baffle inside the tank (Fig. 8).
4. If level is low, add fluid to raise level to full.
5. Install cap on filler neck.
m–3657
2
1
3

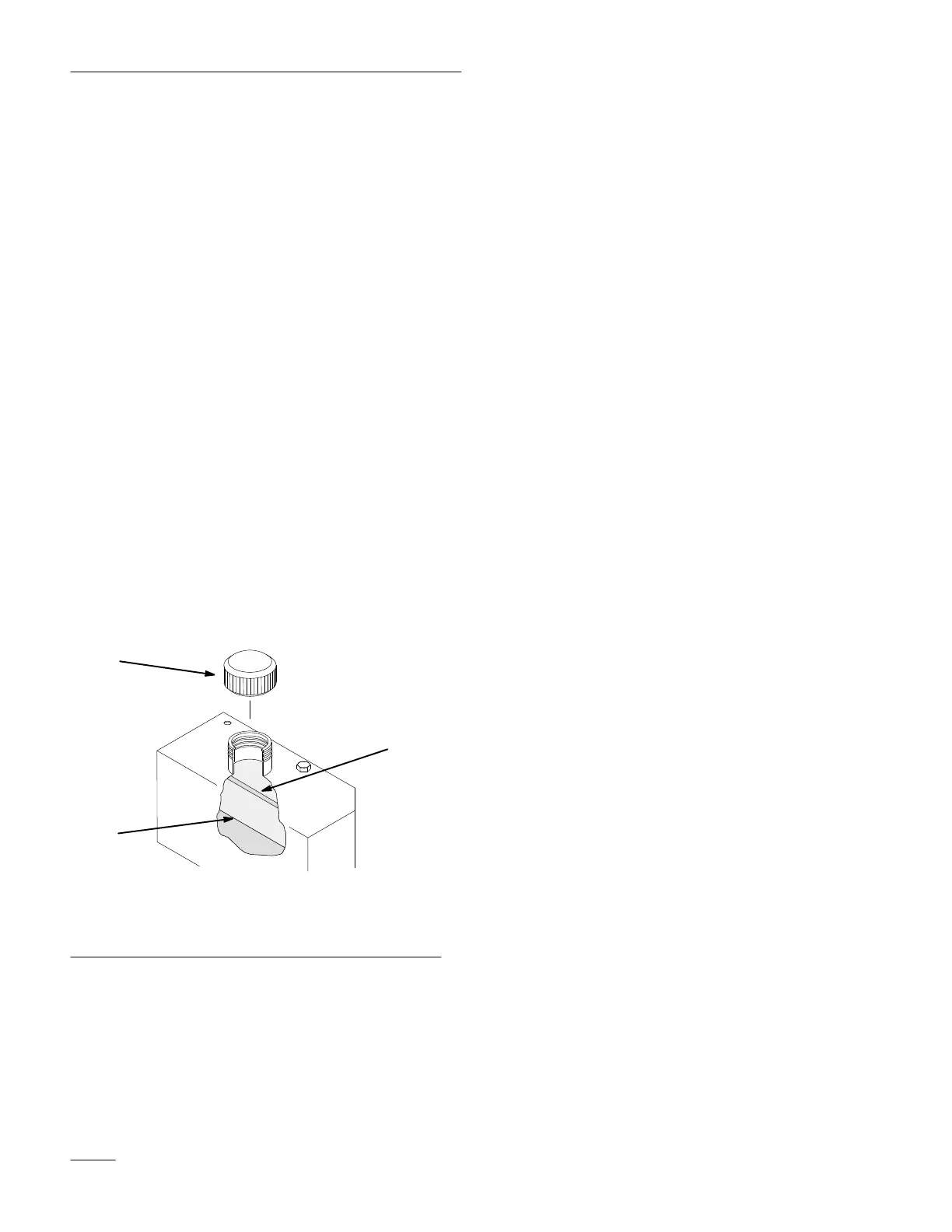

Figure 8
1. Cap
2. Baffle
3. Fluid
level-Full
