Maintenance
51
Fuse
Service Interval/Specification
The electrical system is protected by fuses. It requires
no maintenance: however, if a fuse blows check
component/circuit for malfunction or short.
Fuse: Main F1–20 amp, blade-type
Alternator F2–20 amp, blade-type
1. Raise the seat to gain access to fuse holder
(Fig. 48).
2. To replace fuses pull out on the fuse to remove it
(Fig. 48).
m–3653
2
1

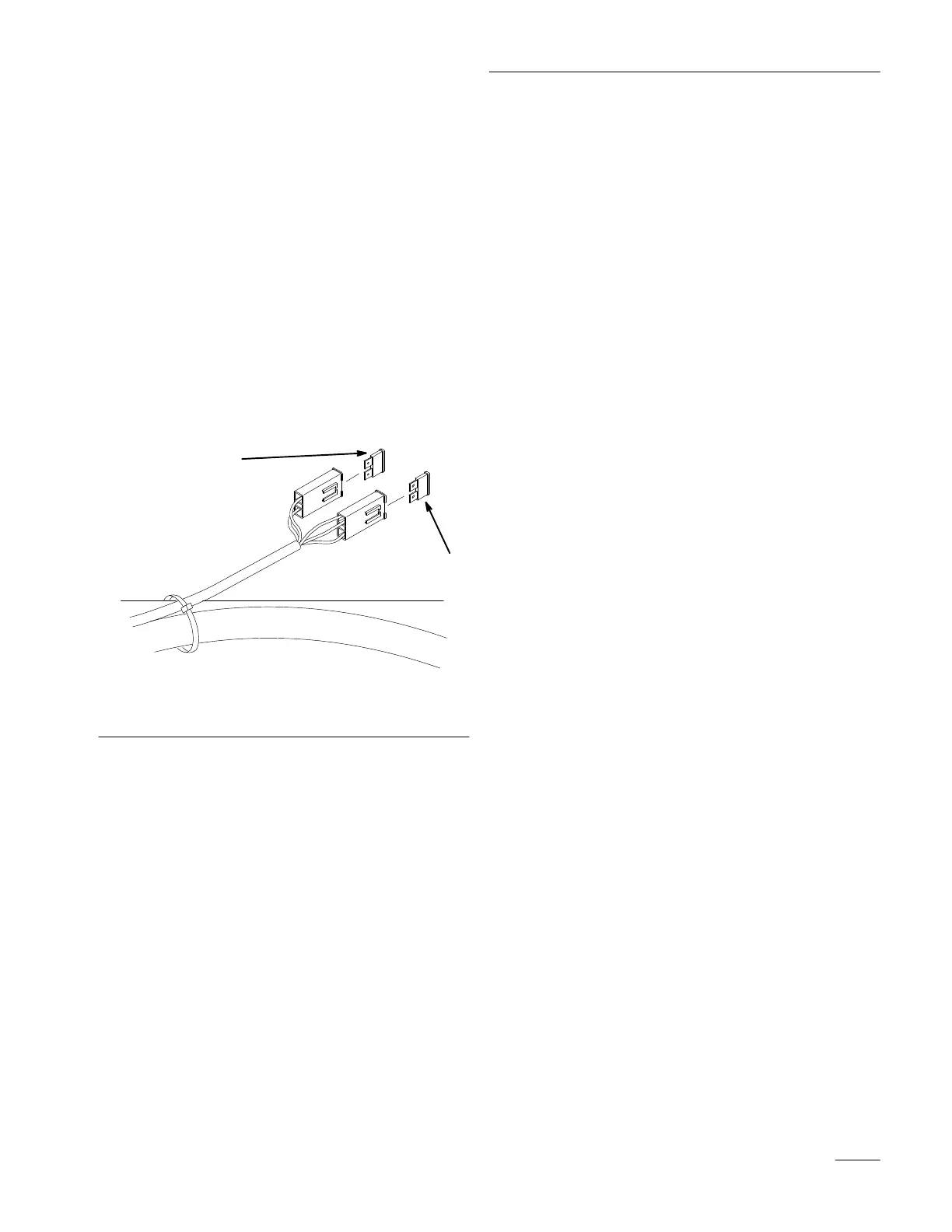

Figure 48
1. Main-30
amp
2.
Alternator-25 amp
