1. Remove the locknut, bolt, spring and spacer holding
the deflector to the pivot brackets (Fig. 75). Remove
damaged or worn grass deflector.
2. Place spacer and spring onto grass deflector. Place the
L end of spring behind deck edge.
Note: Make sure the L end of spring is installed behind
deck edge before installing the bolt as shown in figure 75.
3. Install bolt and nut. Place J hook end of spring around
grass deflector (Fig. 75).
Important The grass deflector must be able to lower
down into position. Lift the deflector up to test that it
lowers into the full down position.
6
1
8
7
3
7
2
m–6846
8
5
4

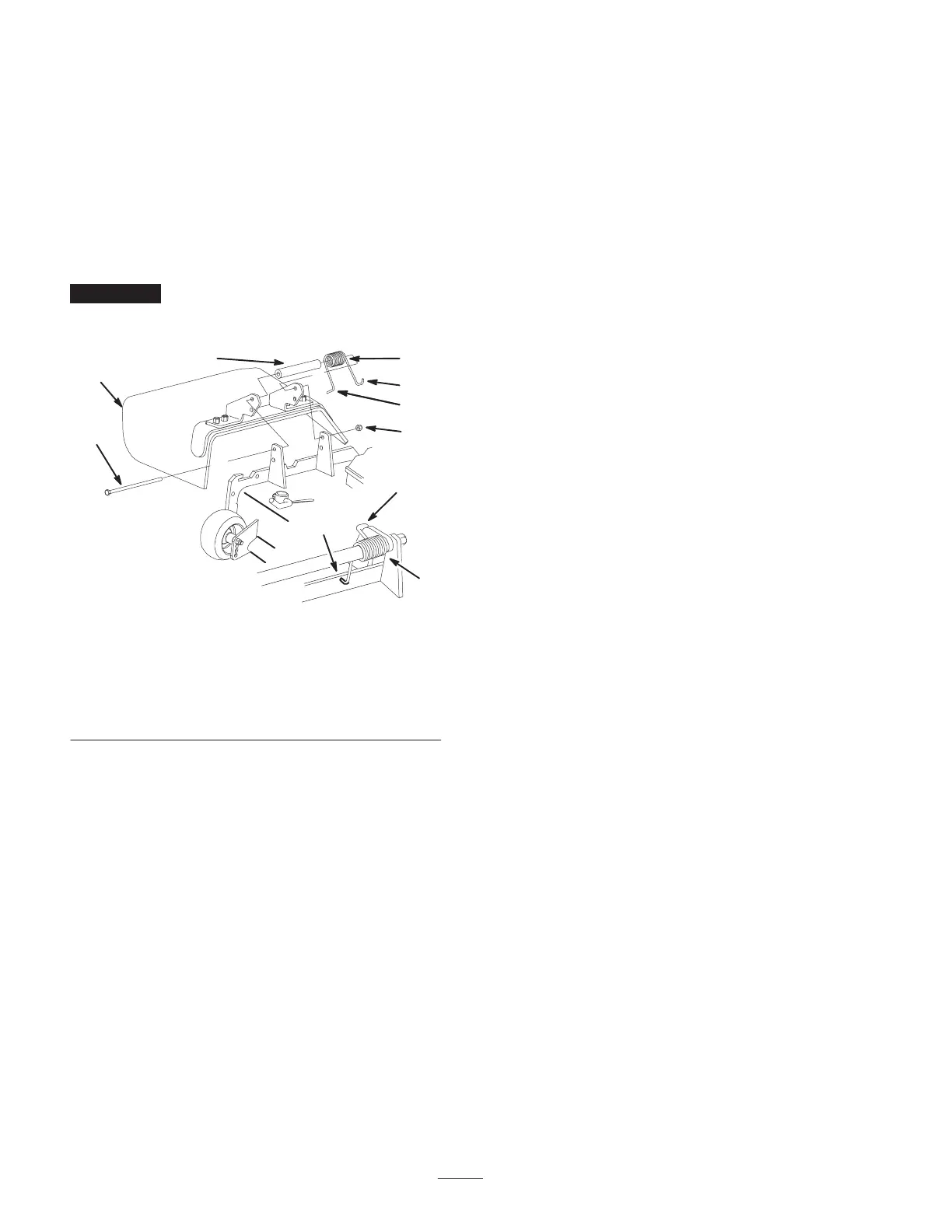

Figure 75
1. Bolt
2. Spacer
3. Locknut
4. Spring
5. Spring installed
6. Grass Deflector
7. L end of spring, place
behind deck edge before
installing bolt
8. J hook end of spring
