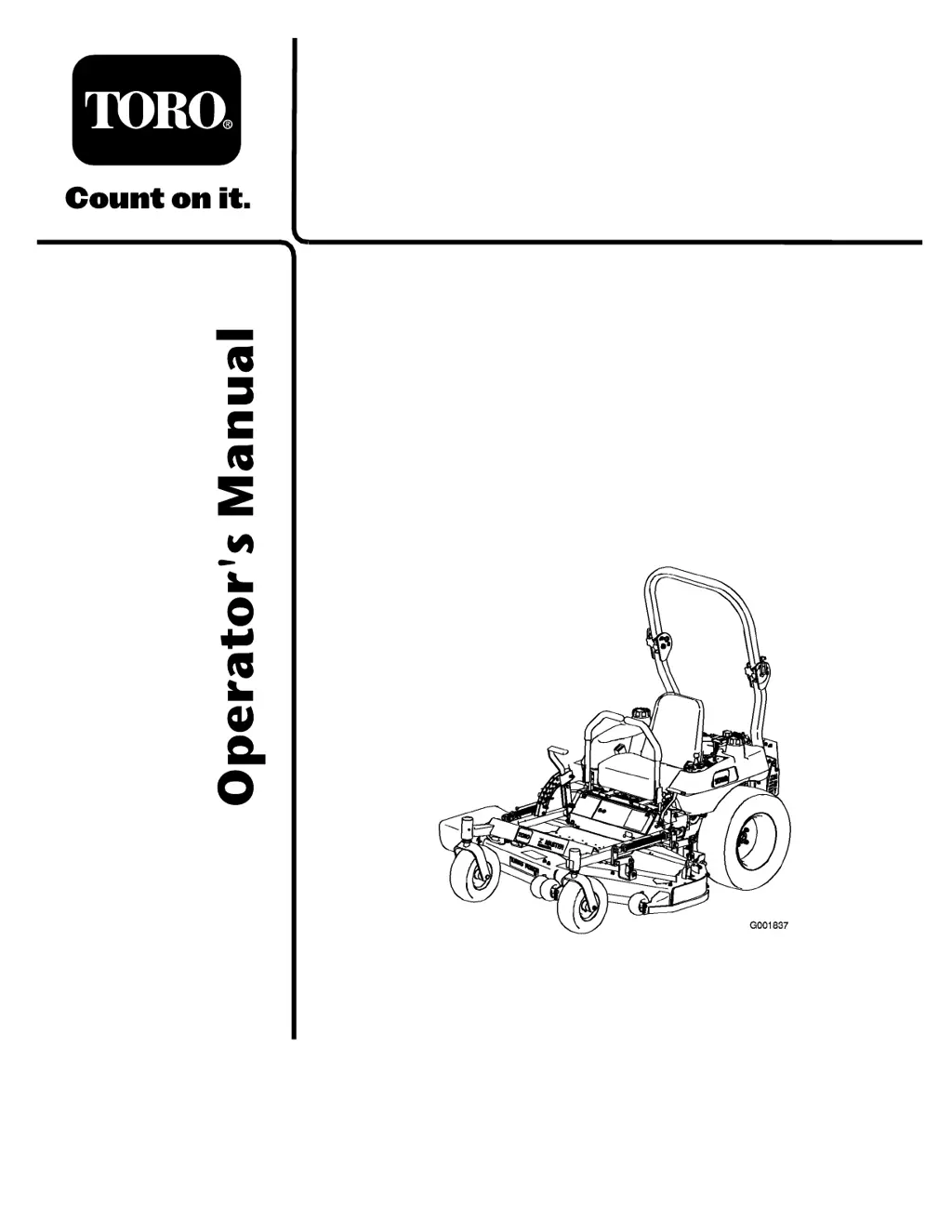

Form No. 3354-550 Rev B
Z400 Z Master® with 48in,
7-Gauge Side Discharge
Mower
Model No. 74412 —Serial No. 260000001 and Up
Register your product at www.Toro.com Original Instructions (EN)

Table of Contents

Questions and Answers

  • A
    Anne FullerAug 22, 2025
    How to fix uneven cutting height on my Toro Mower?
    • P
      Paul GoodAug 22, 2025
      If your Toro Mower has an uneven cutting height, consider these potential causes: * The blade(s) might not be sharp, so sharpen them. * The cutting blade(s) might be bent, so install new cutting blade(s). * The mower might not be level, so level it from side-to-side and front-to-rear. * The gage wheel might not be set correctly, so adjust the gage wheel height. * The underside of the mower might be dirty, so clean it. * The tire pressure might be incorrect, so adjust it. If these steps don't solve the problem, the blade spindle might be bent, in which case you should contact an Authorized Service Dealer.
  • S
    Shannon MosleyAug 25, 2025
    Why won't the starter crank on my Toro 74412?
    • H
      hhodgeAug 25, 2025
      If the starter on your Toro Ride-on mower isn't cranking, several issues could be the cause. First, ensure the blade control (PTO) is disengaged and the parking brake is set. Also, make sure you are seated properly. If these aren't the issue, check the battery; it may be dead and need charging. Corroded or loose electrical connections can also prevent starting, so inspect them for good contact. A blown fuse could also be the culprit, so replace it if necessary. If none of these steps work, the relay or switch may be defective, and you should contact an Authorized Service Dealer.
  • D
    dylan07Aug 26, 2025
    What to do if my Toro 74412 engine will not start?
    • P
      Paige VillegasAug 27, 2025
      If your Toro Ride-on mower engine won't start, starts with difficulty, or stops running, the issue could stem from several causes. Begin by checking the fuel tank to ensure it's filled with fuel. A dirty air cleaner can also cause these problems, so clean or replace the air cleaner element. Also, inspect the fuel filter for dirt and replace it if necessary. If these steps don't resolve the issue, there might be dirt, water, or stale fuel in the fuel system, in which case you should contact an Authorized Service Dealer.
  • J
    Jordan Fields Jr.Aug 28, 2025
    Why is my Toro 74412 Ride-on mower cutting height uneven?
    • T
      thomasandradeAug 28, 2025
      If your Toro Ride-on mower is producing an uneven cutting height, several factors could be the cause. Start by sharpening the blades. If the cutting blades are bent, install new ones. Ensure the mower is level from side-to-side and front-to-rear. Clean the underside of the mower deck to remove any accumulated debris. Adjust the tire pressure to the correct level. If the issue persists, the blade spindle might be bent, and you should contact an Authorized Service Dealer.
  • R
    Robert RyanAug 29, 2025
    What to do if the blades on my Toro 74412 do not rotate?
    • H
      hebertstacyAug 30, 2025
      If the blades on your Toro Ride-on mower aren't rotating, start by checking the drive belt tension if the belt is worn, loose, or broken. If the drive belt is off the pulley, install it, ensuring the adjusting shafts and belt guides are correctly positioned. For a worn, loose, or broken deck belt, install a new one. If the deck belt is off the pulley, reinstall it and check the idler pulley, idler arm, and spring for correct position and function. Also, replace any broken or missing idler springs.
  • S
    Samantha NelsonAug 31, 2025
    What to do if my Toro Mower starter does not crank?
    • M
      Michelle BridgesAug 31, 2025
      If your Toro Mower's starter does not crank, it could be due to several reasons: * The blade control (PTO) might be engaged, so move it to the Disengaged position. * The parking brake might not be on, so set it. * You might not be seated, so sit on the seat. * The battery might be dead, so charge it. * Electrical connections might be corroded or loose, so check them for good contact. * A fuse might be blown, so replace it. If none of these steps resolve the issue, the relay or switch might be defective, in which case you should contact an Authorized Service Dealer.
  • K
    Kyle SanchezSep 2, 2025
    Why does my Toro Mower engine lose power?
    • S
      Sandra WalterSep 2, 2025
      If your Toro Mower engine loses power, consider the following: * The engine load might be excessive, so reduce the ground speed. * The air cleaner might be dirty, so clean the air cleaner element. * The oil level in the crankcase might be low, so add oil. * Cooling fins and air passages under the engine blower housing might be plugged, so remove any obstructions. * Spark plugs might be pitted, fouled, or have an incorrect gap, so install new, correctly gapped spark plugs. * There might be dirt in the fuel filter, so replace it. If these steps don't solve the problem, it is possible that there is dirt, water, or stale fuel in the fuel system, in which case you should contact an Authorized Service Dealer.
  • K
    Kyle SullivanSep 4, 2025
    Why is my Toro Mower engine overheating?
    • M
      Makayla WilliamsSep 4, 2025
      If your Toro Mower engine overheats, it could be due to: * Excessive engine load, so reduce ground speed. * Low oil level in the crankcase, so add oil. * Blocked cooling fins and air passages under the engine blower housing, so remove any obstructions.
  • N
    nelsonrogerSep 6, 2025
    What causes the blades on my Toro Mower to not rotate?
    • L
      leahnorrisSep 6, 2025
      If your Toro Mower blades do not rotate, check these: * The mower belt might be off the pulley, so install the mower belt and check the adjusting plate, idler arm and spring, and belt guides for correct position. * The mower belt might be worn, loose, or broken, so install a new mower belt. If these steps don't solve the problem, the electric clutch might not engage or might be worn, in which case you should contact an Authorized Service Dealer.
  • K
    Karen BlairSep 8, 2025
    Why is my Toro Mower vibrating abnormally?
    • J
      Jennifer WolfeSep 8, 2025
      If your Toro Mower produces abnormal vibrations, check the following: * Engine mounting bolts might be loose, so tighten them. * A loose engine pulley, idler pulley, or blade pulley might be the cause, so tighten the appropriate pulley. * The cutting blade(s) might be bent or unbalanced, so install new cutting blade(s). * The blade mounting bolt might be loose, so tighten it. If these steps don't solve the problem, the engine pulley might be damaged or the blade spindle might be bent, in which case you should contact an Authorized Service Dealer.

Summary

Introduction

Safety

Covers potential hazards, safe operating practices, and emergency procedures.

Safety

Safe Operating Practices

Essential guidelines for safe machine operation, including training and preparation.

Slope Operation

Specific safety considerations and techniques for operating the mower on slopes.

Using the Rollover Protection System (ROPS)

Instructions on the proper use and engagement of the Rollover Protection System.

Maintenance and Storage

General Maintenance Precautions

General safety advice and preparation steps before performing maintenance or storing the machine.

Slope Chart

Safety and Instructional Decals

Service Aid and Belt Routing

Product Overview

Controls

Identifies and explains the location and function of machine controls.

Hour Meter

Explains the function of the hour meter for tracking operating time.

Fuel Shutoff Valve

Details the location and use of the fuel shutoff valve for storage and transport.

Operation

Adding Fuel

Provides instructions for safely adding unleaded regular gasoline to the fuel tank.

Fuel Stabilizer;Conditioner

Explains the benefits and use of fuel stabilizer for storage and engine health.

Checking the Engine Oil Level

Rollover Protection System (ROPS) Operation

Think Safety First

Operating the Parking Brake

Starting and Stopping the Engine

Starting the Engine

Step-by-step guide for safely starting the mower's engine.

Stopping the Engine

Procedure for properly shutting down the mower's engine.

Operating the Power Take Off (PTO)

Engaging the PTO

Instructions on how to safely engage the mower blades and powered attachments.

Disengaging the PTO

Instructions on how to safely disengage the mower blades and powered attachments.

The Safety Interlock System

Testing the Safety Interlock System

Procedure to test the safety interlock system for proper functioning before operation.

Driving Forward or Backward

Driving Forward

Instructions for safely moving the machine forward using the motion control levers.

Driving Backward

Instructions for safely moving the machine backward using the motion control levers.

Stopping the Machine

Adjusting the Height-of-Cut

Adjusting the Anti-Scalp Rollers

Positioning the Seat

Unlatching the Seat

Pushing the Machine by Hand

Transporting Machines

Loading Machines

Operating Tips

Mowing Best Practices

Covers throttle settings, cutting height, mowing direction, intervals, and speed for optimal results.

Blade Care and Cleaning

Guidance on blade maintenance, cleaning the mower underside, and proper stopping techniques.

Maintenance

Recommended Maintenance Schedule(s)

Provides a detailed schedule of maintenance tasks based on operating hours.

Lubrication

Greasing Procedures

Covers general greasing, front caster pivots, and mower deck/belt idler lubrication.

Light Oil Lubrication Points

Identifies components requiring light oil or spray lubrication as per schedule.

Engine Maintenance

Air Cleaner Service

Instructions for servicing foam and paper air cleaner elements, including removal and installation.

Engine Oil Service

Procedure for changing engine oil, including checking level and replacing oil filter.

Servicing the Spark Plugs

Fuel System Maintenance

Replacing the Fuel Filter

Procedure for replacing the fuel filter after 200 operating hours or yearly.

Servicing the Fuel Tank

Guidelines for draining the fuel tank and general fuel tank maintenance.

Electrical System Maintenance

Battery Service and Charging

Detailed instructions for battery maintenance, removal, installation, and charging.

Fuse Service

Information on the electrical system fuses and how to replace them if blown.

Drive System Maintenance

Adjusting the Tracking

Procedure for adjusting the machine's tracking knob to ensure straight travel.

Checking the Tire Pressure

Checking the Wheel Hub Slotted Nut

Adjusting the Caster Pivot Bearing

Cooling System Maintenance

Cleaning the Air Intake Screen

Instructions for cleaning the air intake screen to ensure proper engine cooling.

Cleaning the Cooling System

Procedure for cleaning cooling fins and engine shrouds.

Brake Maintenance

Adjusting the Parking Brake

Steps to check and adjust the parking brake for proper engagement and performance.

Belt Maintenance

Inspecting Belts

Guidance on inspecting all belts for wear, damage, or burn marks.

Replacing the Mower Belt

Procedure for replacing a worn or damaged mower belt.

Replacing the Pump Drive Belt

Procedure for checking and replacing the pump drive belt for wear.

Controls System Maintenance

Adjusting the Push Arms

Procedure to adjust push arms to increase or decrease mower belt tension.

Adjusting the Control Handle Neutral Position

Steps to adjust control levers for proper alignment and easy movement into neutral.

Hydraulic System Maintenance

Checking Hydraulic Fluid Level

Instructions for checking the hydraulic fluid level under warm and cold conditions.

Replacing Hydraulic Filter and Oil

Procedure for changing the hydraulic fluid and filter according to the maintenance schedule.

Bleeding the Hydraulic System

Checking the Hydraulic Hoses

Setting Hydraulic Pump Neutral Position

Left-hand Pump Neutral Adjustment

Procedure to adjust the left-hand hydraulic pump for neutral wheel position.

Right-hand Pump Neutral Adjustment

Procedure to adjust the right-hand hydraulic pump for neutral wheel position.

Mower Deck Maintenance

Leveling the Mower at Three Positions

Instructions for leveling the mower deck side-to-side and front-to-rear.

Adjusting Front-to-Rear Mower Pitch

Procedure to adjust the mower's front-to-rear pitch for optimal cutting performance.

Adjusting the Compression Spring

Servicing the Cutting Blades

Blade Inspection and Service

Before Inspecting or Servicing Blades

Safety and preparation steps before inspecting or servicing mower blades.

Inspecting and Checking Blades

Procedure for inspecting blades for sharpness, wear, damage, and straightness.

Sharpening Blades

Instructions on how to sharpen mower blades to maintain sharpness and balance.

Installing Blades

Procedure for correctly installing mower blades onto the spindle shaft.

Replacing the Grass Deflector

Cleaning Under the Mower

Waste Disposal

Storage

Troubleshooting

Starter Does Not Crank

Troubleshooting steps for when the starter motor fails to engage or crank the engine.

Engine Starting and Running Issues

Addresses issues with the engine failing to start, starting hard, or stalling.

Engine Power Loss

Diagnoses and solutions for the engine experiencing a loss of power during operation.

Engine Overheating

Troubleshooting steps for an engine that is overheating during use.

Machine Drive Issues

Diagnoses and solutions for problems related to the machine not driving or moving.

Abnormal Vibration

Troubleshooting steps to identify and resolve abnormal vibrations during operation.

Uneven Cutting Height

Diagnoses and solutions for issues causing an uneven cut height on the lawn.

Blade Rotation Issues

Troubleshooting steps for when the mower blades fail to rotate or engage properly.

Schematics
