Toro 74418 - Controls

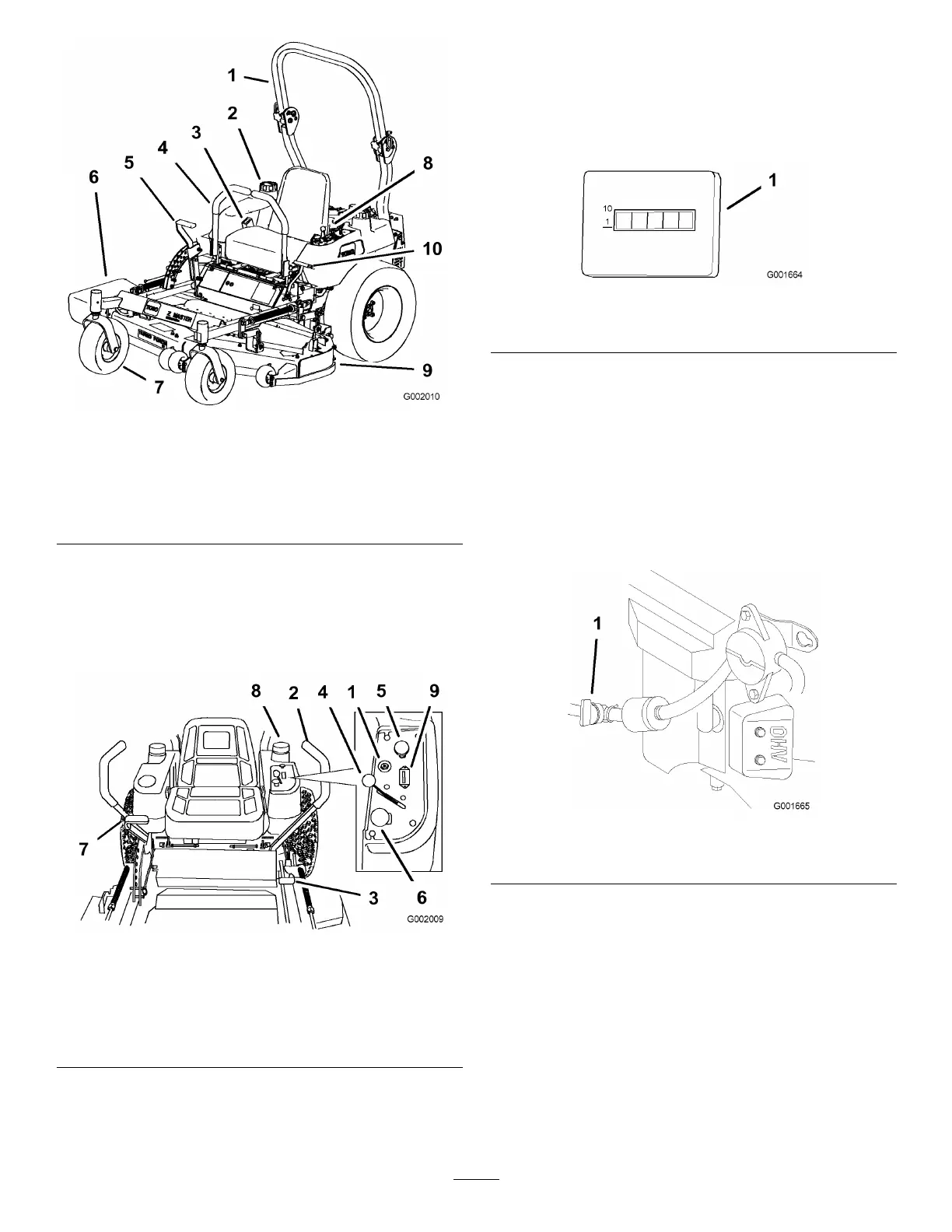

Figure3
1.Rollbar
6.Sidedischarge
2.Fuelcap(bothsides)
7.Frontcasterwheel
3.Seatbelt8.Controls
4.Motioncontrollever9.Mowerdeck
5.Height-of-cutlever
10.Parkingbrakelever
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure3andFigure4).
Figure4
1.Ignitionswitch
6.PTOSwitch
2.Motioncontrollever
7.Height-of-cutlever
3.Brakelever
8.Fuelcap(bothsides)
4.Throttlecontrol9.Hourmeter
5.Choke
UsingtheHourMeter
Thehourmeter(Figure5)recordsthenumberofhours
theenginehasoperated.Itoperateswhentheengine
isrunning.Usethesetimesforschedulingregular
maintenance.
Figure5
1.Hourmeter
UsingtheFuelShutoffValve
Themachinehas2fueltanks,oneontheleftsideand
theotherontherightside.Eachtankconnectstoa
checkvalveandthentoatee.Fromthereacommon
fuellineleadstotheengine(Figure6).
Closethefuelshutoffvalvebeforetransportingor
storingthemachine.
Figure6
1.Fuelshutoffvalve
11
