Toro 74441 - Greasing the Mower Deck and Belt Idlers

HowtoGrease
1.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Cleanthegreasettingswitharag.Makesureto
scrapeanypaintoffthefrontofthetting(s).
4.Connectagreaseguntothetting.Pumpgrease
intothettingsuntilgreasebeginstooozeoutof
thebearings.
5.Wipeupanyexcessgrease.
GreasingtheFrontCasterPivots
ServiceInterval:Yearly
Lubricatethefrontcasterpivotsonceayear.
1.Removethedustcapandadjustthecasterpivots.
Keepthedustcapoffuntilgreasingisdone.Referto
AdjustingtheCasterPivotBearinginDriveSystem
Maintenance,page34.
2.Removethehexplug.Threadagreasezerkintothe
hole.
3.Pumpgreaseintothezerkuntilitoozesoutaround
thetopbearing.
4.Removethegreasezerkinthehole.Installthehex
plugandcap.
WheretoAddGrease

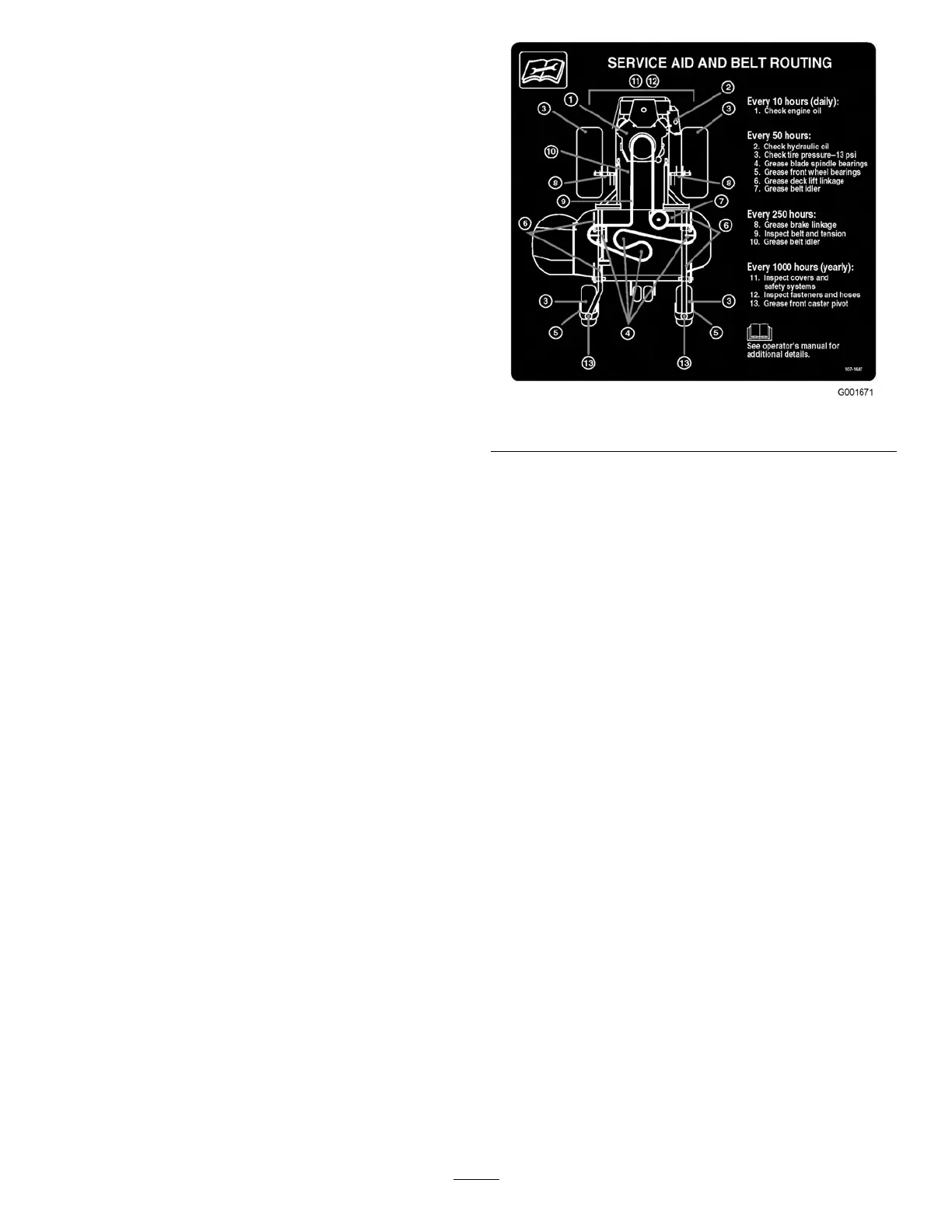

LubricatethegreasettingsasshownontheCheck
ServiceReferenceAiddecal(Figure30).
Figure30
WheretoAddLightOilorSpray
Lubrication
ServiceInterval:Every150hours
Lubricatethemachineinthefollowingareaswithspray
typelubricantorlightoil.Lubricateevery150hours.
•Seatswitchactuator.
•Brakehandlepivot.
•Brakerodbushings.
•Motioncontrolbronzebushings.
GreasingtheMowerDeckand
BeltIdlers
ServiceInterval:Every25hours
Every25hours
Every25hours
Every25hours
Themowerdeckmustbelubricatedweeklyorevery
25hours.GreasewithNo.2generalpurposelithium
baseormolybdenumbasegrease.
Important:Makesurecuttingunitspindlesare
fullofgreaseweekly.
1.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
