3.Removethebeltcovers.
4.Greasethethreespindlebearingsunderthepulleys
untilgreasecomesoutthelowerseals(Figure31).
5.Greasetheidlerarmonthemowerdeck(
Figure31).
6.Greasethettingsonthepusharms(Figure31).

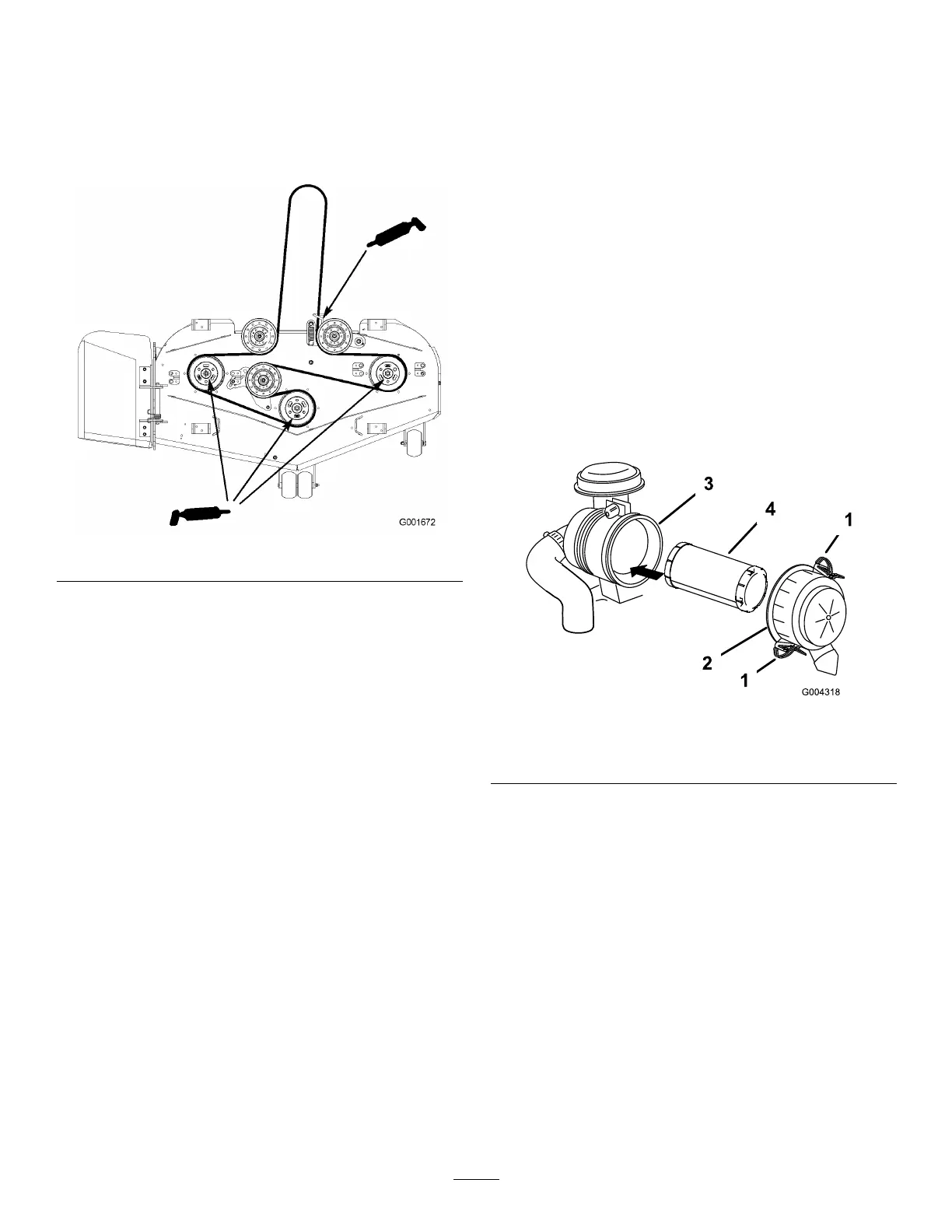

Figure31
EngineMaintenance
ServicingtheAirCleaner
Replacetheairlterevery200operatinghours.
Note:Servicetheltermorefrequentlyifoperating
conditionsareextremelydustyorsandy.
RemovingtheFilters
1.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Releasethelatchesontheaircleanerandpulltheair
cleanercoveroffoftheaircleanerbody(Figure32).
Figure32
1.Latches
3.Airlterbody
2.Aircleanercover
4.Primarylter
4.Cleantheinsideoftheaircleanercoverwith
compressedair.
5.Gentlyslidetheairlteroutoftheaircleanerbody
(Figure32).Avoidknockingthelterintotheside
ofthebody.
6.Inspecttheairlterfordamagebylookingintothe
lterwhileshiningabrightlightontheoutsideof
thelter.Holesinthelterwillappearasbright
spots.Ifthelterisdamageddiscardit.
ServicingtheAirFilter
ServiceInterval:Every200hours
Donotcleanthelter.Replaceitafter200operating
hours.
