Toro 74621 - Mower Operation Controls; Blade Control, Motion Levers, and Smart Speed; Fuel Window and Height-of-Cut

BladeControlSwitch(PowerTake-Off)
Thebladecontrolswitch,representedbyapower
take-off(PTO)symbol,engagesanddisengagespower
tothemowerblades(Figure5).
MotionControlLeversandPark
Position
Themotioncontrolleversarespeedsensitivecontrolsof
independentwheelmotors.Movingaleverforwardor
backwardturnsthewheelonthesamesideforwardorin
reverse;wheelspeedisproportionaltotheamountthe
leverismoved.Movethecontrolleversoutwardfrom
thecentertotheparkpositionandexitthemachine
(
Figure16).Alwayspositionthemotioncontrollevers
intotheparkpositionwhenyoustopthemachineor
leaveitunattended.
SmartSpeed™ControlSystemLever
TheSmartSpeed™ControlSystemlever,locatedbelow
theoperatingposition,givestheoperatorachoiceto
drivethemachineattwospeedranges,highandlow
(
Figure6).

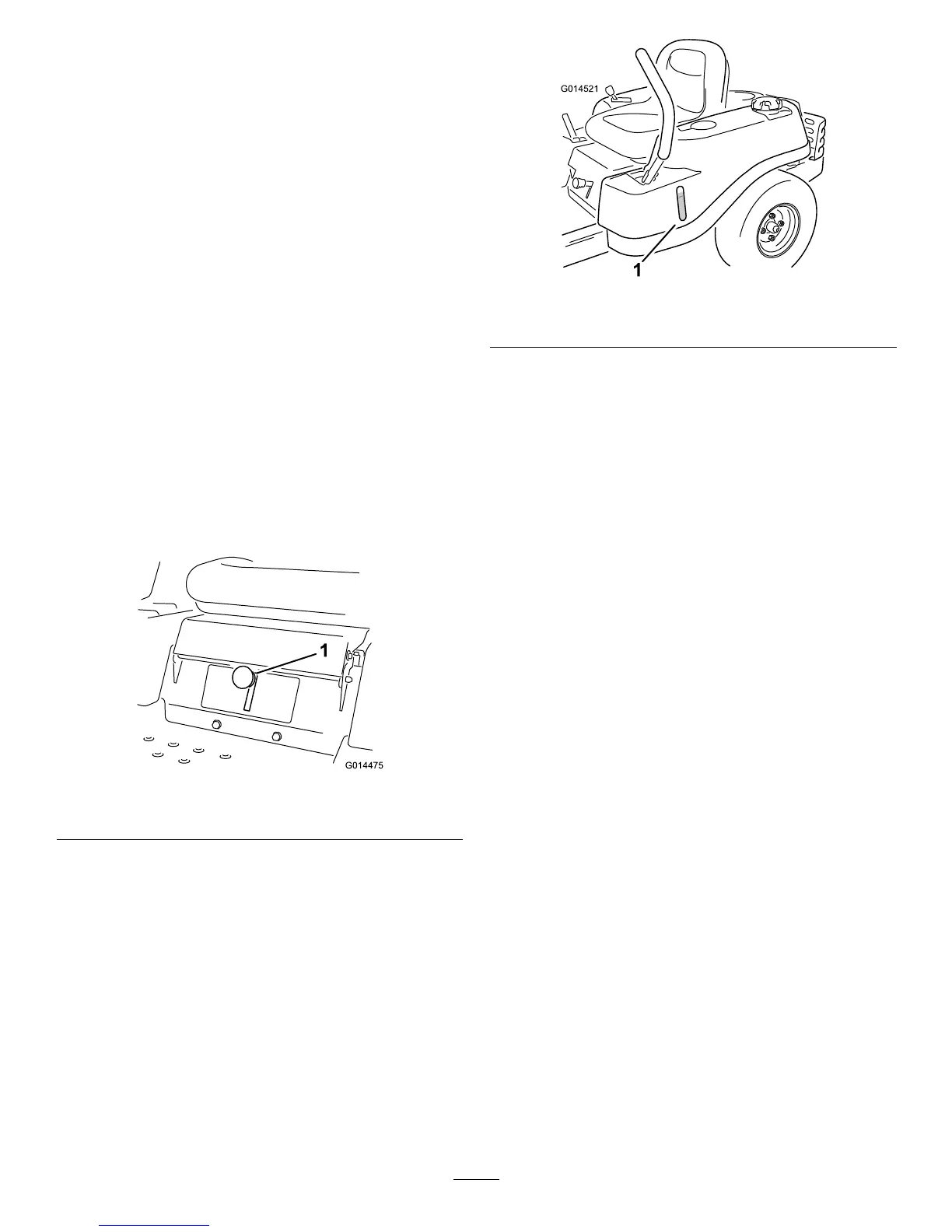

G014475
1
Figure6
1.Smartspeedlever
FuelWindow
Thefuelwindowlocatedonthelefthandsideofthe
machinecanbeusedtoverifythepresenceofgasoline
inthetank(Figure7).
G014521
1
Figure7
1.Fuelpresencewindow
Height-of-CutLever
Theheightofcutleverallowstheoperatortolower
andraisethedeckfromtheseatedposition.Whenthe
leverismovedup,towardtheoperatorthedeckisraised
fromthegroundandwhenmoveddown,awayfromthe
operatoritisloweredtowardtheground.Onlyadjust
theheightofcutwhilemachineisnotmoving(
Figure4).
12
