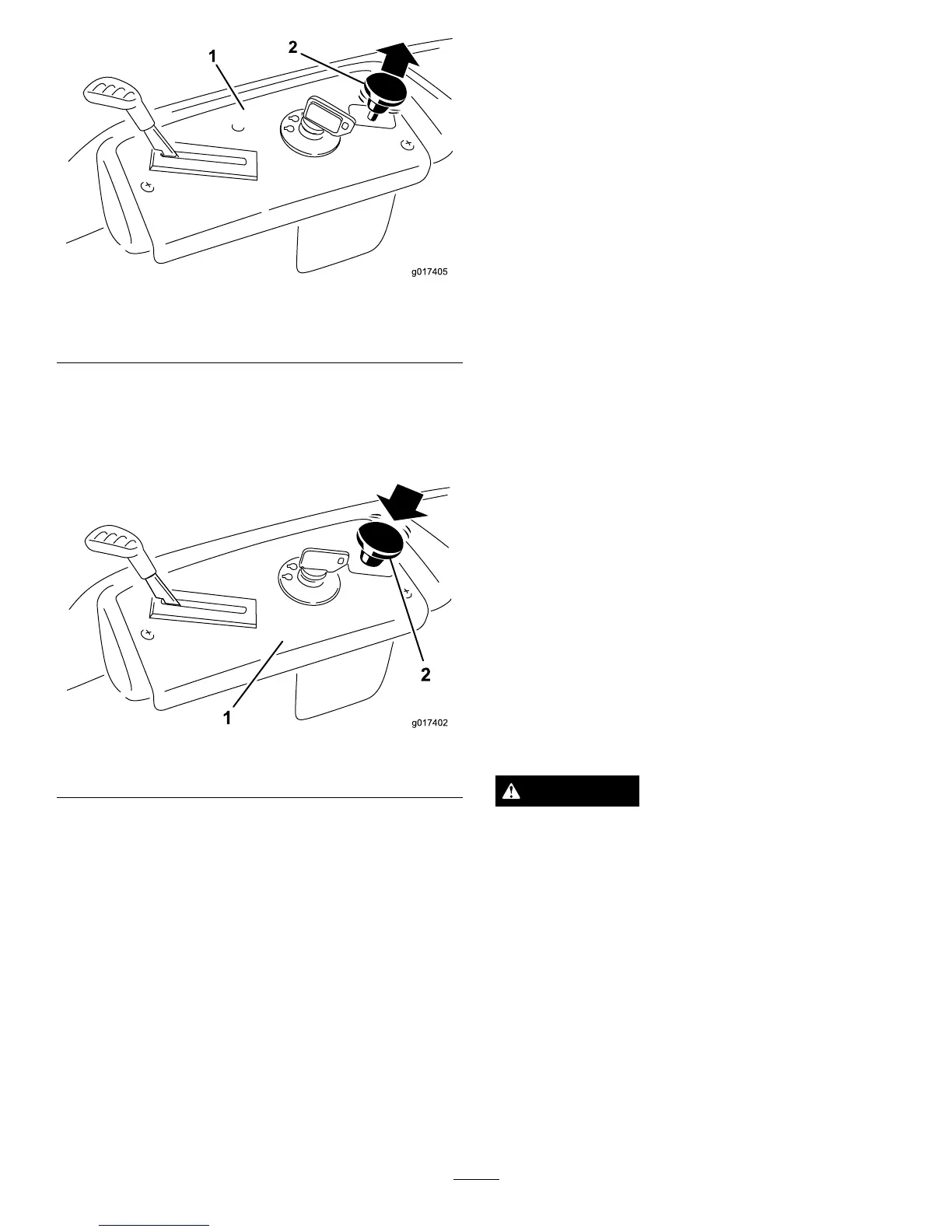

Figure14
1.Controlpanel2.Bladecontrolswitch—On
position
DisengagingtheBlades
Pushdownonthebladecontrolswitchtomoveitto
theOffpositionanddisengagetheblades(Figure15).
Figure15
1.Controlpanel2.Bladecontrolswitch—Off
TestingtheSafetyInterlock
System
Testthesafetyinterlocksystembeforeyouusethe
machineeachtime.Ifthesafetysystemdoesnot
operateasdescribedbelow,haveanAuthorizedService
Dealerrepairthesafetysystemimmediately.
1.Whilesittingontheseat,withthecontrolleversin
parkposition,andmovethebladecontrolswitchto
On.Trystartingtheengine;theengineshouldnot
crank.
2.Whilesittingontheseat,movethebladecontrol
switchtoOff.Moveeithermotioncontrollever
tothecenter,unlockedposition.Trystartingthe
engine;theengineshouldnotcrank.Repeatwith
theothermotioncontrollever.
3.Whilesittingontheseat,movethebladecontrol
switchtoOff,andlockthemotioncontrolleversin
theparkposition.Starttheengine.Whiletheengine
isrunning,engagethebladecontrolswitch,andrise
slightlyfromtheseat;theengineshouldstop.
4.Whilesittingontheseat,movethebladecontrol
switchtoOff,andlockthemotioncontrollevers
intheparkposition.Starttheengine.Whilethe
engineisrunning,movethemotioncontrollevers
tothecenter,unlockedposition,engagetheblade
controlswitch,andriseslightlyfromtheseat;the
engineshouldstop.
StoppingtheEngine
1.Disengagethebladesbymovingthebladecontrol
switchtoOff(Figure15).
2.MovethethrottlelevertoFast(Figure13).
3.TurntheignitionkeytoOff(Figure12)andremove
thekey.
Driving
Drivingthemachinebenetsfromanunderstandingof
whatzeroturnradiusmowermeans.Thedrivewheels
turnindependently,poweredbyhydraulicmotorson
eachaxle;henceonesidecanturninreversewhile
theotherturnsforwardcausingthemachinetospin
ratherthanturn.Thisvastlyimprovesthemachine
maneuverabilitybutmayrequiresomeadjustmentif
theoperatorisunfamiliar.
WARNING
Themachinecanspinveryrapidly.Theoperator
maylosecontrolofthemachineandcausepersonal
injuryordamagetothemachine.
•Usecautionwhenmakingturns.
•Slowthemachinedownbeforemakingsharp
turns.
Thethrottlecontrolregulatestheenginespeedas
measuredinrpm(revolutionsperminute).Placingthe
throttlecontrolintheFastpositioncanbebestfor
performance.Formostapplications,operatinginthe
fullthrottlepositionisdesirable.
17
