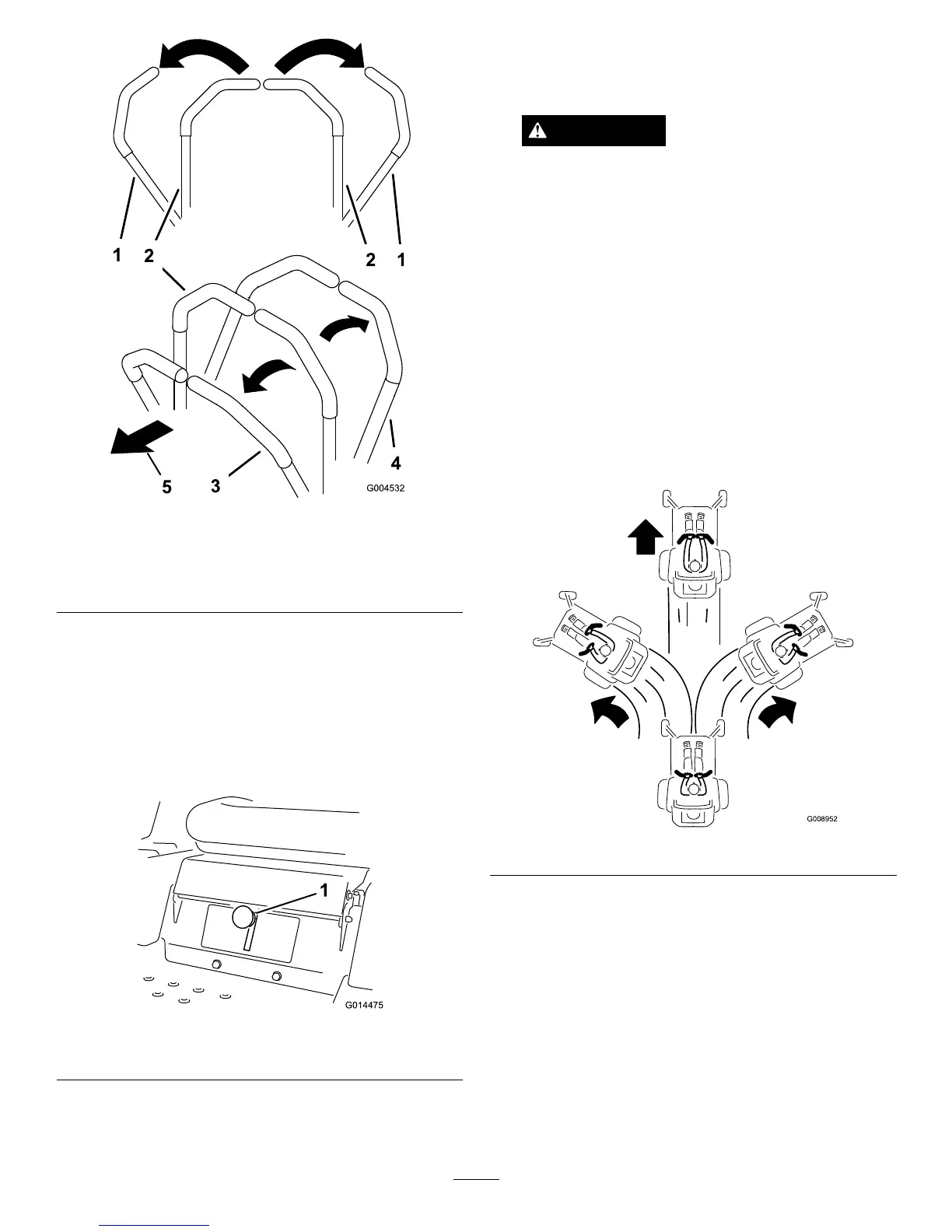

Figure16
1.Park(brake)position
4.Backward
2.Centerunlockposition5.Frontofmachine
3.Forward
UsingtheSmartSpeed™Control
System
TheSmartSpeed™ControlSystemlever,located
belowtheoperatingposition(Figure17),givesthe
operatorachoicetodrivethemachineattwoground
speedranges,highandlow .
G014475
1
Figure17
1.Smartspeedlever
Tochangespeeds:
1.Movethemotioncontrolleverstoneutraland
outwardtotheparkposition;disengagetheblade
controlswitch.
WARNING
Removingyourhandsfromthemotioncontrol
leverswhilethemachineisinmotioncanresult
inalossofcontrolcausingharmtoyouor
bystanders.
Alwaysstopthemachineandmovethemotion
controlleverstotheparkpositionbefore
adjustingtheSmartSpeed™ControlSystem.
2.Adjustthelevertothedesiredposition.
Forward
1.Movetheleverstothecenter,unlockedposition.
2.Togoforward,slowlypushthemotioncontrol
leversforward(
Figure16).
G008952
Figure18
Togostraight,applyequalpressuretobothmotion
controllevers(Figure16).
Toturn,releasepressureonthemotioncontrollever
towardthedirectionyouwanttoturn(Figure16).
Thefartheryoumovethemotioncontrolleversin
eitherdirection,thefasterthemachinewillmovein
thatdirection.
Tostop,pullthemotioncontrolleverstoneutral.
