Toro 74629 - Operating the Blades; Testing the Safety-Interlock System

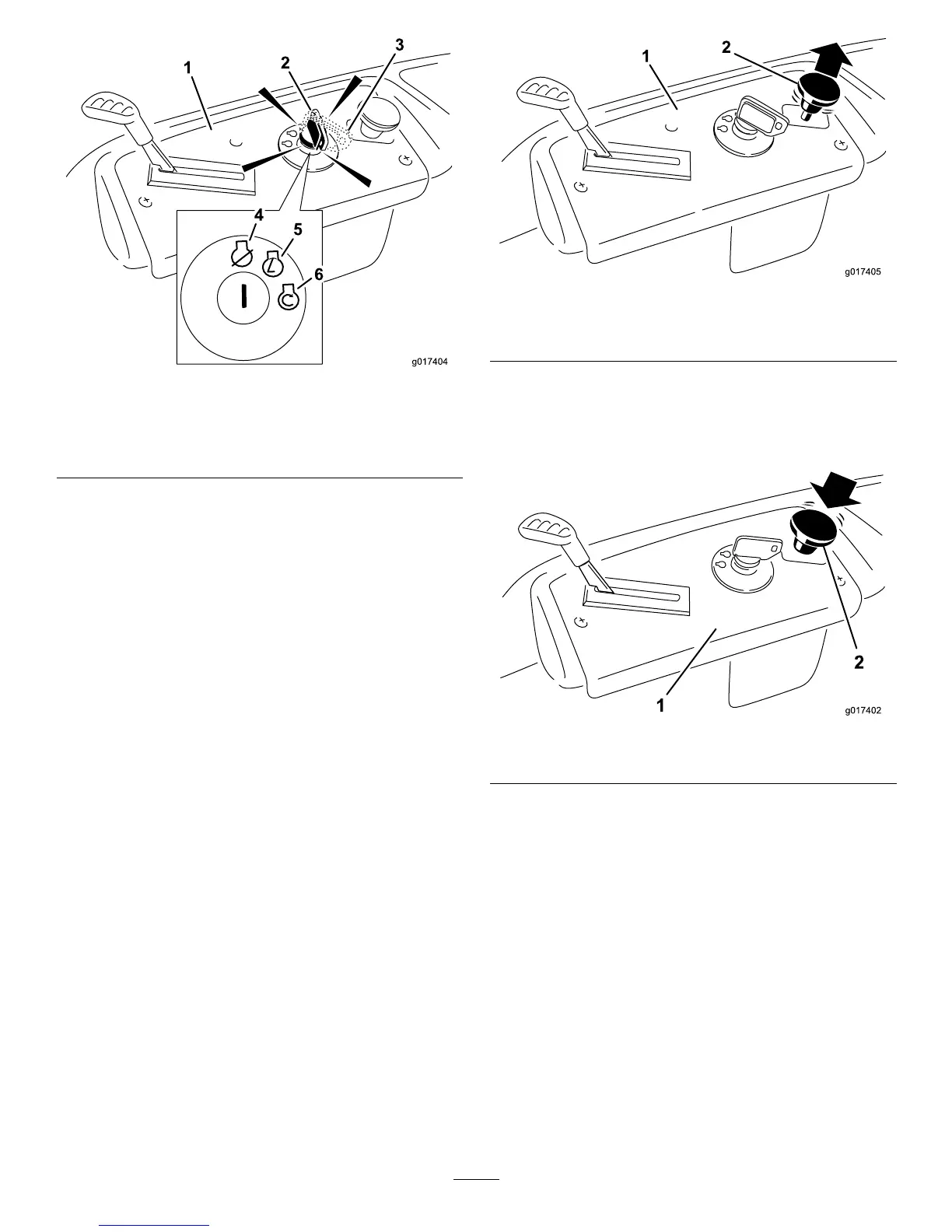

Figure14
1.Controlpanel4.Off
2.Ignitionkey—runposition5.Run
3.Ignitionkey—startposition
6.Start
5.Aftertheenginestarts,movethethrottlelevertoFast
(Figure13).
Note:Iftheenginestallsorhesitates,movethe
throttleleverbacktoChokeforafewseconds.Repeat
thisasrequired.
OperatingtheBlades
Theblade-controlswitch,representedbyapowertake-off
(PTO)symbol,engagesanddisengagespowertothemower
blades.Thisswitchcontrolspowertoanyattachmentsthat
drawpowerfromtheengine,includingthemowerdeckand
cuttingblades.
EngagingtheBlades
Important:Donotengagethebladeswhenparkedin
tallgrass;beltorclutchdamagecanoccur.
1.Releasethepressureonthemotion-controllevers,and
placethemachineinneutral.
2.MovethethrottletotheFastposition.
Note:Alwaysengagethebladeswiththethrottlein
theFastposition.
3.Pullupontheblade-controlswitchtomoveittothe
Onposition,andengagetheblades(
Figure15).
Figure15
1.Controlpanel2.Blade-controlswitch—On
position
DisengagingtheBlades
Pushdownontheblade-controlswitchtomoveittotheOff
position,anddisengagetheblades(Figure16).
Figure16
1.Controlpanel2.Blade-controlswitch—Off
TestingtheSafety-interlock
System
Testthesafety-interlocksystembeforeyouusethemachine
eachtime.Ifthesafetysystemdoesnotoperateasdescribed
below,haveanAuthorizedServiceDealerrepairthesafety
systemimmediately.
1.Whilesittingontheseat,withthecontrolleversinpark
position,andmovetheblade-controlswitchtoOn.
2.Trystartingtheengine;theengineshouldnotcrank.
3.Whilesittingontheseat,movetheblade-control
switchtoOff.
4.Moveeithermotion-controllevertothecenter,
unlockedposition.
5.Trystartingtheengine;theengineshouldnotcrank.
16
