Toro 74676 - Drive System Maintenance; Checking the Tire Pressure; Releasing the Electric Brake

DriveSystem
Maintenance
CheckingtheTirePressure
ServiceInterval:Every25hours—Checktire
pressure.
Maintaintheairpressureinthefrontandreartiresas
specied.Uneventirepressurecancauseanuneven
cut.Checkthepressureatthevalvestem(Figure54).
Checkthetireswhentheyarecoldtogetthemost
accuratepressurereading.
Refertothemaximumpressuresuggestedbythetire
manufactureronthesidewallofthecasterwheeltires.
Inatethereardrive-wheeltiresto90kPa(13psi).

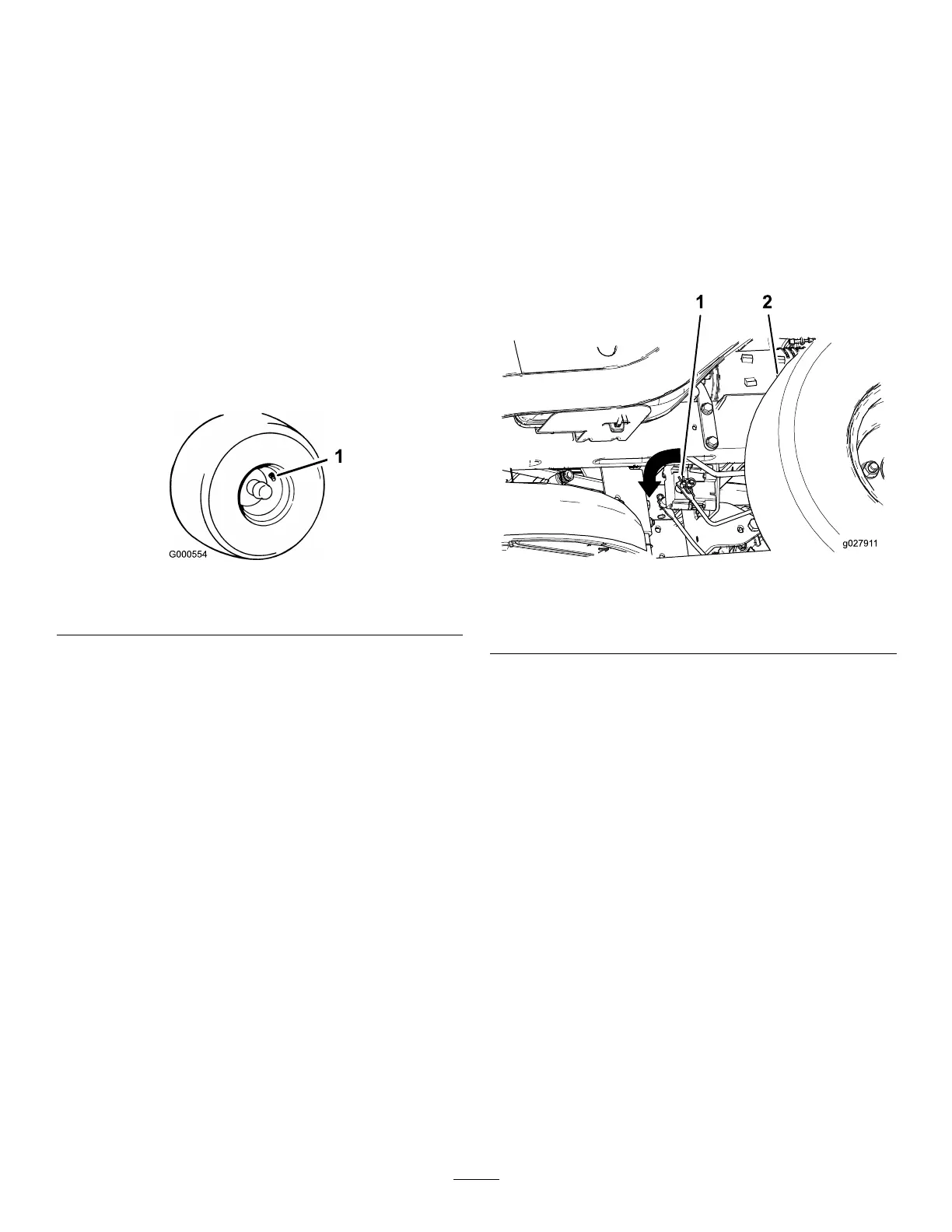

g000554
Figure54
1.Valvestem
ReleasingtheElectric
Brake
Youcanmanuallyreleasetheelectricbrakeby
rotatingthelinkarmsforward.Oncetheelectricbrake
isenergized,thebrakeresets.
1.TurnthekeytotheOFFpositionordisconnect
thebattery.
2.Locatetheshaftontheelectricbrakewherethe
brakelinkarmsareconnected(Figure55).
3.Rotatetheshaftforwardtoreleasethebrake.
g027911
Figure55
1.Brake-linkarmontheelectricbrakecontrolmodule
2.Left,reartire
