Lubrication
GreasingtheBearings
ServiceInterval:Every25hours—Greasethecaster
wheelbearings(moreofteninsandy
soilconditions).
GreaseType:No.2lithiumgrease
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andmovethe
motion-controlleversoutwardtothePARK
position.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Cleanthegreasettings(Figure36)witharag.
Note:Scrapeanypaintoffthefrontofthe
tting(s).
g032432

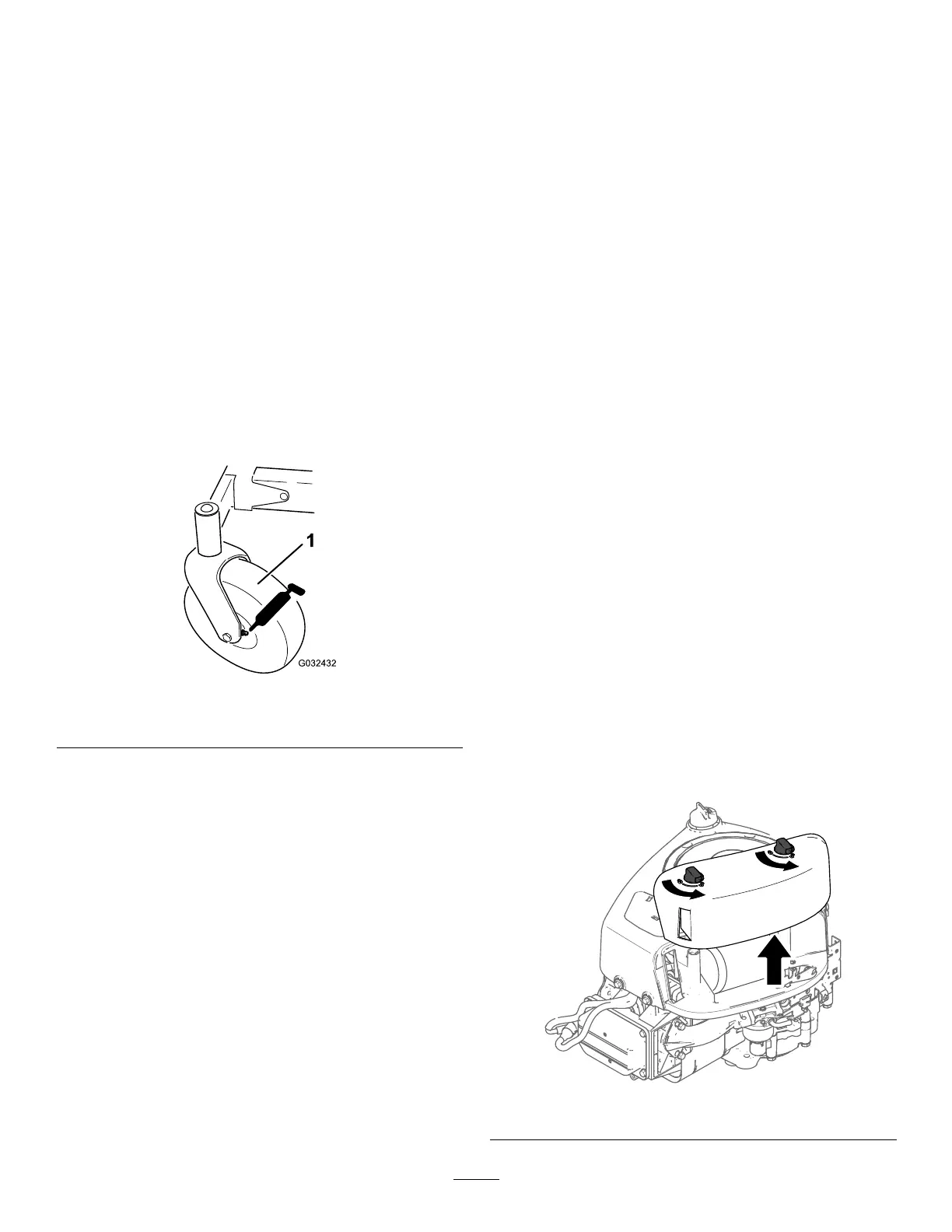

Figure36
1.Frontcastertire
4.Connectagreaseguntoeachtting(Figure36).
5.Pumpgreaseintothettingsuntilgreasebegins
tooozeoutofthebearings.
6.Wipeupanyexcessgrease.
EngineMaintenance
EngineSafety
•Keepyourhands,feet,face,otherbodyparts,
andclothingawayfromthemuferandotherhot
surfaces.Allowenginecomponentstocoolbefore
performingmaintenance.
•Donotchangetheenginegovernorspeedor
overspeedtheengine.
ServicingtheAirCleaner
ServiceInterval:Every25hours—Cleanthe
air-cleanerfoamelement(more
oftenindusty,dirtyconditions).
Yearly—Replacetheair-cleanerpaperandfoam
elements(moreoftenindusty,dirtyconditions).
Note:Servicetheaircleanermorefrequently(every
fewhours)ifoperatingconditionsareextremelydusty
orsandy.
RemovingtheAir-Cleaner
Elements
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andmovethe
motion-controlleversoutwardtothePARK
position.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Cleanaroundtheair-cleanercovertoprevent
dirtfromgettingintotheengineandcausing
damage.
4.Rotatethelatchescounterclockwiseandremove
thecover.
g374186
Figure37
