Toro 74687 - Drive System Maintenance; Checking the Tire Pressure; Releasing the Electric Brake; Adjusting the Tracking

DriveSystem
Maintenance
CheckingtheTirePressure
ServiceInterval:Every25hours—Checktire
pressure.
Maintaintheairpressureinthefrontandreartiresas
specied.Uneventirepressurecancauseanuneven
cut.Checkthepressureatthevalvestem(Figure53).
Checkthetireswhentheyarecoldtogetthemost
accuratepressurereading.
Inatethefrontcasterwheeltiresto206kPa(30psi)
orthepressureindicatedonthesidewall,whichever
islower.
Inatethereardrive-wheeltiresto90kPa(13psi).
g000554

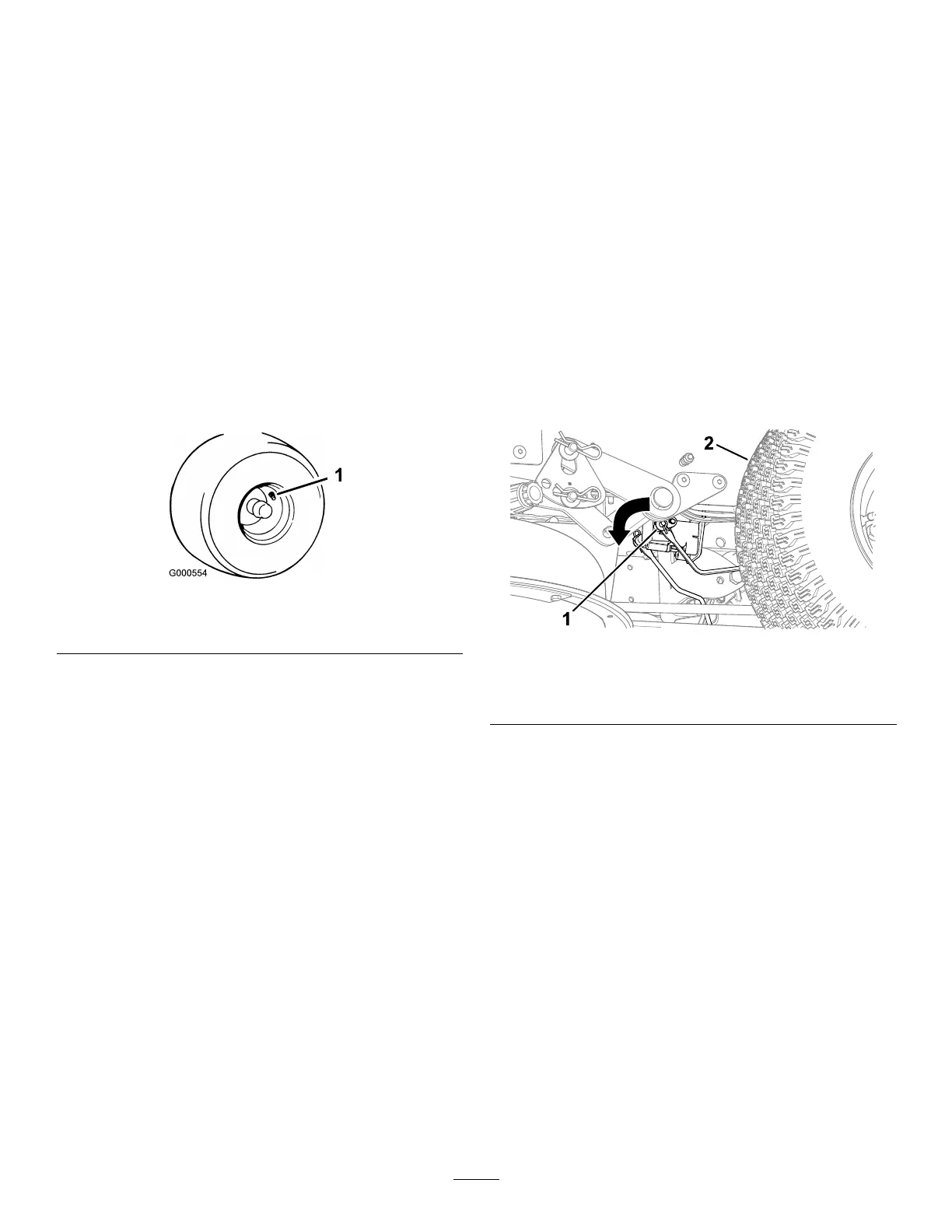

Figure53
1.Valvestem
ReleasingtheElectric
Brake
Youcanmanuallyreleasetheelectricbrakeby
rotatingthelinkarmsforward.Oncetheelectricbrake
isenergized,thebrakeresets.
1.TurnthekeytotheOFFpositionordisconnect
thebattery.
2.Loosenthebottom2boltsholdingthe
mower-deckcurtaintothemowerdeck.Referto
ReleasingtheMower-DeckCurtain(page29).
3.Locatetheshaftontheelectricbrakewherethe
brakelinkarmsareconnected(Figure54).
4.Rotatetheshaftforwardtoreleasethebrake.
5.Tightenthebottom2boltsforthemower-deck
curtaintothemowerdeck.RefertoReleasing
theMower-DeckCurtain(page29).
g294417
Figure54
1.Brake-linkarmontheelectricbrakecontrolmodule
2.Left,reartire
AdjustingtheTracking
Whendrivingthemachineforwardfullspeedacross
aat,levelsurface,ifthemachinepullsto1side,
adjustthetracking.
Ifthemachinepullstotheleft,adjusttheright
motion-controllever;ifthemachinepullstotheright,
adjusttheleftmotion-controllever.
Note:Youcanonlyadjustthetrackingfordriving
forward.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch,andmovethe
motion-controlleversoutwardtothePARK
position.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
