thentightenthefourlevelingadjustlockingnuts
(Figure61).
G010342
1
2
3
4
1
6
5
3

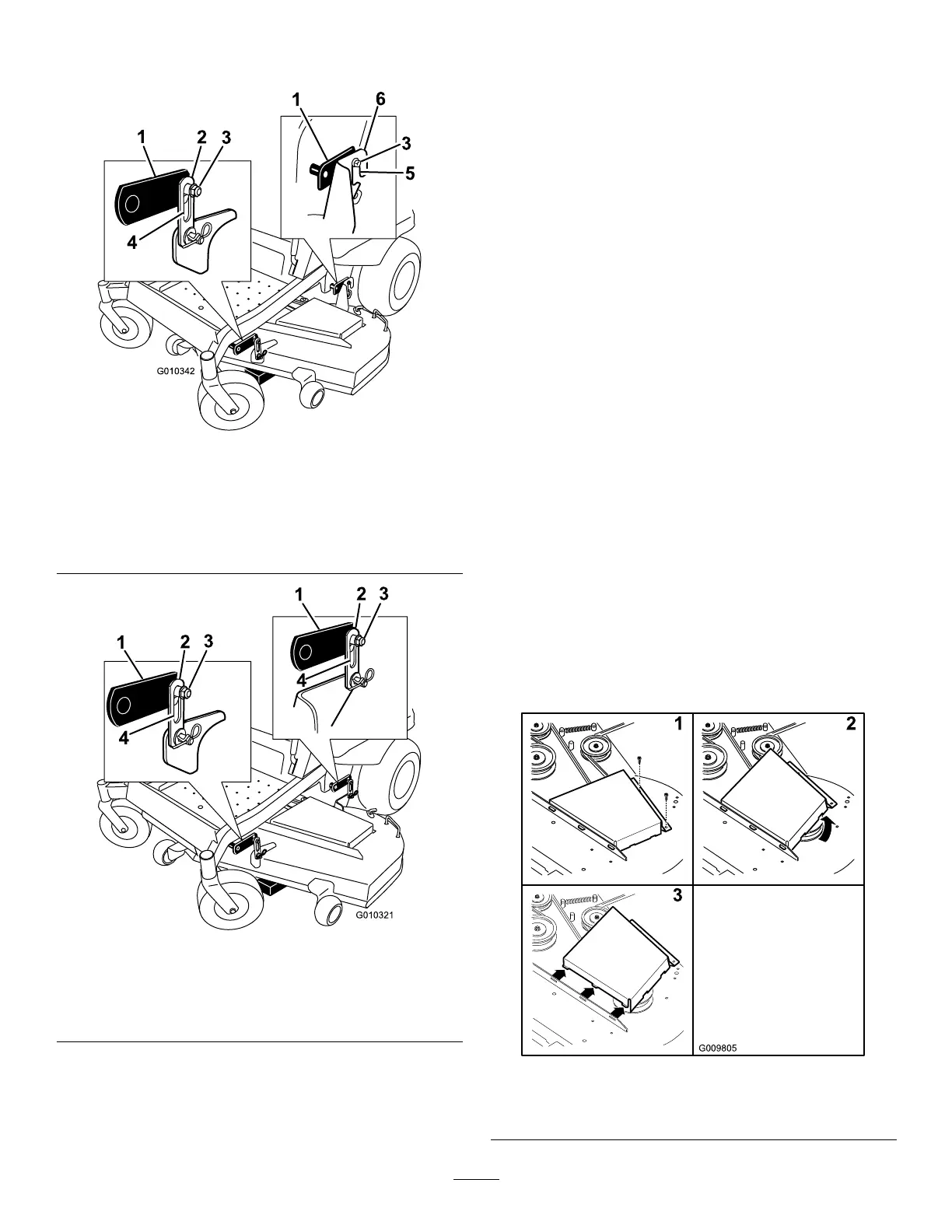

Figure61
54inchMowerDecks
1.Deckliftarm4.Slotindeckhanger
2.Deckhanger
5.Slotinreardeckhanger
bracket
3.Levelingadjustlockingnut6.Reardeckhangerbracket
G010321
1
2
3
1
2
3
4
4
Figure62
60inchMowerDecks
1.Deckliftarm
3.Levelingadjustlockingnut
2.Deckhanger
4.Slotindeckhanger
5.Recheckthatblockstjustsnuglyunderthedeck
skirt.Makesureallattachmentboltsaretight
6.Verifythedeckislevelbycheckingtheside-to-side
levelandfront-to-rearbladeslope;repeatdeck
levelingprocedureifnecessary.
InspectingtheBelts
ServiceInterval:Every50hours
Checkthebeltsforsquealingwhenthebeltisrotating,
bladesslippingwhencuttinggrass,frayedbeltedges,
burnmarksandcracksaresignsofawornmowerbelt.
Replacethemowerbeltifanyoftheseconditionsare
evident.
ReplacingtheMowerBelt
Squealingwhenthebeltisrotating,bladesslippingwhen
cuttinggrass,frayedbeltedges,burnmarksandcracks
aresignsofawornmowerbelt.Replacethemowerbelt
ifanyoftheseconditionsareevident.
1.Disengagethebladecontrolswitch(PTO),movethe
motioncontrolleverstotheneutrallockedposition
andsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Lowerthemowertothe3inch(76mm)height-of-cut
position.
4.Removethebeltcovers(Figure63).
G009805
1 2
3
Figure63
1.Removethescrews3.Removebeltcover
2.Pivotthebeltcoverup
