WARNING
Thespringisundertensionwhen
installedandcancausepersonalinjury.
Becarefulwhenremovingthebelt.
g298025

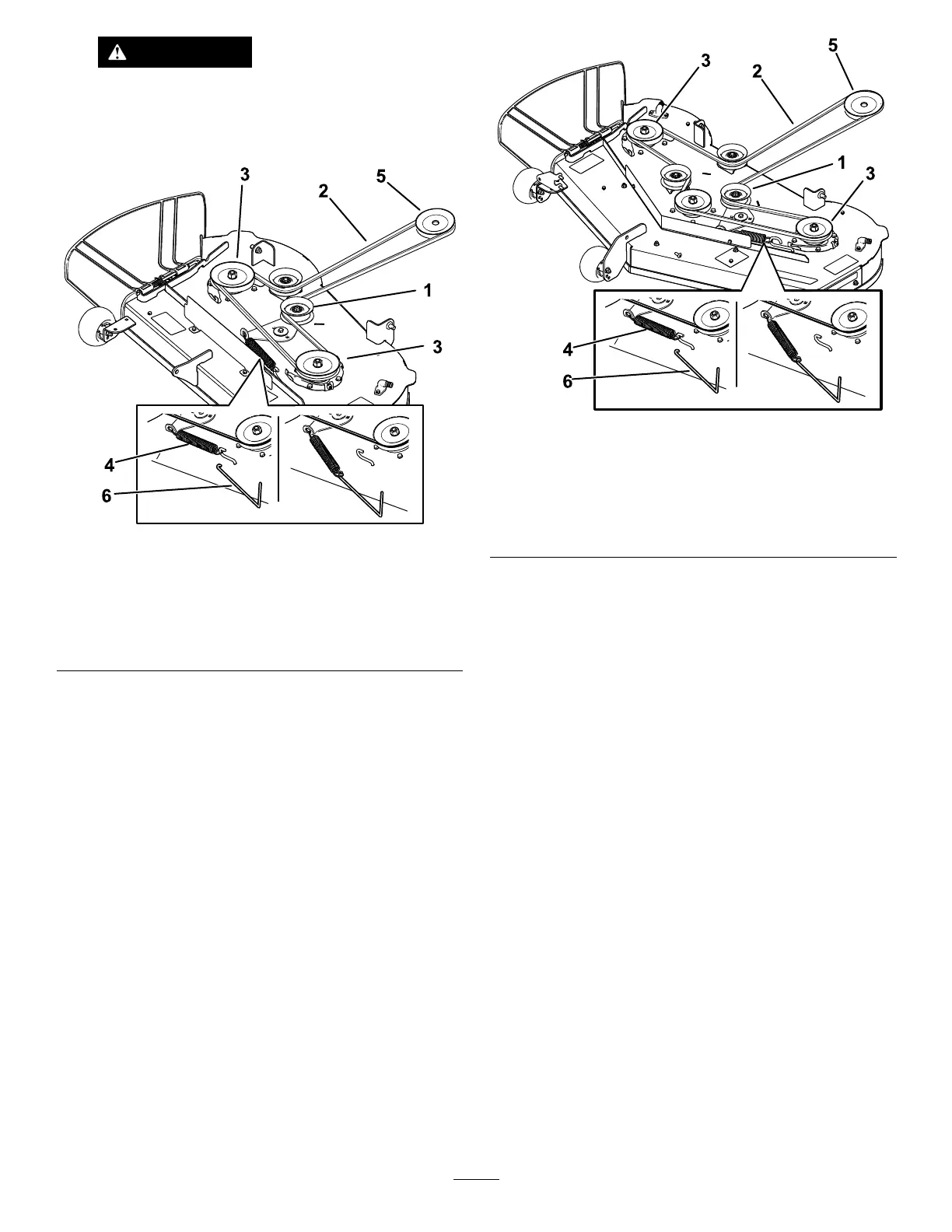

Figure52
Mowerdeckswith2blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
g298026
Figure53
Mowerdeckswith3blades
1.Idlerpulley
4.Spring
2.Mowerbelt
5.Enginepulley
3.Outsidepulley6.Spring-removaltool
6.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(Figure52orFigure53).
7.Usingaspring-removaltool(T oroPartNo.
92-5771),installtheidlerspringoverthedeck
hookandplacetensionontheidlerpulleyand
themowerbelt(Figure52orFigure53).
8.Installthepulleycovers.
