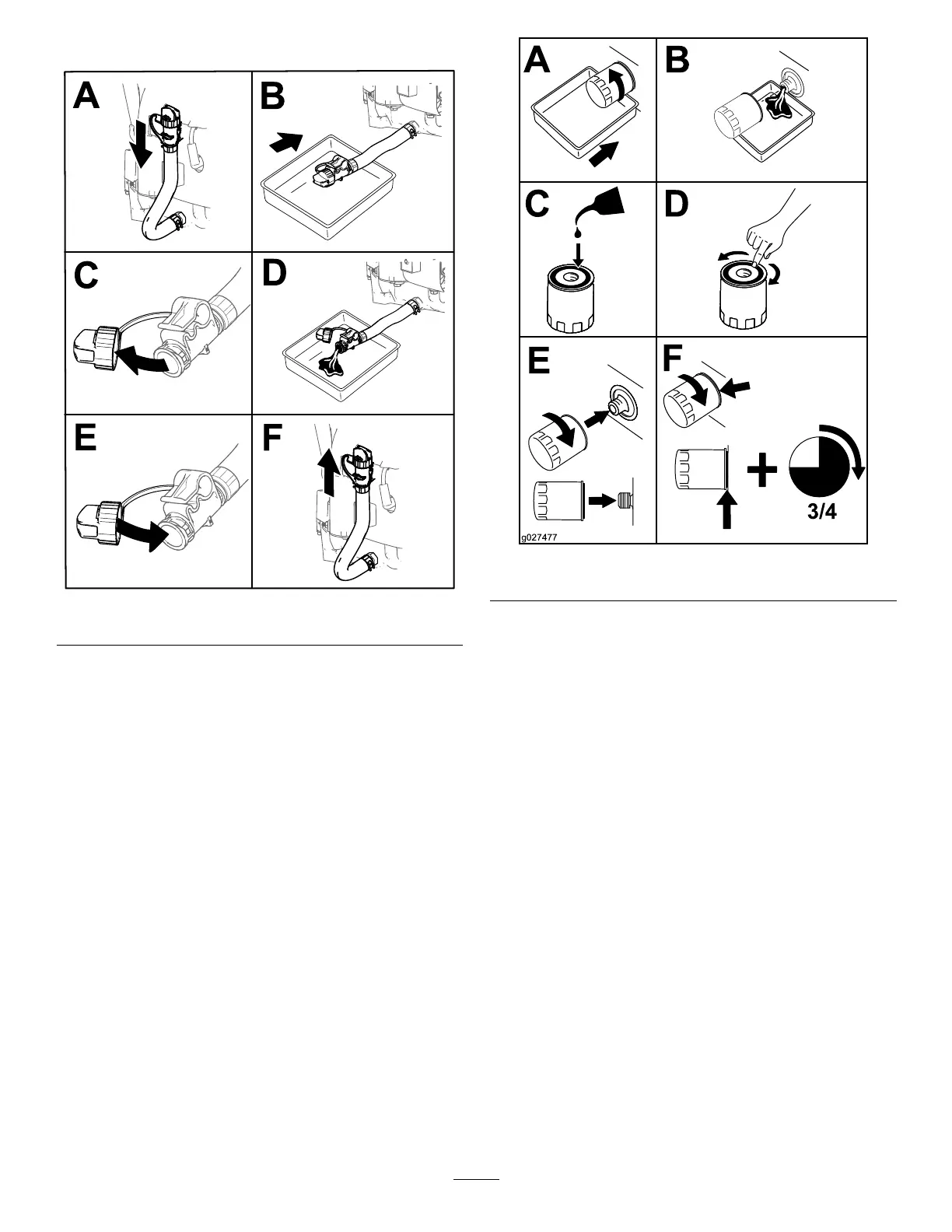

4.Changetheengineoilasshown.

g403463

Figure69

5.Changetheengine-oillterasshown.

Note:Ensurethattheoil-ltergaskettouches

theengineandthenturnthelteranextra3/4

turn.

g027477

Figure70

6.Slowlypourapproximately80%ofthespecied

oilintothellertubeandslowlyaddthe

additionaloiltobringittotheFullmark.
