InstallingtheBattery
1.Positionthebatteryinthetraywiththeterminal
postsoppositefromthehydraulictank(Figure
77).
2.Installthepositive(red)batterycabletothe
positive(+)batteryterminal.
3.Installthenegative(black)batterycableand
groundwiretothenegative(-)batteryterminal.
Note:ForMyRidemachines,ensurethatthe
groundcabledoesnotrubagainstthetrailing
armorlowershockmount(Figure79).

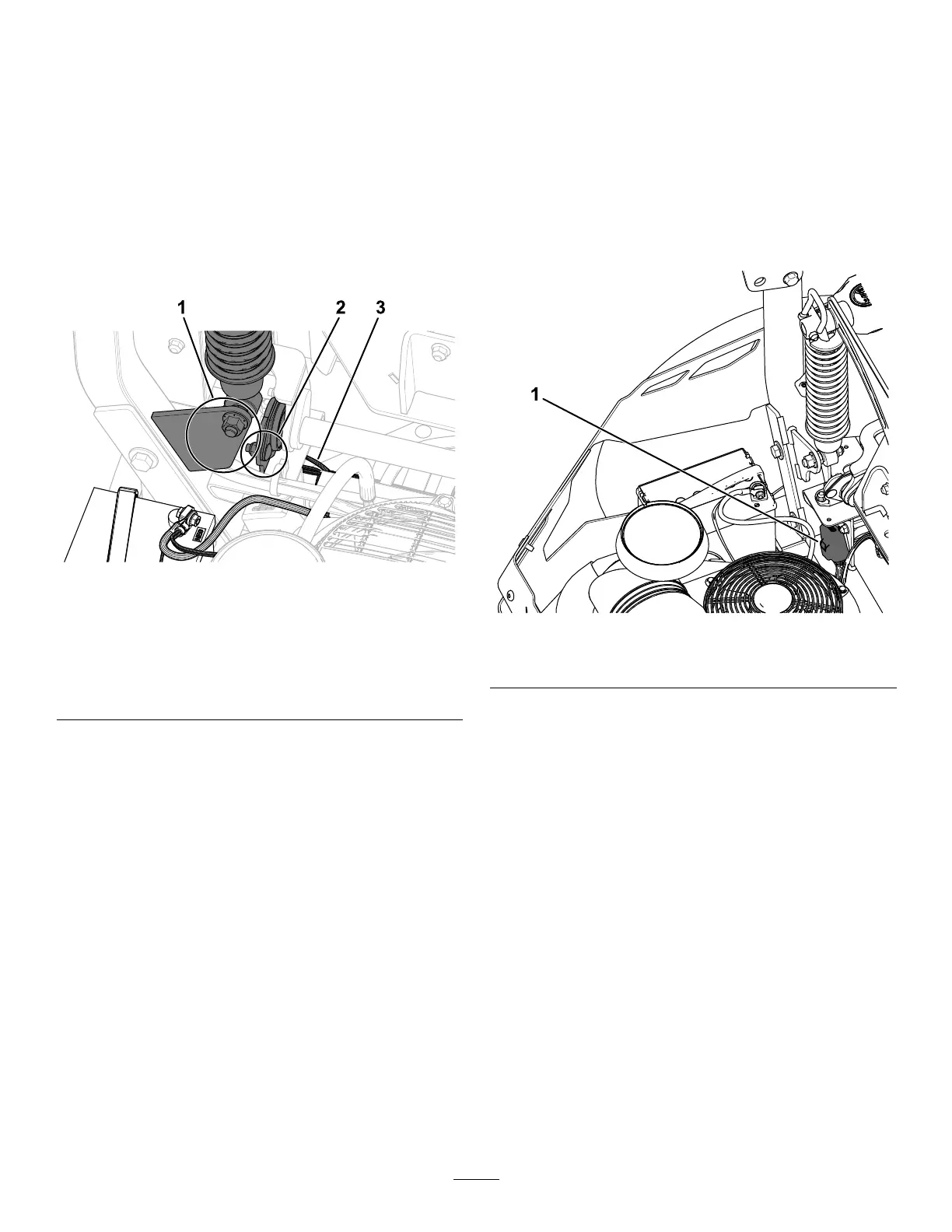

g334253
Figure79
1.Ensurethattheground
cabledoesnotrubagainst
thelowershockmount.
3.Groundcable
2.Ensurethattheground
cabledoesnotrubagainst
thetrailingarm.
4.Securethecableswith2bolts,2washers,and
2locknuts(Figure77).
5.Slidetheredterminalbootontothepositive(+)
batteryterminal.
6.Securethebatterywiththerubberstrap(Figure
77).
ServicingtheFuses
Theelectricalsystemisprotectedbyfuses.Itrequires
nomaintenance;however,ifafuseblowscheckthe
componentandcircuitforamalfunctionorshort.
Thefusesarelocatedintherear,neartheengine
(Figure80).
1.Toreplacethefuses,pulloutthefusetoremove
it.
2.Installanewfuse(Figure80).
g412770
Figure80
1.Fuseblock
59
