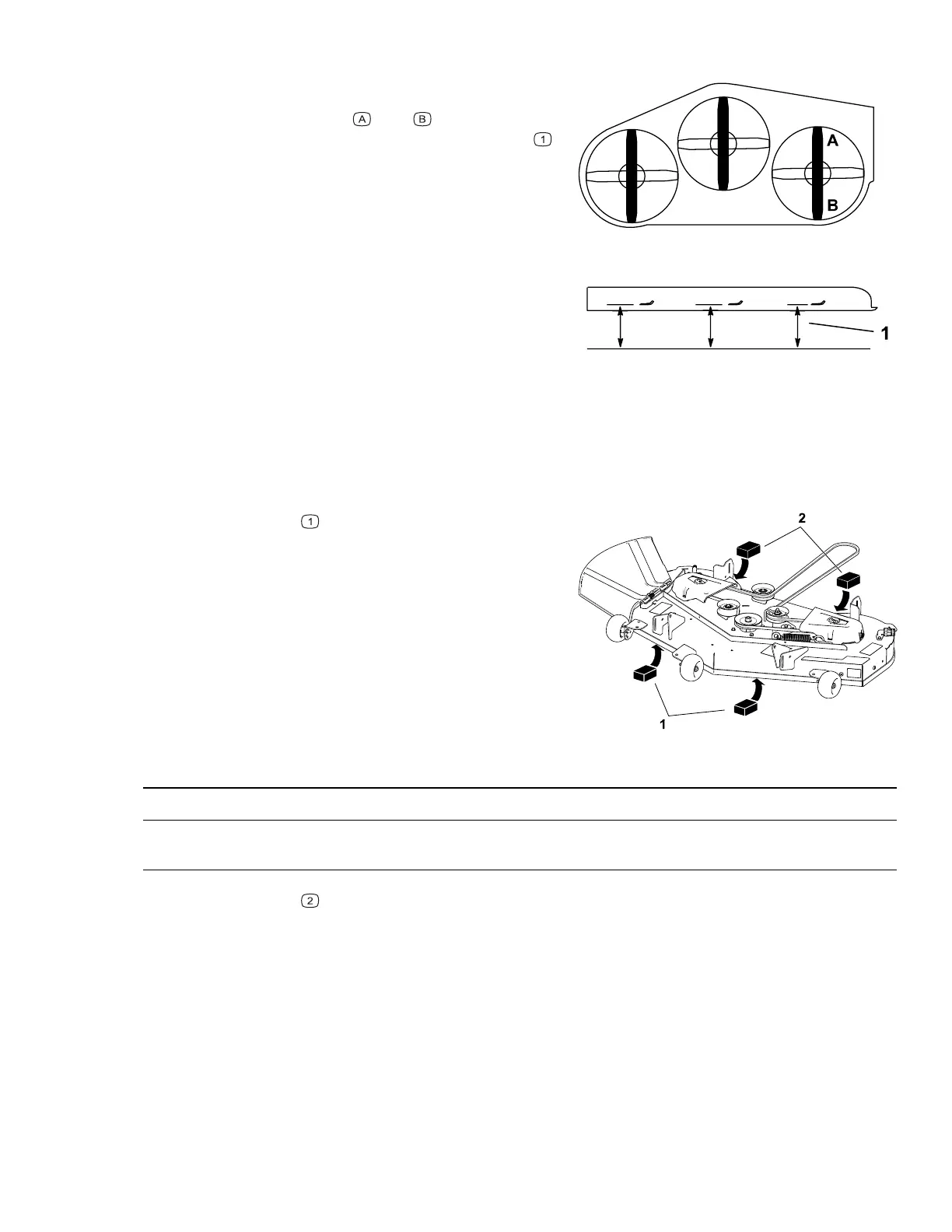

Leveling the Mower Deck (continued)
G414700
3. Position 1 blade front-to-rear.
4. Measure at locations
and from a level
surface to the cutting edge of the blade tips
.
The front blade tip should be 1.6 to 7.9 mm (1/
16 to 5/16 inch) lower than the rear blade tip. If
the measurement is not correct, adjust the
front-to-rear level.
Leveling the Mower Deck
1. Set the anti-scalp rollers to the top holes or remove them completely for this procedure.
2. Set the height-of-cut lever to the 76 mm (3 inch) position.
G454325
3. Place 2 blocks , each having a thickness of
6.6 cm (2-5/8 inches), under each side of the
front edge of the deck.
IMPORTANT
Do not place the blocks under the anti-scalp roller brackets.
4. Place 2 blocks
, each having a thickness of 7.3 cm (2-7/8 inches), under each side of
the rear edge of the deck.
3465-589C Page 5–29 Maintenance: Mower-Deck Maintenance
