Toro GrandStand 74534TE - Mower Access Procedures

Premaintenance
Procedures
RaisingtheMowerforAccess
Thefrontofthemowercanberaisedandsupportedon
itsbackforaccessunderthemachineformaintenance.
1.Raisetheplatform.RefertoOperatingthePlatform
inOperation.
2.Removethebattery.

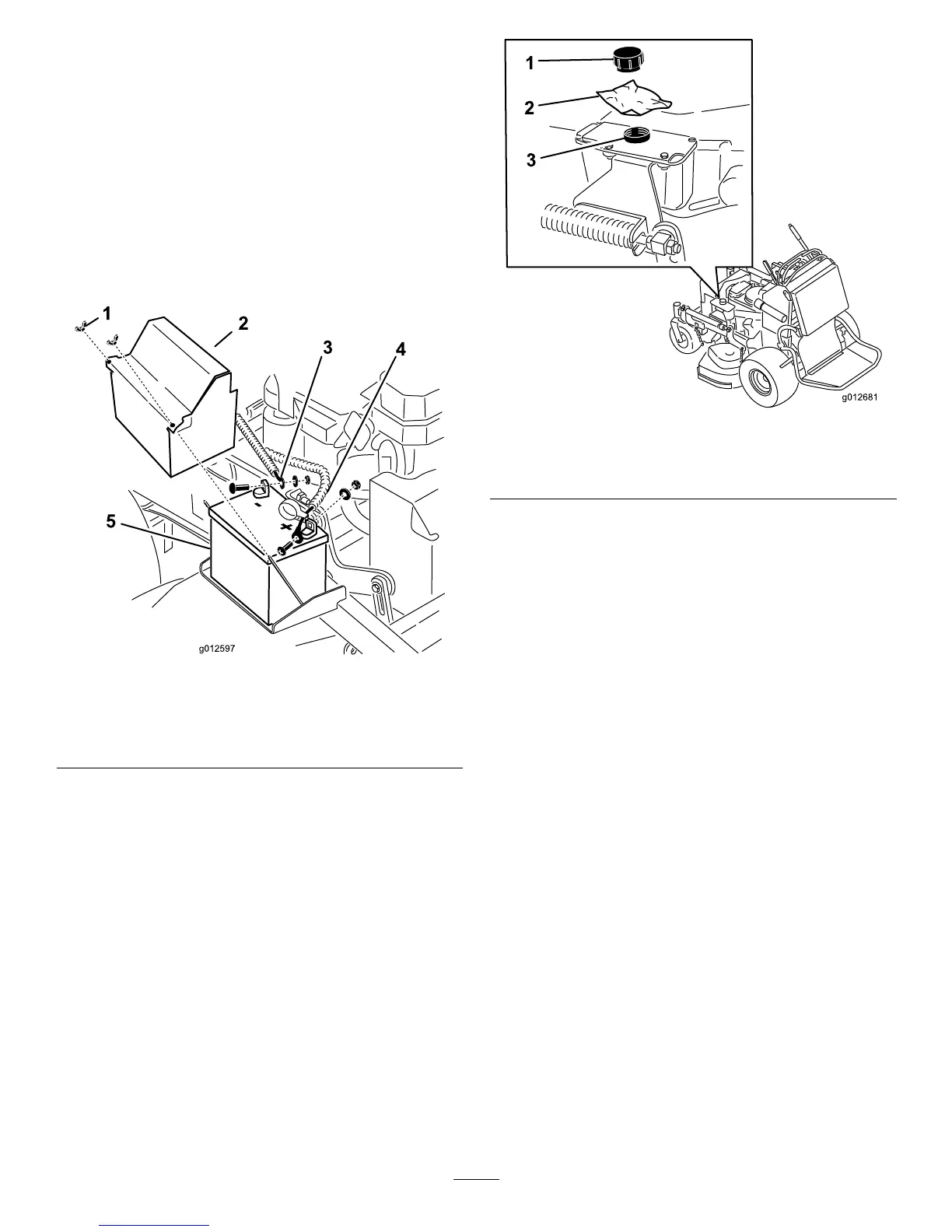

Figure33
1.Wingnut4.Positivebatterycable
2.Batterycover5.Battery
3.Negativebatterycable
3.Drainthefuelfromthefueltank.RefertoDraining
theFuelTankinMaintenance.
4.Removethecapofthehydraulictankandplace
apieceofplasticovertheopeningandinstallthe
hydrauliccap.Thiswillsealthehydraulictankand
preventitfromleakingout.
Figure34
1.Cap
3.Hydraulictank
2.Pieceofplastic
5.Withtwopeople,raisethefrontofthemowersoit
restsonthedrivetiresandtheplatformintheup
position.
6.Performanymaintenanceonthemachine.
7.Withtwopeople,lowerthefrontofthemowerto
theground.
8.Removetheplasticunderthehydraulictankcap.
9.Installthebatteryforthemachine.
