Toro GrandStand 74534TE - Electric Clutch Adjustment

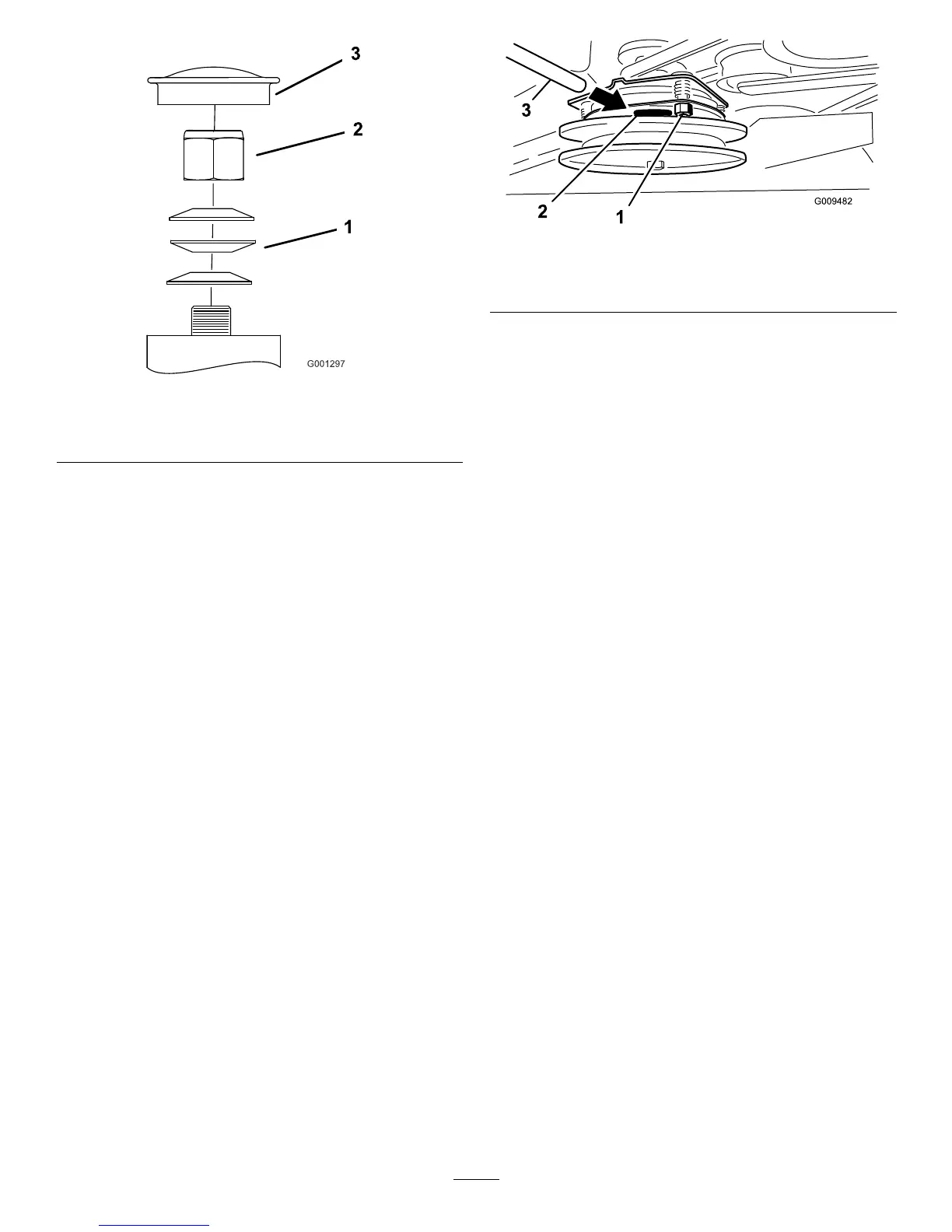

Figure60
1.SpringWashers3.DustCap
2.LockNut
AdjustingtheElectricClutch
ServiceInterval:Every500hours—Checktheelectric
clutch.
Theclutchisadjustabletoensureproperengagement
andproperbraking.
1.Inserta0.015–0.021inch(0.381–0.533mm)feeler
gaugethroughoneinspectionslotinthesideofthe
assembly.Makesureitisbetweenthearmatureand
therotorfrictionsurfaces.
Thegapneedstobeatleast.015inches(0.381mm)
andnotmorethan.021inches(0.533mm).
2.Ifadjustmentisneeded,thensetat.015inches(0.381
mm)foreachofthethreeadjustmentslotpositions.
Tightenthelocknutsuntilthereisslightbindingon
thefeelergaugebutitcanbemovedeasilywithinthe
airgap(
Figure61).
3.Repeatthisfortheremainingslots.
4.Checkeachslotagainandmakeslightadjustments
untilthefeelergaugebetweentherotorandarmature
withveryslightcontactbetweenthem.
Figure61
1.Adjustingnut3.Feelergauge
2.Slot
44
