Greensmaster Flex 1800/1820/2100/2120Page 6 − 10Chassis and Controls

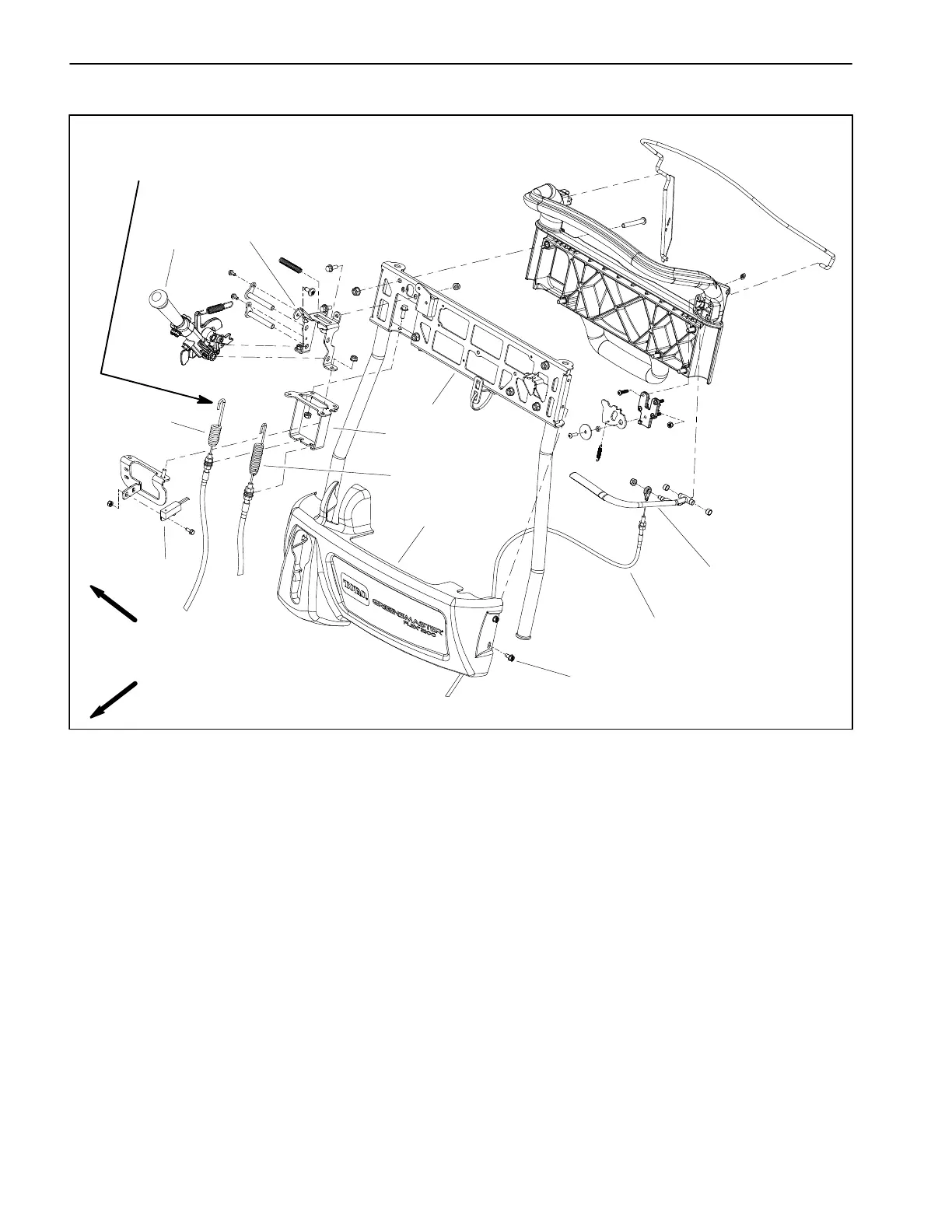

Reel Clutch Cable Replacement
1. Brake cable
2. Brake lever
3. Lever assembly
4. Shift mount
5. Reel clutch cable
6. Console cover
7. Washer head screw (4 used)
8. Lower handle
9. Traction switch
10. Traction clutch cable
11. Shifter bracket
Figure 11
RIGHT
FRONT
1
4
7
8
9
10
2
5
3
6
11
Note orientation
of spring hook
Removal
1. Park machine on a level surface. Make sure the en-
gine is OFF and the traction lever is in NEUTRAL.
2. Remove reel clutch cable from transmission (Fig.
12):
A. Loosen front cable jam nut and lift cable free from
casting slot of transmission.
B. Remove retaining ring that secures cable eyelet
to reel clutch lever and slide cable eyelet from lever.
C. Remove cable tie that secures reel drive cable to
transmission bracket.
3. Remove console cover from handle assembly to al-
low access to upper end of reel clutch cable.
4. Remove reel clutch cable from traction lever as-
sembly (Fig. 13):
A. Loosen lower cable jam nut that secures reel
clutch cable to shift mount bracket on handle. Slide
cable from bracket.
B. Remove cable spring from spring anchor on lever
assembly. Note orientation of cable spring hook on
lever assembly for assembly purposes.
5. Remove reel clutch cable from machine.
