Greensmaster Flex 1800/1820/2100/2120Traction and Reel Drive System Page 4 − 36
Transmission Clutch System (1800/2100)

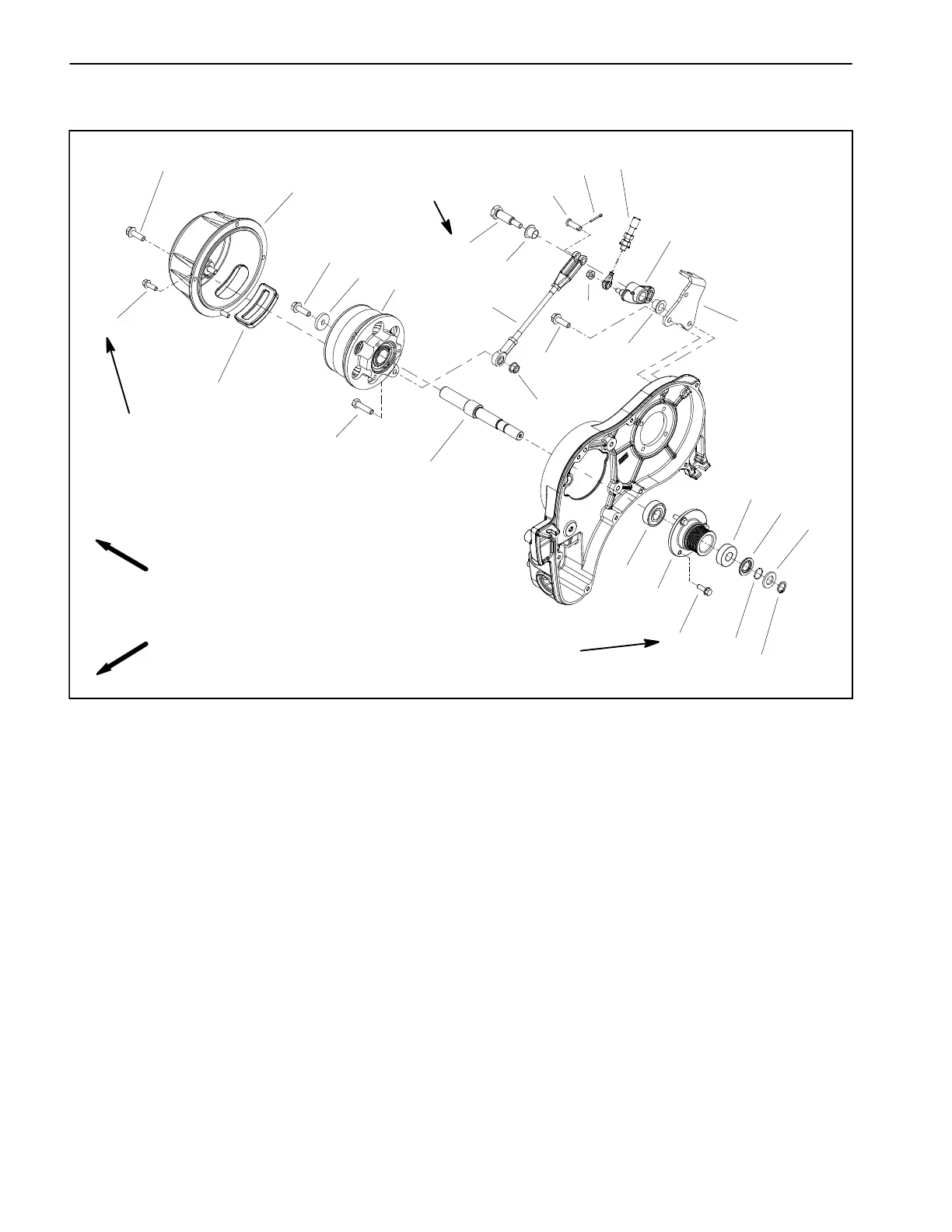

Figure 44
1. Clutch housing
2. Flange head screw (5 used)
3. Grommet
4. Hardened washer
5. Clutch assembly
6. Clutch shaft
7. Ball bearing
8. Drive pulley
9. Ball bearing
10. Flocked bearing shield
11. Wave spring
12. Flat washer
13. Retaining ring
14. Flange nut
15. Washer head screw (7 used)
16. Cable bracket
17. Flange bushing (2 used)
18. Bellcrank lever
19. Bellcrank rod assembly
20. Clevis pin
21. Cotter pin
22. Flange nut
23. Cap screw
24. Shoulder screw
25. Traction clutch cable
FRONT
RIGHT
15 to 17 ft−lb
(21 to 23 N−m)
1
3
5
6
7
9
10
11
12
13
2
14
15
16
17
19
20
21
22
23
24
2
17
15
18
4
8
25
2
See text for
tightening
procedure
See text for
tightening
procedure
Transmission removal from the machine is not neces-
sary to service the transmission clutch system. Trans-
mission clutch components can be accessed by
removing the engine from the frame, removing the
transmission cover and then removing the drive belt.
Disassembly (Fig. 44)
1. Park machine on a level surface. Make sure engine
is OFF.
2. Remove transmission drive belt (see Transmission
Drive Belt in this section).
3. Remove flange nut (item 14) and cap screw (item 23)
that secure bellcrank rod assembly (item 19) to clutch le-
ver. Separate rod from clutch lever.
4. Support clutch housing to prevent it from falling.
5. Remove four (4) washer head screws (item 15) that
secure clutch housing to transmission housing.
6. Remove entire clutch assembly (including items 1, 5,
6 and 8) from transmission housing.
