Greensmaster Flex 1800/1820/2100/2120Belt Driven Groomer (Optional) Page 8 − 8
Groomer Cover (Counter Rotating Groomer Drive)
On Flex machines with the counter rotating groomer, the
groomer cover includes a handle which engages and
disengages the groomer drive. When the handle is ro-
tated toward the front of the machine, the groomer is en-
gaged.
Removal
1. Position machine on a clean and level surface with
engine stopped. Engage parking brake.
2. Make sure that handle on groomer cover is rotated
toward front of machine so that groomer drive is en-
gaged.
3. Remove groomer cover assembly from machine
(Fig. 4):
A. Remove five (5) flange head screws that secure
groomer cover assembly to RH drive plate.
B. Remove groomer cover assembly and gasket
from machine. Discard gasket.
4. If necessary, remove shaft from groomer cover (Fig.
5):
A. Loosen set screw (item 9) on top of shaft and slide
handle from shaft.
B. Remove retaining ring (item 8) and thrust washer
(item 5) from shaft.
C. Remove plunger detent (item 6) from groomer
cover.
D. Slide shaft out of groomer cover. Remove and
discard O−ring (item 4) from shaft.
5. Remove grease from inside groomer cover and RH
drive plate on cutting unit. Thoroughly clean and inspect
all groomer drive components.

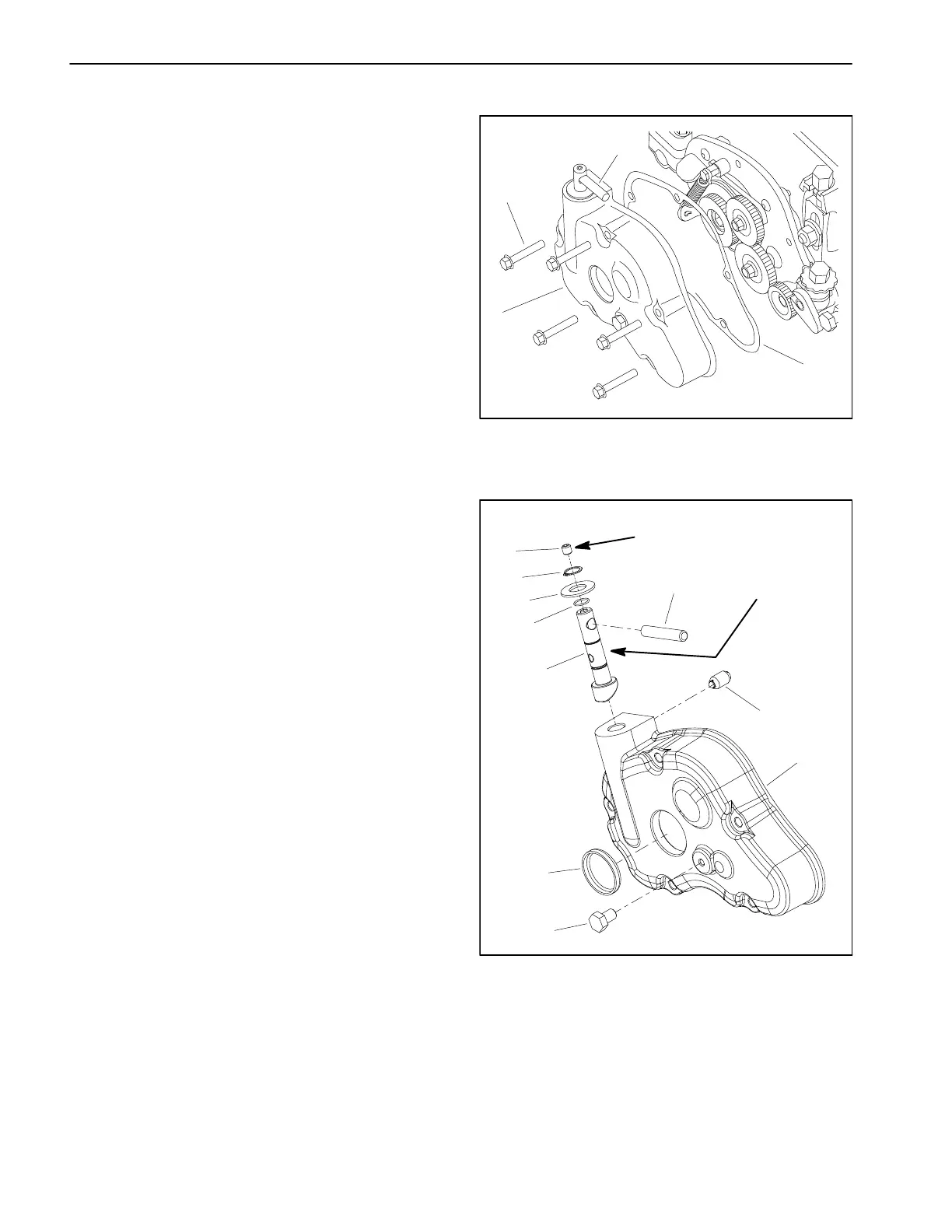

1. Groomer cover assembly
2. Screw (5 used)
3. Gasket
4. Handle
Figure 4
3
1
2
4
1. Groomer cover
2. Plug
3. Shaft
4. O−ring
5. Thrust washer
6. Plunger detent
7. Cap screw
8. Retaining ring
9. Set screw
10. Handle
Figure 5
6
1
4
5
8
9
3
10
2
7
Antiseize
Lubricant
Loctite #242
