Groundsmaster 4500 --D/4700--DPage 3 -- 20Yanmar Diesel Engine
Pump Adapter Plate

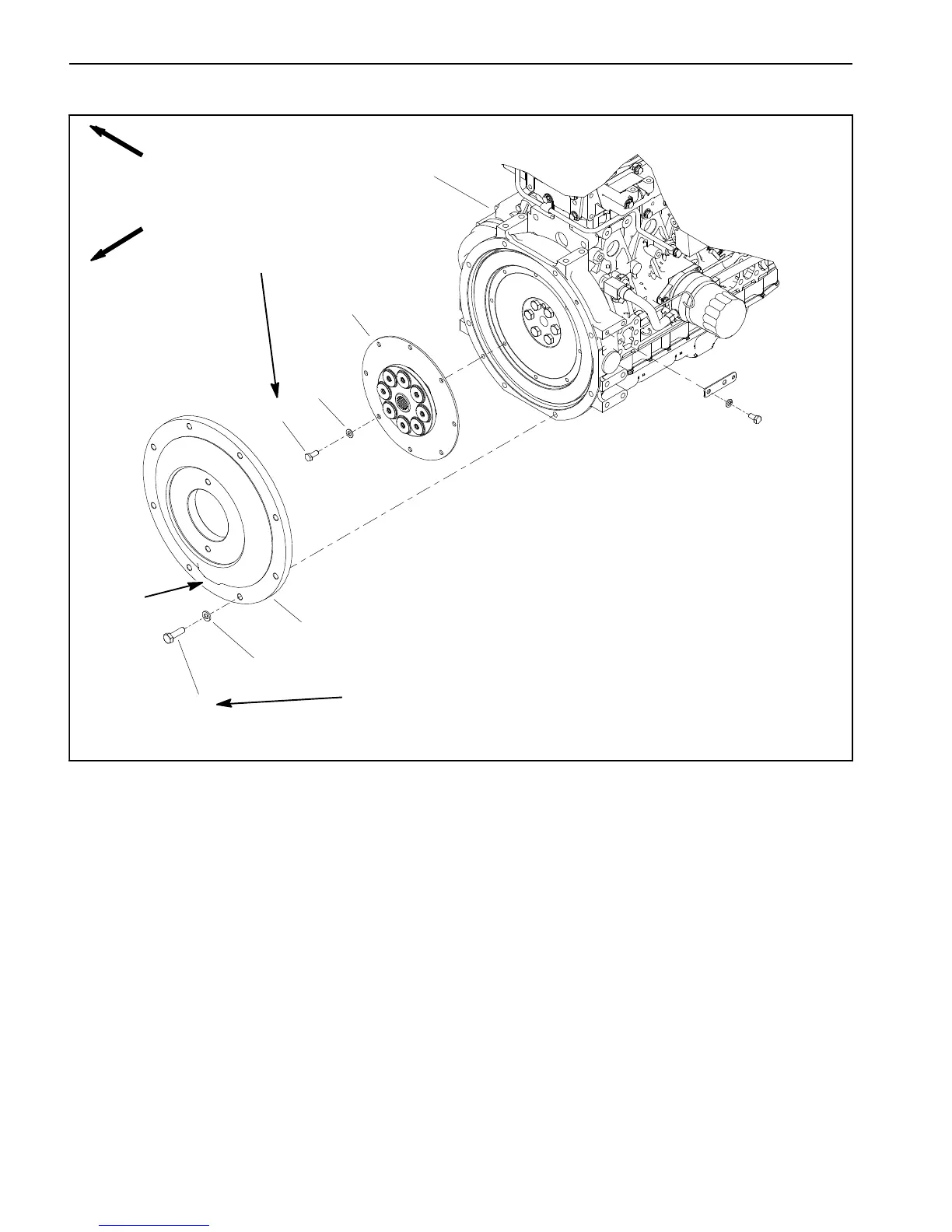

Figure 17
1. Flywheel plate
2. Hardened washer (8 used)
3. Spring coupler
4. Cap screw (8 used)
5. Cap screw with patchlock (8 used)
6. Hardened washer (8 used)
7. Engine assembly
FRONT
RIGHT
1
3
5
2
4
6
7
29 to 33 ft--lb
(40 to 44 N--m)
Boss
29 to 33 ft--lb
(40to44N--m)
