Toro Groundsmaster 5910 Installation Instructions

1
PreparingtheMachine
NoPartsRequired
Procedure
1.Parkthemachineonalevelsurface.
2.Engagetheparkingbrake.
3.Lowerthecuttingunits.
4.Shutofftheengineandremovethekey.
2
DisconnectingtheBattery
NoPartsRequired
Procedure

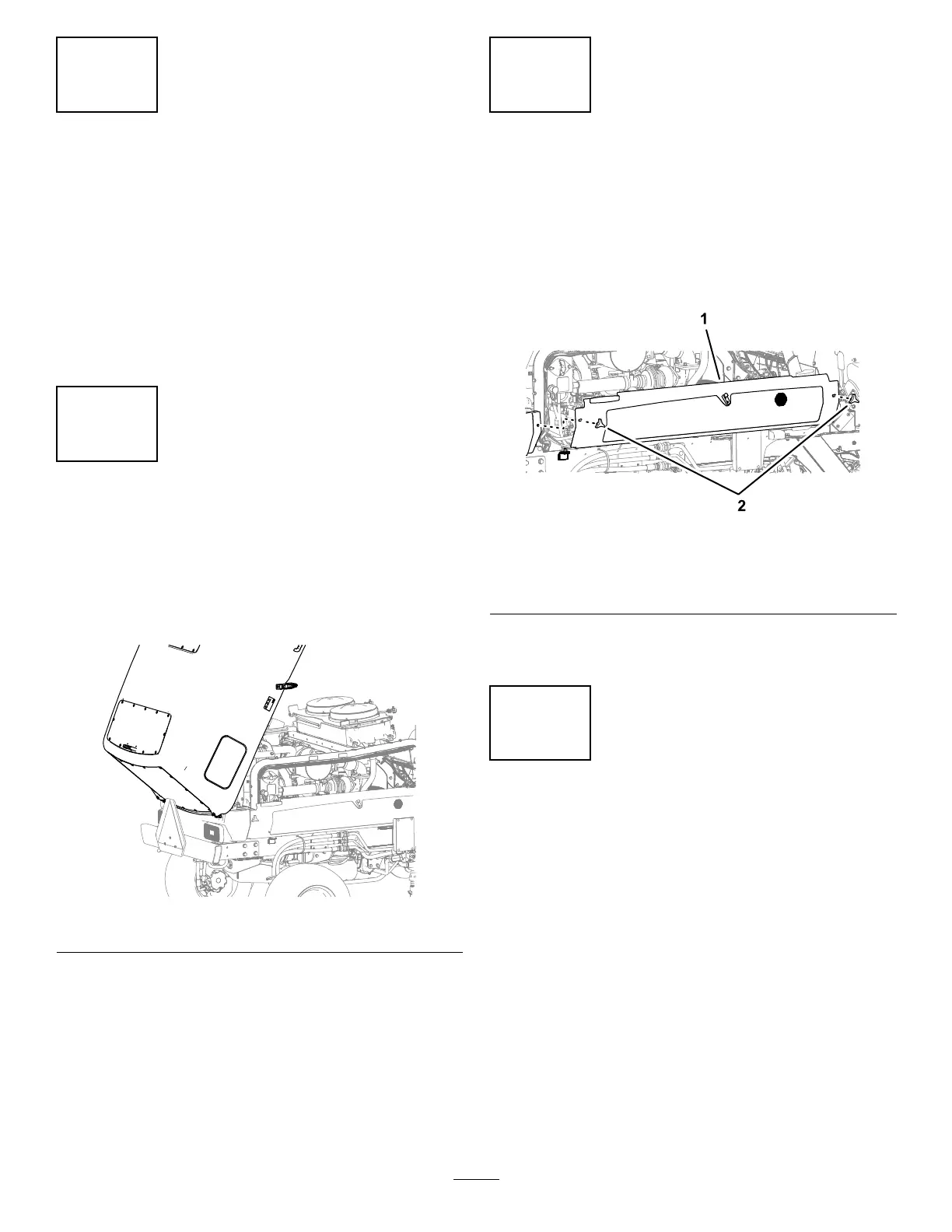

1.Openthehood(Figure1).
g251777
Figure1
2.RotatethebatterydisconnectswitchtotheOFF
position,refertotheOperator’sManualforyour
machine.
3
RemovingtheSidePanels
NoPartsRequired
Procedure
1.Loosenthe2knobsthatsecuretheleftandright
sidepanelstothemachine(Figure2).
g251780
Figure2
Rightsidepanelshown
1.Sidepanel
2.Knobs
2.Removethesidepanelsfromthemachine
(Figure2).
4
Removingthe28-V
Solenoid
NoPartsRequired
Procedure
Note:Yourmachinemayhaveupto3fusesonthe
fusebrackettowardstherearendofthemachine.For
thisprocedure,removethe28-Vsolenoidunderthe
fuseholdershowninFigure3.
2

Toro Groundsmaster 5910 Specifications

General

Transmission	Hydrostatic
Deck Lift	Hydraulic
Fuel Tank Capacity	33.5 gallons
Turning Radius	18 inches
Standard Tires	Front: 26x12-12
Ground Speed	0 - 10 mph
Speed Range	0 - 10 mph
