2.Securetheseatassemblytotheplatformusingthe4hex-headbolts(8x25mm)and4locknuts(8
mm)asshowninFigure26.
g345728

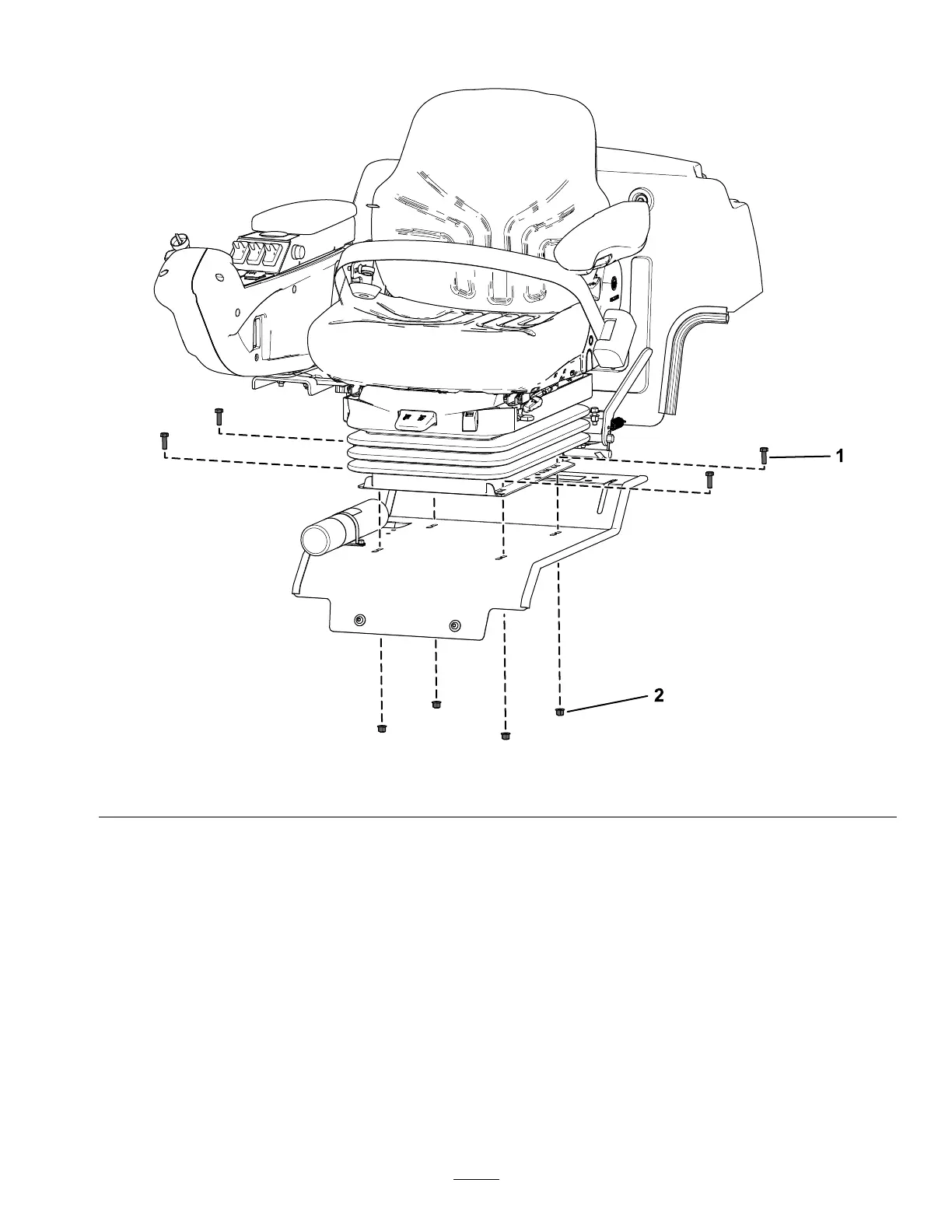

Figure26
1.Hex-headbolt(8x25mm)2.Locknut(8mm)
3.Fullyraisetheplatform.
4.Torquethe4locknuts(8mm)to27N∙m(20ft-lb).
18
