Toro Lynx User Manual

30

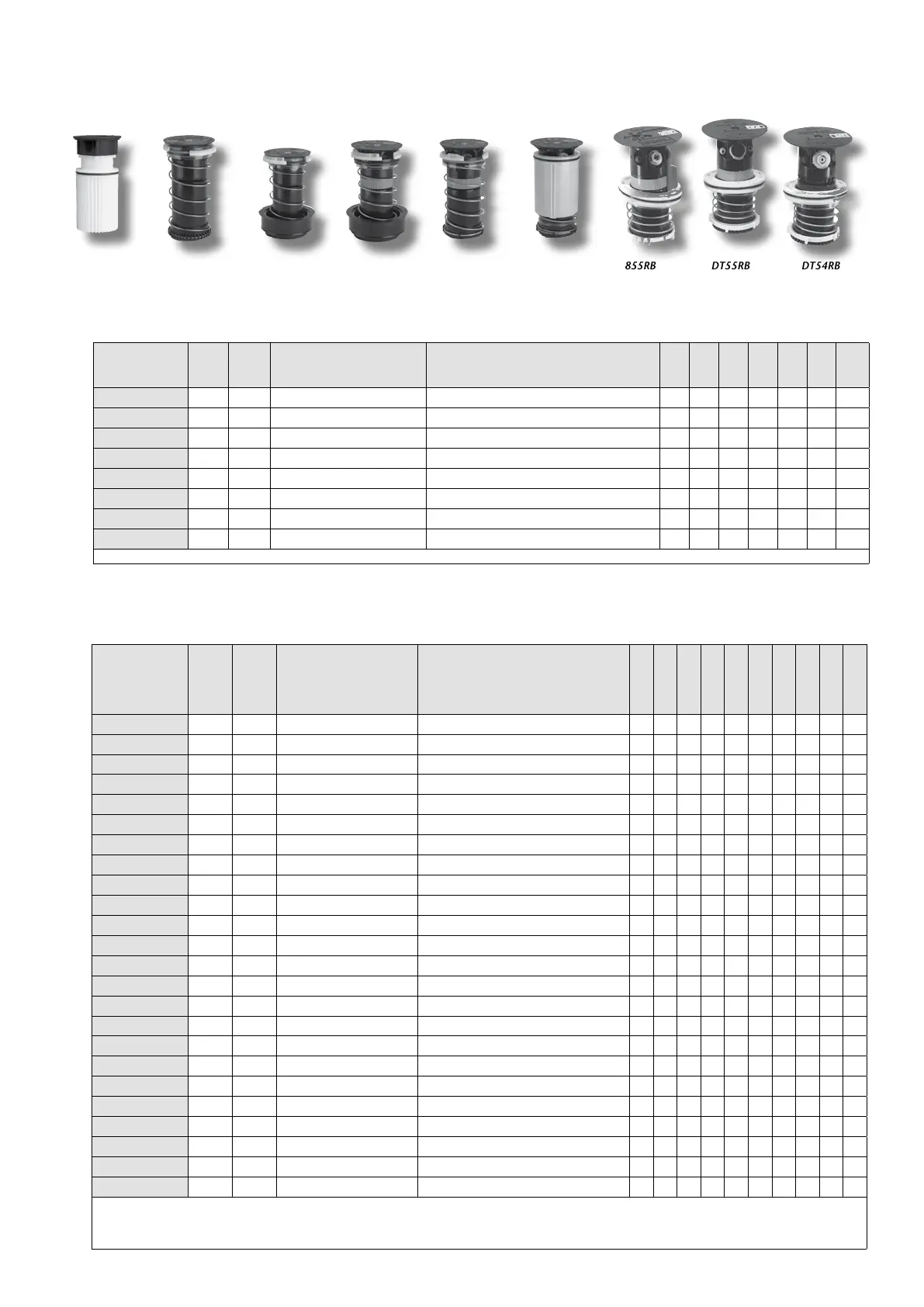

Conversion Assembly
Chart
720
Conversion
Assembly
830S
Conversion
Assembly
850S
Conversion
Assembly
855S
Conversion
Assembly
835S
Conversion
Assembly
855S
Conversion
Assembly,
Ribless Body
855RB
Conversion
Assembly
DT55RB
Conversion
Assembly
DT54RB
Conversion
Assembly
1” Models F/C P/C Radius Flow
630 660 730 760
834S 860S 835S
DT34-3134 X 17-24m (57’-79’) 49-132 LPM (13.0-34.9 GPM) X X X X X X X
DT34-3537 X 23-28m (76’-91’) 122-178 LPM (32.2-46.9 GPM) X X X X X X X
834S-3134 X 17-25m (55’-81’) 52-134 LPM (13.7-35.4 GPM) X X X X X X X
834S-3537 X 21-28m (69’-91’) 107-171 LPM (28.2-45.3 GPM) X X X X X X X
DT35-3134 X X 16-23m (53’-74’) 52-129 LPM (13.8-34.1 GPM) 1 X X X X
DT35-3537 X X 22-25m (72’-83’) 129-179 LPM (34.1-47.3 GPM) 1 X X X X
835S-3134 X X 16-24m (52’-80’) 52-140 LPM (13.7-37.0 GPM) 1 X X X X
835S-3537 X X 23-28m (76’-92’) 123-171 LPM (32.4-45.3 GPM) 1 X X X X
1. Must have ribbed bodies manufactured after 1992 to use part circles (P/C).
1.5” Models F/C P/C Radius Flow
650 670 680 690 750 780
850S 880S 855S
RB Eagle
DT54-5154
X 18-25m (58’-81’) 50-139 LPM (13.2-36.7 GPM) X X X 2 X X X X X
DT54-5558
X 24-29m (79’-95’) 129-210 LPM (34.2-55.4 GPM) X X X 2 X X X X X
DT54-59
X 29-30m (96’-99’) 210-234 LPM (55.6-61.8 GPM) X X X 2 X X X X X
DT54RB-5154
X 18-25m (58’-81’) 55-139 LPM (14.6 -36.7 GPM) X
DT54RB-5558
X 25-29m (83’-95’) 150-210 LPM (39.5-55.4 GPM) X
854S-5154
X 18-25m (61’-83’) 53-144 LPM (14.0-38.0 GPM) X X X 2 X X X X X
854S-5558
X 22-29m (71’-96’) 115-201 LPM (30.3-53.2 GPM) X X X 2 X X X X X
854S-59
X 28-30m (91’-97’) 211-227 LPM (55.7-60.0 GPM) X X X 2 X X X X X
DT55-5154
X X 17-23m (55’-75’) 53-131 LPM (14.1-34.5 GPM) 4 4 2 3 X X X X
DT55-5558
X X 22-27m (73’-90’) 136-204 LPM (35.9-53.9 GPM) 4 4 2 3 X X X X
DT55-59
X X 27-28m (89’-92’) 218-232 LPM (57.5-61.3 GPM) 4 4 X X X X
DT55RB-5154
X X 17-23m (56-75) 58-138 LPM (15.2-36.5 GPM) X
DT55RB-5558
X X 23-27m (76-89) 150-223 LPM (39.7-59.0 GPM) X
DT55-5154R
X X 17-23m (55’-75’) 53-131 LPM (14.1-34.5 GPM) 3 3 3 3
DT55-5557R
X X 22-27m (73’-90’) 136-204 LPM (35.9-53.9 GPM) 3 3 3 3
DT55-59R
X X 27-28m (89’-92’) 218-232 LPM (57.5-61.3 GPM) 3 3 3
855S-5154
X X 16-24m (52’-80’) 53-145 LPM (13.9-38.2 GPM) 4 4 2 3 X X X X
855S-5558
X X 23-29m (76’-95’) 128-193 LPM (33.8-51.1 GPM) 4 4 2 3 X X X X
855S-59
X X 29-30m (96’-100’) 216-231 LPM (57.0-61.1 GPM) 4 4 X X X X
855S-5154R
X X 16-24m (52’-80’) 53-145 LPM (13.9-38.2 GPM) 3 3 3 3
855S-5557R
X X 23-29m (76’-95’) 128-193 LPM (33.8-51.1 GPM) 3 3 3 3
855S-59R
X X 29-30m (96’-100’) 216-231 LPM (57.0-61.1 GPM) 3 3 3 3
855RB-5154
X X 17-24m (55’-80’) 61-152 LPM (16.1-40.2 GPM) X
855RB-5558
X X 24-29m (80’-96’) 148-209 LPM (39.1-55.3 GPM) X
2. Requires the use of conversion adapter part number 102-5011.
3. Use the ribless conversions “R” for these models dated earlier than 1992.
4. Requires ribbed body for part-circle performance.
New
New
New
New
New
New
