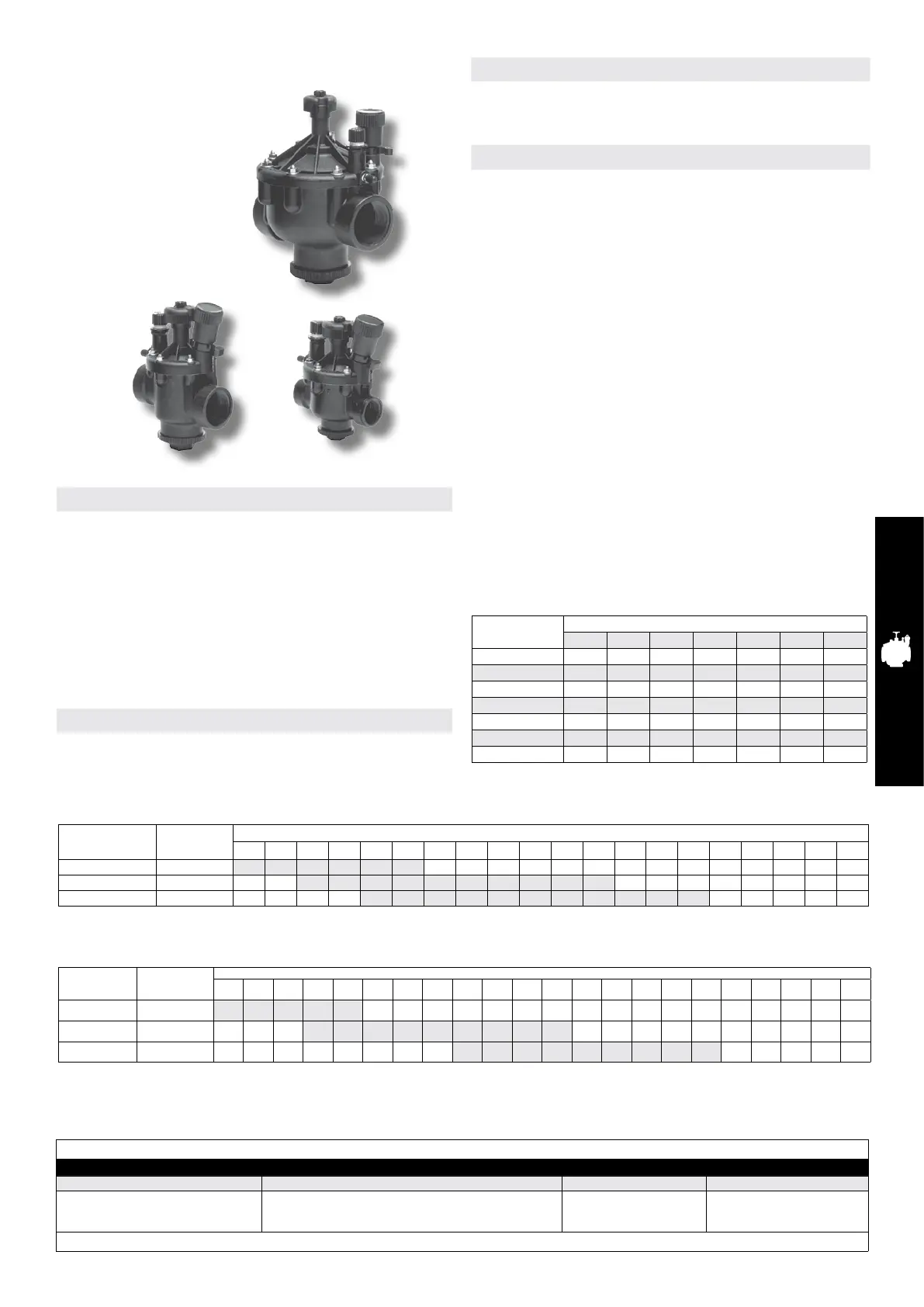

P220G Series
P220G‑27‑06
1.5”
P220G‑27‑08
2”
P220G‑27‑04
1”
P220G Series Friction Loss Data—(Metric)
Model Type
LPM Flow
25 50 75 100 125 150 200 250 300 350 400 450 500 600 700 800 900 1000 1200 1400
25mm (1") Electric 0,15 0,13 0,17 0,31 0,41 0,48
40mm (1
1
/2") Electric 0,32 0,33 0,36 0,37 0,42 0,47 0,55 0,64 0,79 1,02
50mm (2") Electric 0,09 0,14 0,15 0,19 0,24 0,35 0,44 0,51 0,59 0,75 1,00
Notes: For optimum performance when designing a system, calculate total friction loss to ensure sufficient downstream pressure,
For optimum regulation performance, size regulating valves toward the higher flow ranges,
Flow rates are recommended not to exceed 0,3 bar loss, Values shown in bar,
P220G Series Friction Loss Data*—(U.S.)
Size Configuration
GPM Flow
5 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 180 200 225 250 275 300
25mm (1”)
Globe
Angle
4.00
4.00
4.20
4.20
3.20
3.10
4.10
2.70
7.20
4.80
40mm (1
1
/2”)
Globe
Angle
1.60
1.30
2.30
1.60
3.60
2.80
5.20
4.00
7.00
5.50
9.20
7.10
11.20
8.90
13.60
10.90
16.40
13.80
50mm (2”)
Globe
Angle
2.10
1.20
2.70
1.60
3.30
2.00
4.00
2.40
4.80
2.80
5.60
3.30
6.50
3.90
7.50
4.40
8.70
5.20
Note: For optimum performance when designing a system, be sure to calculate total friction loss to ensure sufficient downstream pressure.
For optimum regulation performance, size regulating valves toward the higher flow ranges.
Flow rates are recommended not to exceed 5 psi loss. Values shown in psi.
Specifying Information—P220G Series
P220G-27-OXXXX
Type Body Style Size Optional
P220G 27 X XXX
P220G—P220G Series Plastic Valve 27—NPT, Pressure-regulated (5–100 PSI)
24—BSP, Pressure Regulated (5-100 PSI)
4— 25mm (1")
6— 40mm (1
1
⁄
2
")
8— 50mm (2")
DL—DC Latching Solenoid
E—Effluent
Example: A 1” (25mm) P220G Series plastic electric, pressure-regulating valve with a 60 Hz solenoid, would be specified as: P220G-27-04
Features
• Double beaded fabric reinforced diaphragm
• Glass-filled nylon and stainless steel construction
• Internal and External bleed
• No external tubing
• Standard, built-in Schrader-type valve for downstream
pressure verification
• Flow control independent of solenoid
• Self-aligning bonnet to ensure correct installation
• Self-cleaning, stainless steel metering rod
• Low-flow capability down to 5 GPM
• Low-power requirement for longer wire runs
Warranty
• Two years
Valve Wire Sizing Chart
Maximum One-way Distance (in ft.) Between Controller and Valve Using Spike-
Guard
™
Solenoid*
Ground Wire
Control Wire
18 16 14 12 10 8 6
18 2040 2520 2940 3280 3540 3720 3860
16 2520 3260 4000 4660 5220 5620 5920
14 2940 4000 5180 6360 7420 8300 8960
12 3280 4660 6360 8240 10100 11800 13180
10 3540 5220 7420 10100 13180 16060 18770
8 3720 5260 8300 11800 16060 20800 25540
6 3860 5960 8960 13180 18700 25540 33080
* Solenoid Model: 24 V ac Pressure: 150 psi Voltage Drop: 4 V Minimum Operating
Voltage: 20 V Amperage (peak) 0.12 A
Dimensions
• 25mm (1”): 146 x 127mm (5.75” H x 5” W)
• 40mm (1.5”): 165 x 152mm (6.5” H x 6” W)
• 50mm (2”): 191 x 178mm (7.25” H x 7” W)
Operating Specifications
• Flow Range:
– 25mm (1”): 18,9 - 132,5 LPM (5 - 35 GPM)
– 40mm (1.5”): 113,6 - 416,4 LPM (30 - 110 GPM)
– 50mm (2”): 302,8 - 681,4 LPM (80 - 180 GPM)
Operating Pressure:
(15,2 bar (220 psi) maximum pressure rating):
– Electric: 0,7 - 15,2 bar (10 - 220 psi)
• Pressure regulating:
– Outlet: 0,3 - 6,9 bar (5 - 100 psi ± 3 psi)
– Inlet: 0,7 - 15,2 bar (10 - 220 psi)
• Minimum pressure differential (between inlet and outlet)
for pressure regulation: 0,7 bar (10 psi)
• Burst pressure safety rating: 51,7 bar (750 psi)
• Body styles:
– Globe/Angle: 25mm, 40mm, and 50mm
(1”, 1.5”, 2”) female threads
• Spike Guard™ Solenoid: 24 VAC (50/60 Hz) Standard
– Inrush: 60 Hz; 0,12 amps
– Holding: 60 Hz; 0,1 amps

Toro Lynx Specifications

General

Manufacturer	Toro
Flow Management	Yes
Output Voltage	24 VAC
Communication	Wireless
Remote Control	Yes
Reporting	Yes
