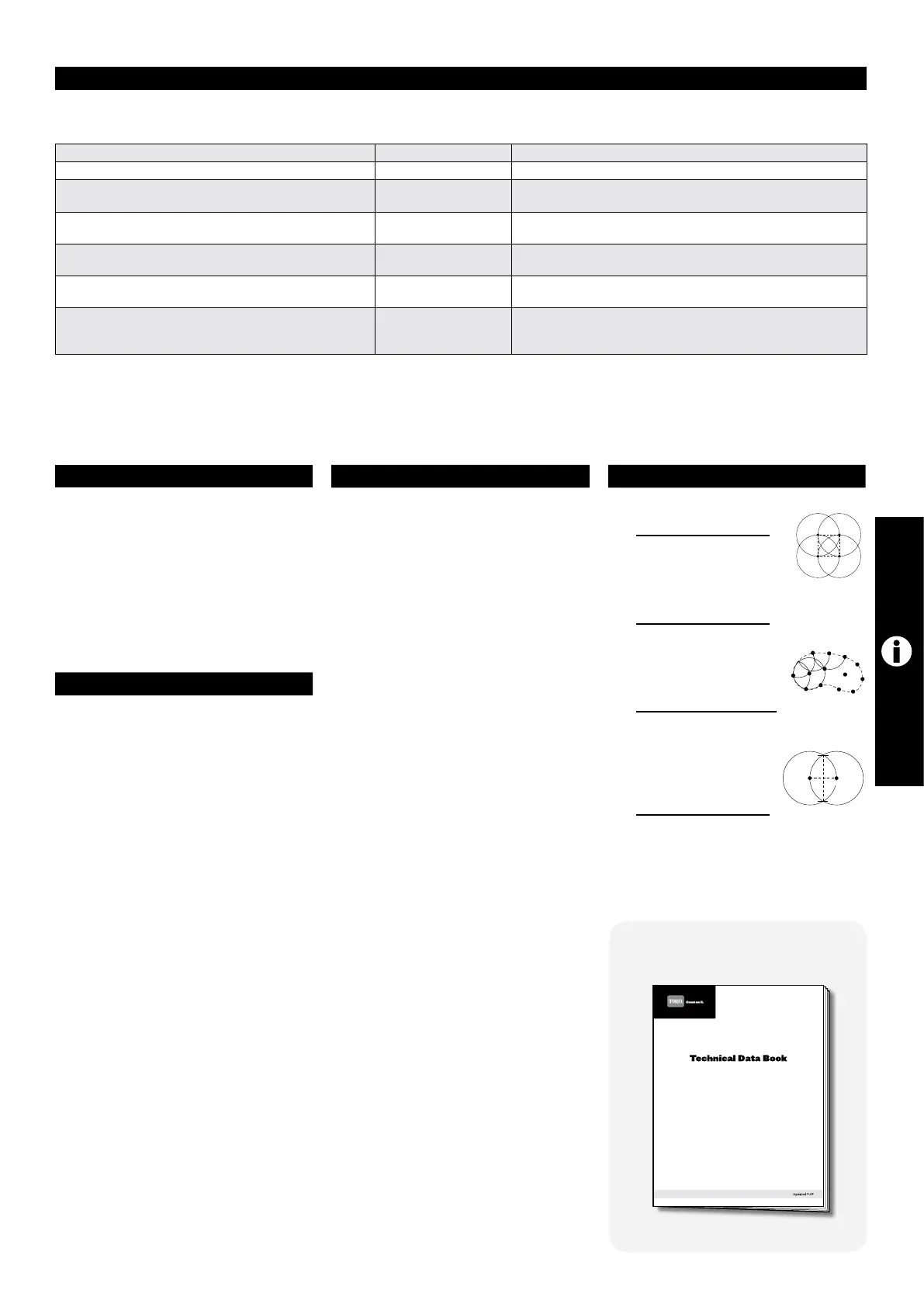

Technical Data
Technical Data Book
Form No. 490-1737
6FDOORS
6SDFLQJ
CONVERSION INFORMATION SPRINKLER SPACING PRECIPITATION RATE FORMULAS
■ All gallons per minute are shown in U.S.
■ To convert to imperial gallons per
minute, multiply by 0.833
■ To convert to liters per minute, multiply
by 3.78
■ To convert pounds per square inch (psi)
to atmospheres, divide by 14.7
■ To convert pounds per square inch (psi)
to kilograms per square centimeter
(kg/cm
2
), divide by 14.22
■ To convert feet to meters, divide by 3.28
The Toro Company does not recommend
designing for zero (0) mph wind
conditions.
■ Square Spacing
No wind - 55% of diameter
4 mph wind - 50% of diameter
6,4 kph wind - 50% of diameter
8 mph wind - 45% of diameter
12,8 kph - 45% of diameter
■ Triangular Spacing
No wind - 60% of diameter
4 mph wind - 55% of diameter
6,4 kph wind - 55% of diameter
8 mph wind - 50% of diameter
12,8 kph - 50% of diameter
■ Single Row Spacing
No wind - 50% of diameter
4 mph wind - 50% of diameter
6,4 kph wind - 50% of diameter
8 mph wind - 45% of diameter
12,8 kph - 45% of diameter
Design in consideration of the worst wind
conditions.
■ Square-spaced sprinklers in pattern:
GPM of full-circle x 96.3
(Spacing)
2
■ Triangular-spaced sprinklers in pattern:
GPM of full-circle x 96.3
(Spacing)
2
(.866)
■ Area and flow:
Total GPM of zone x 96.3
Total irrigated
square feet of zone
■ Single row:
GPM of full-circle x 96.3
(Spacing) (Scallop)
WINTERIZING SPECIFICATIONS
In freezing climates, valves should be
properly winterized to prevent freeze-
related damage.
Valve-In-Head Activation Types
VALVE SPECIFICATIONS
CONTROL SYSTEMS
Type of System
Max. Distance From
Controller to Valve Elevation Restrictions
Pin Type
£
(00) Hydraulic* with 0.19" Control Tubing 30,5m (100')
Pin Type
£
(00) Hydraulic* with 0.25" Control Tubing 61,0m (200')
Normally Open (01) with 0.19" Control Tubing 152,4m (500') Valve elevation should not exceed 7.6m (25') ABOVE or 21.3 (70')
BELOW controller elevation.
Normally Closed (08) Hydraulic with 0.19" Control Tubing 152,4m (500') Valve elevation should not exceed 0m (0') ABOVE or 21.3 (70')
BELOW controller elevation.
Normally Open (01) with 0.25" Control Tubing 304,8m (1000') Valve elevation should not exceed 7.6m (25') ABOVE or 21.3 (70')
BELOW controller elevation.
Normally Closed (08) Hydraulic with 0.25" Control Tubing 304,8m (1000') Valve elevation should not exceed 0m (0') ABOVE or 21.3 (70')
BELOW controller elevation.
Electric (06) Depends on variables
• Voltageavailable
• Wiresize
NONE
* ‑ All hydraulic connections on Toro valves are
1
⁄4" insert type.
‑ Control line pressure must be equal to or greater than mainline pressure.
‑ Control line pressure range is 40 to 150 psi.
* * Minimum solenoid voltage required for reliable electric VIH operation is 19.5 V AC
£ ‑ Maximum of one (1) valve per station on pin type systems.
Electric
• Pressure regulation featur at the same
pressure—regardless of elevation
changes
• Manual On-Off-Auto control at the
sprinkler
• Individual sprinkler control for more
precise watering
Normally Open
• Individual sprinkler control for more
precise watering
• Hydraulic control capability with
sophisticated electronic/electric control
systems
• Ideal for all dirty water applications—
irrigation water is not used for control
• Lightning resistant
Check-O-Matic
• Maintains 37' elevation change
• Eliminates low-head drainage
• Requires separate remote control valve
