25
B Series
Specifying Information—B Series
XXXXB-X2-XXXXX
Series Arc System Thread Type Valve Type Nozzle Optional
XXX X B X 2 XXXX X
DT3—DT Series
83—835 Series
4—Full-Circle (DT only)
5—Part-/Full-Circle
B—Block 0—NPT
4—ACME
5—BSP
Check-O-Matic 3134— Includes nozzles #31, 32, 33 & 34
3538— Includes nozzles #35, 36, 37 & 38
E—Effluent Model
Example: When specifying a DT34B Series Sprinkler with NPT threads, #34 nozzle, you would specify: DT34B–02–3134

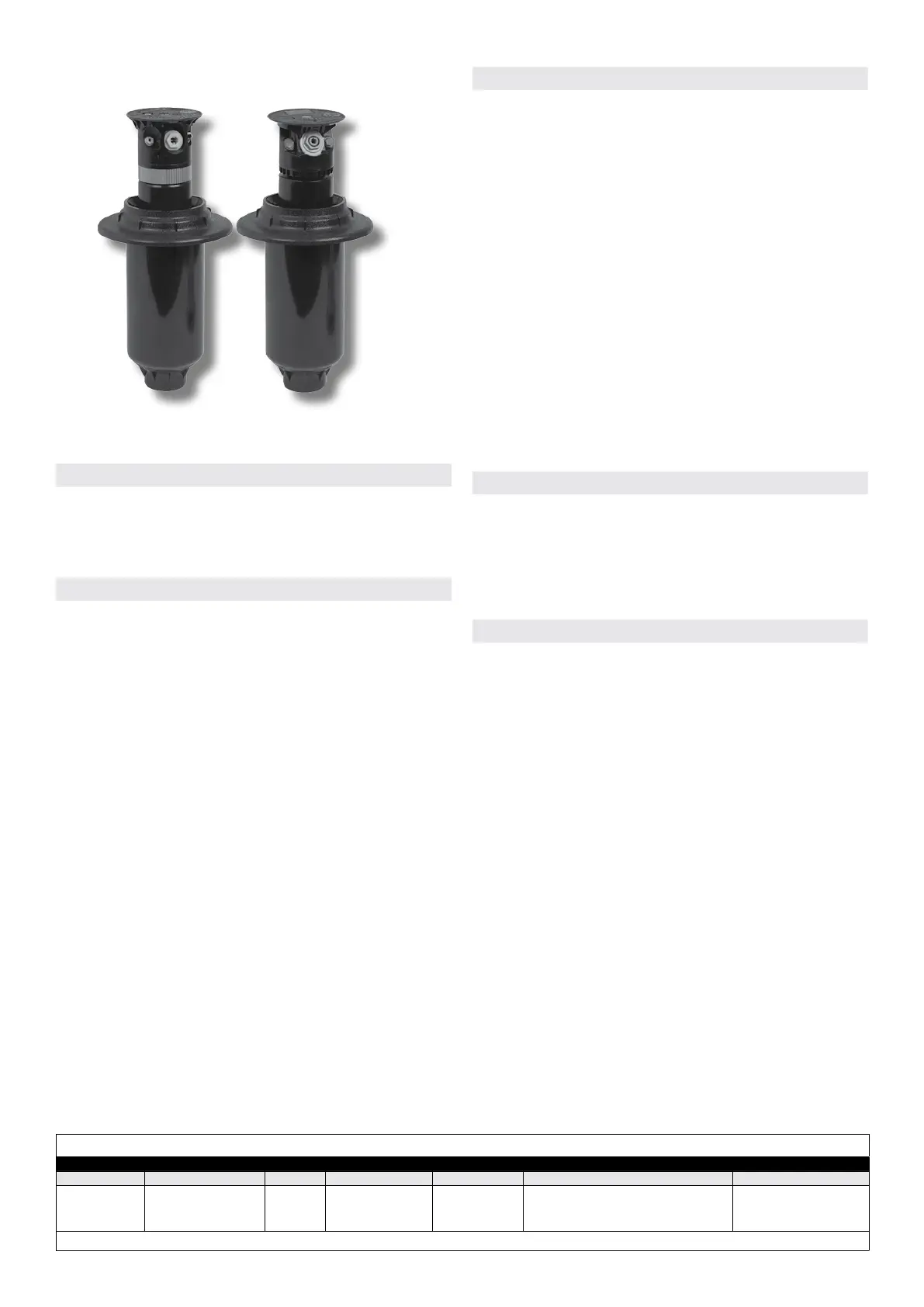

835B DT34B
Operating Specifications
• Inlet:
• 25mm (1”) NPT, BSP or ACME
• Radius:
• 835B: 13m – 29m (42’– 95’)
• DT35B: 13m – 27m (43’– 90’)
• DT34B: 17m – 29m (57’– 95’)
• Flow Rate:
• 835B: 26,8 – 198,7 LPM (7.1 – 52.5 gpm)
• DT35B: 31,0 – 213,1 LPM (8.2 – 56.3 gpm)
• DT34B: 49,2 – 209,7 LPM (13.0 – 55.4 gpm)
• Precipitation Rates:
• 835B: 8,6 – 14,2 mm/hr (.34 in/hr – .56 in/hr)
• DT35B: 9,3 – 17,0 mm/hr (.37 in/hr – .67 in/hr)
• DT34B: 8,3 – 14,9 mm/hr (.33 in/hr – .59 in/hr
• Recommended Operating Pressure
• 4,4 – 6,9 Bar (65-100 psi)
• Trajectory:
• 835B – 7°-30° in 1° increments; 24 positions
• DT35B - 15° or 25° - 2 positions
• DT34B - 15° or 25° - 2 positions
• Check-O-Matic feature prevents low head drainage up to
10’ of elevation change
Dimensions
• Body diameter: 15,2cm (6”)
• Body height: 21,6cm (8.5”)
• Weight:
• 835B: 0,9kg (1.99 lbs)
• DT35B: 0,9kg (2 lbs)
• DT34B: 0,89kg (1.97 lbs)
• Pop-up height to nozzle: 8,25cm (3.25”)
Warranty
• Two years
Features
• Part and full circle in one – 40° to 330° and true uni-
directional ful-circle
• Small exposed diameter. Perfect for high traffic areas like
trees, greens and surrounds
• Flanged cap installs below grade
Nozzle Selection
• Nozzle variations
• 835B – Nine variations (30, 31, 32, 33, 34, 35, 36, 37,
38)
• DT35B - Nine variations (30, 31, 32, 33, 34, 35, 36, 37,
38)
• DT34B – Eight variations (31, 32, 33, 34, 35, 36, 37, 38)
• Back nozzle capability on part circle models standard
• 835B – one position available
• DT35B – two positions available
• DT34B has 2 additional front nozzle positions
• Main-less capability for short radius applications
• Optional radius reduction screw (363-4839) on DT models
for fine tuning the radius
• Stator variations: 835B - 3; DT35B - 3; DT34B - 2
