Toro Power Max 38624 - Adjusting the Discharge Chute Latch; Replacing the Drive Belts; Replacing the Headlight Bulb

AdjustingtheDischargeChute
Latch
Ifthedischargechutedoesnotlockintothedesired
positionordoesnotunlocksothatyoucanmoveitto
anotherposition,adjustthedischargechutelatch.

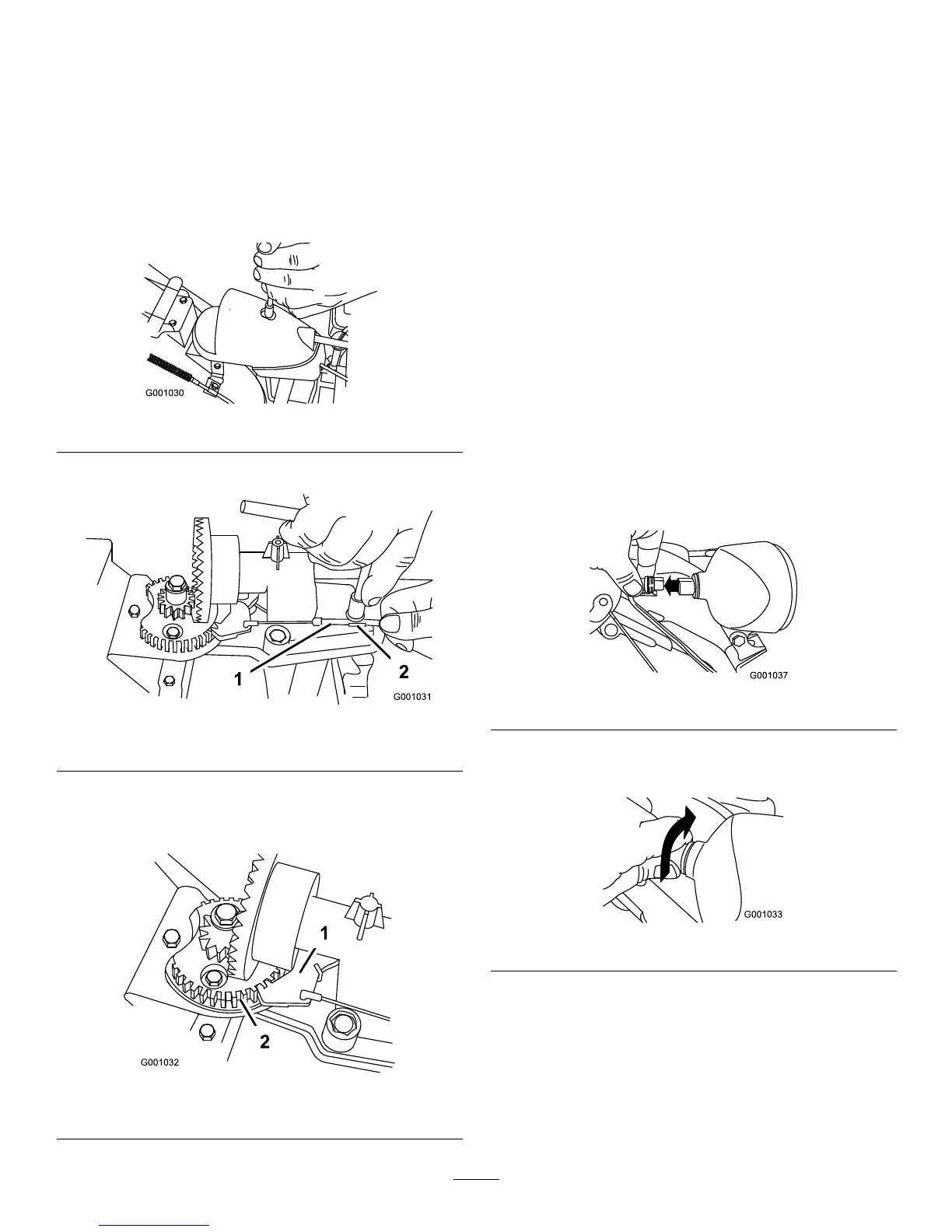

1.Removethefasteneronthegearcover(Figure58),
liftthefrontofthecoverup,andslideitbackand
outoftheway.
Figure58
2.Loosentheboltonthecableclamp(Figure59).
Figure59
1.Cableconduit2.Cableclamp
3.Graspthecableconduitandmoveittowardthefront
ofthemachineuntilthedischargechutelatchfully
engagesthegearteeth(Figure59andFigure60).
Figure60
1.Dischargechutelatch
2.Gearteeth
Note:Thelatchisspringloadedandwillnaturally
moveintotheteethofthegear(Figure60).
4.Removeanyslackinthecablebypullingthecable
conduitrearward.
5.Tightentheboltonthecableclamp.
6.Installandsecurethegearcover.
ReplacingtheDriveBelts
Iftheauger/impellerdrivebeltorthetractiondrivebelt
becomesworn,oil-soaked,orotherwisedamaged,go
towww .Toro.comforadditionalserviceinformationor
haveanAuthorizedServiceDealerreplacethebelt.
ReplacingtheHeadlightBulb
UseaGE89216Whalogenlightbulb.Donottouch
thebulbwithyourhandsorallowdirtormoistureto
comeintocontactwiththebulb.
1.Removethewireconnectorfromthebackofthe
headlight(Figure61).
Figure61
2.Turnthebaseofthebulbcounterclockwiseuntilit
stops(Figure62).
Figure62
3.Removethebulbstraightoutfromthebackofthe
headlight(Figure63).
26
