ServicingtheCarbonCanister
Filters
ReplacingtheCarbonCanisterAirFilter
ServiceInterval:Every200hours(Servicemore
frequentlyifconditionsareextremely
dustyorsandy)
1.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
2.Removeanddiscardthecarboncanisterairlter
(

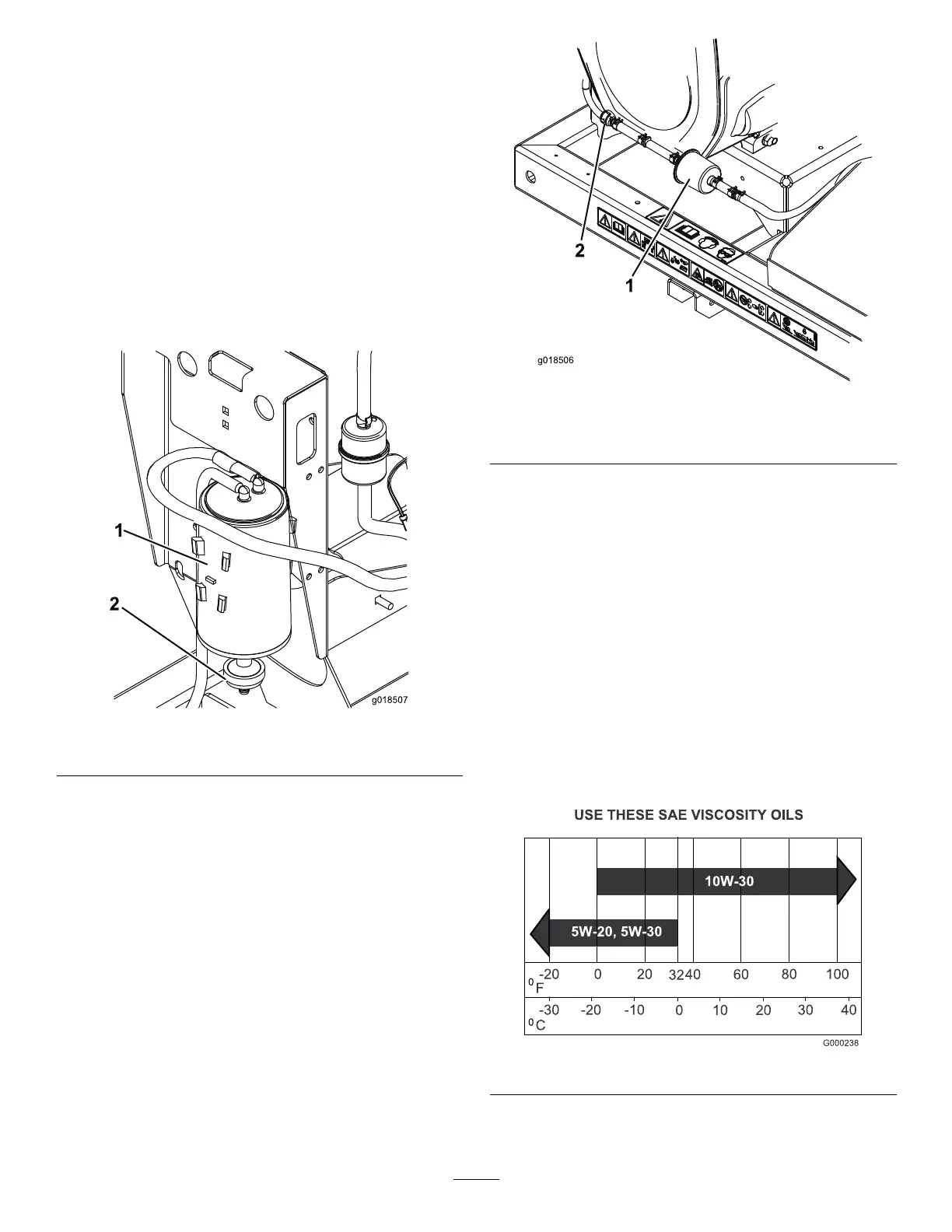

Figure18)
1
2
g018507
Figure18
1.Carboncanister2.Carboncanisterairlter
3.Installthenewairlter.
ReplacingtheCarbonCanister
Purge-lineFilter
ServiceInterval:Every200hours
Note:Checkthepurge-linelteroccasionallyfordirt.
Ifthelterappearstobedirty,replaceit.
1.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
2.Movethespring-typehoseclampsonbothsidesof
thecarboncanisterpurge-linelterawayfromthe
lter(
Figure19).
g018506
1
2
Figure19
1.Carboncanisterpurge-line
lter
2.Checkvalve
3.Removeanddiscardthecarbonlter(Figure19).
4.Installanewlterintothehosewiththearrowon
thelterpointingtowardsthecheckvalveandsecure
itwiththehoseclamps(
Figure19).
ServicingtheEngineOil
Note:Changetheoilmorefrequentlywhenthe
operatingconditionsareextremelydustyorsandy.
OilType:Detergentoil(APIserviceSG,SH,SJor
higher)
CrankcaseCapacity:w/lter,67ounces(2l)
Viscosity:Seethetablebelow .
Figure20
20
