Toro ProPass 200 Installation Instructions

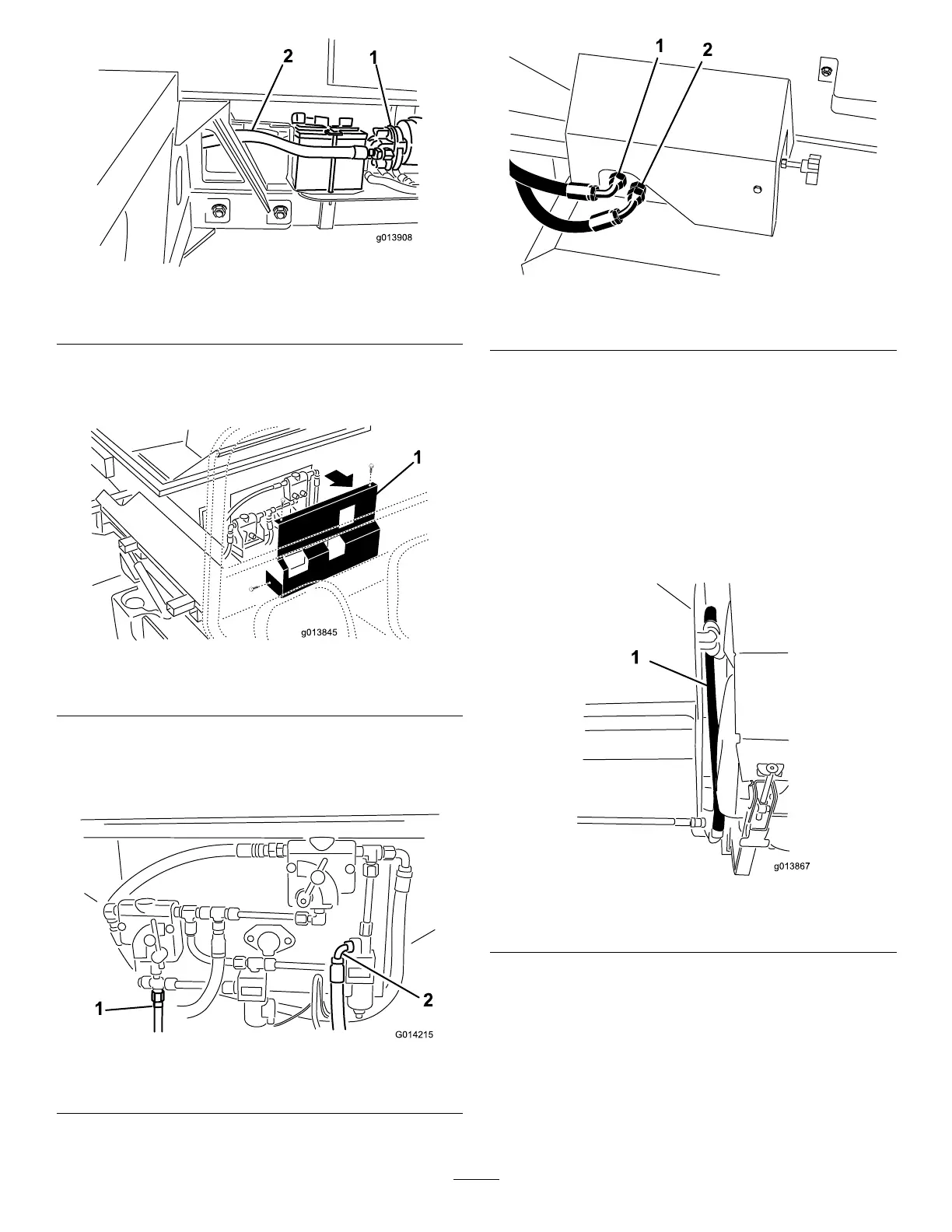

g013908
Figure12
1.Hydraulicpump
2.Hydraulichose#4
39.OntheSHversion,model44701,removethe
fastenerssecuringthecovertothefrontofthe
ProPassandsetthecoveraside(Figure13).
g013845
Figure13
1.Cover
40.Identifythepressureandreturnconnectionson
theProPassbasemodel.RefertoFigure14
fortheSHversionsandFigure15fortheEH
versions.
g014215
Figure14
1.Pressure2.Return
g259001
Figure15
1.Return2.Pressure
41.Ifpressureandreturnhoseswerepreviously
installedatthelocationsshowninFigure14and
Figure15,removethem.
Note:Makesurethehosesdonotcontactany
hot,sharpormovingparts.Trytoattainasmuch
clearancefromthemuferaspossible.
42.Connectthehydraulichosestothehydraulic
controlpanel.RefertoFigure14andFigure16
ontheSHversionsandFigure15andFigure
17ontheEHversions.
g013867
Figure16
1.Hoserouting
7
