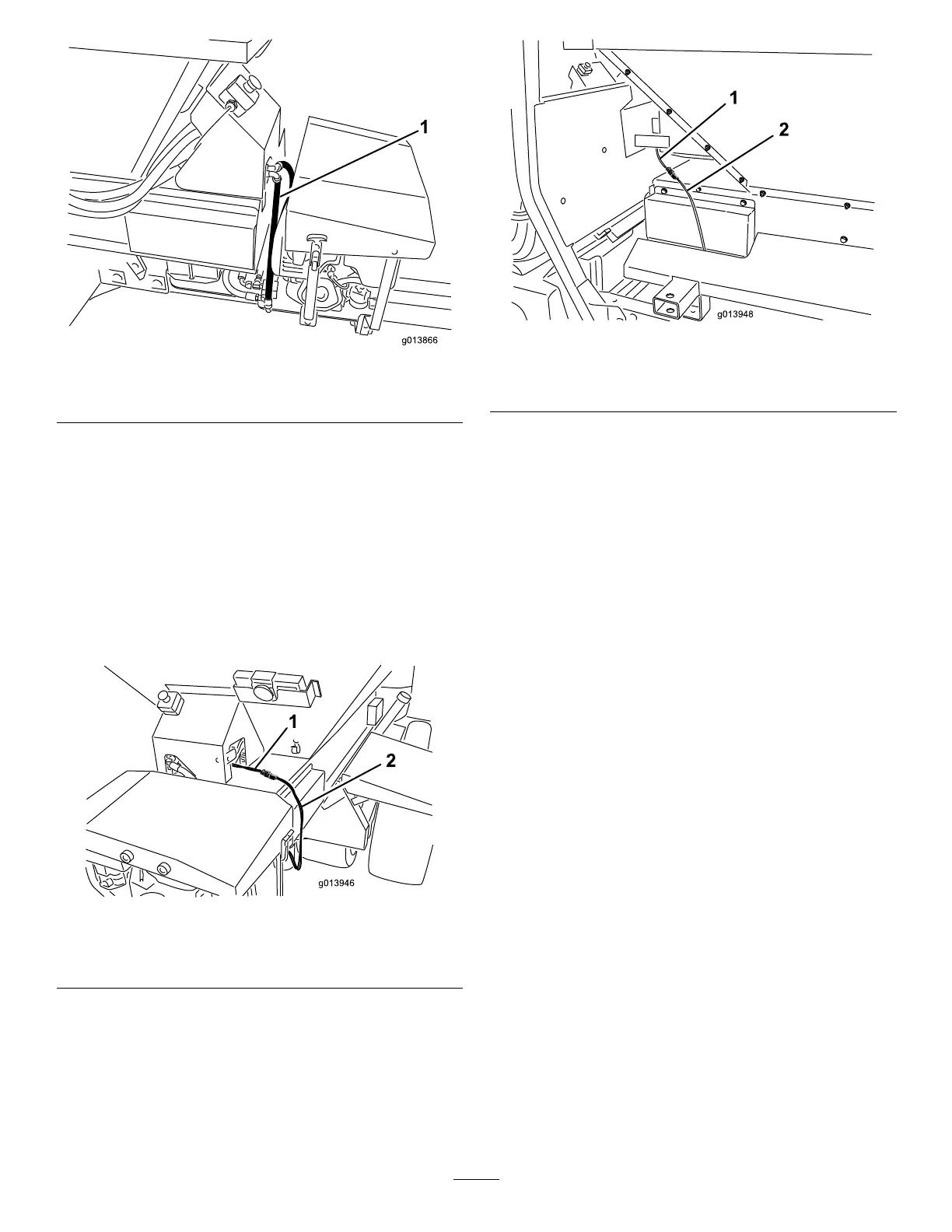

g013866
Figure17
1.Hoserouting
43.Tightenallofthehydraulicconnectionsand
fasteners.
44.RettheProPassTwinSpinnerassembly.
45.Connecttheblackcableandtheblackpre-routed
cabletothebatterynegativeterminalandthe
whitecableandtheredpre-routedcabletothe
batterypositiveterminal.
46.Plugtheintermediatewiringharnessintothe
powerharnessconnectorontheProPass
(Figure18orFigure19).
g013946
Figure18
1.Powerharness2.Intermediatewiring
harness
g013948
Figure19
1.Powerharness2.Intermediatewiring
harness
8
