Operation
Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.
BeforeOperation
InstallingtheBatteryPack
Important:Usethebatterypackonlyintemperaturesthatarewithintheappropriaterange;refer
toSpecications(page15).
Model21566and21566T
1.Ensurethattheventsonthebatteryareclearofanydustanddebris.
2.Pressdownonthebattery-compartmentlidtoopenit(AofFigure11).
3.Lineupthecavityinthebatterypackwiththetongueonthemachineandslidethebatterypackintothe
compartmentuntilitlocksintoplace(BofFigure11).
4.Pressdownonthebattery-compartmentliduntilitclicksintoplace(CofFigure11).
Note:Ifthebattery-compartmentliddoesnotclosecompletely,thebatteryisnotfullyinstalled.

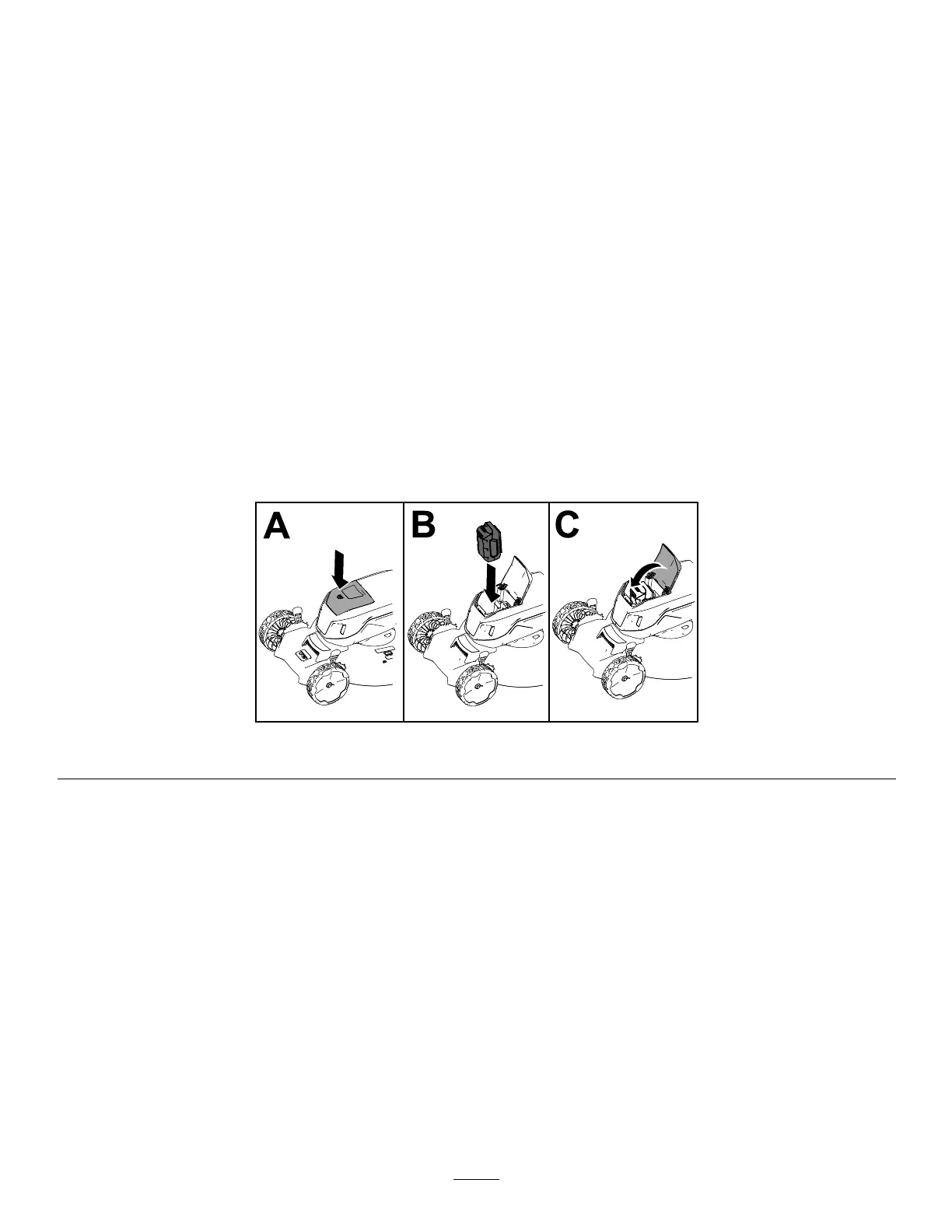

g378109
Figure11
