Toro Recycler 21566T - Adjusting Self-Propel Drive; Self-Propel Drive Adjustment Procedure

g231390

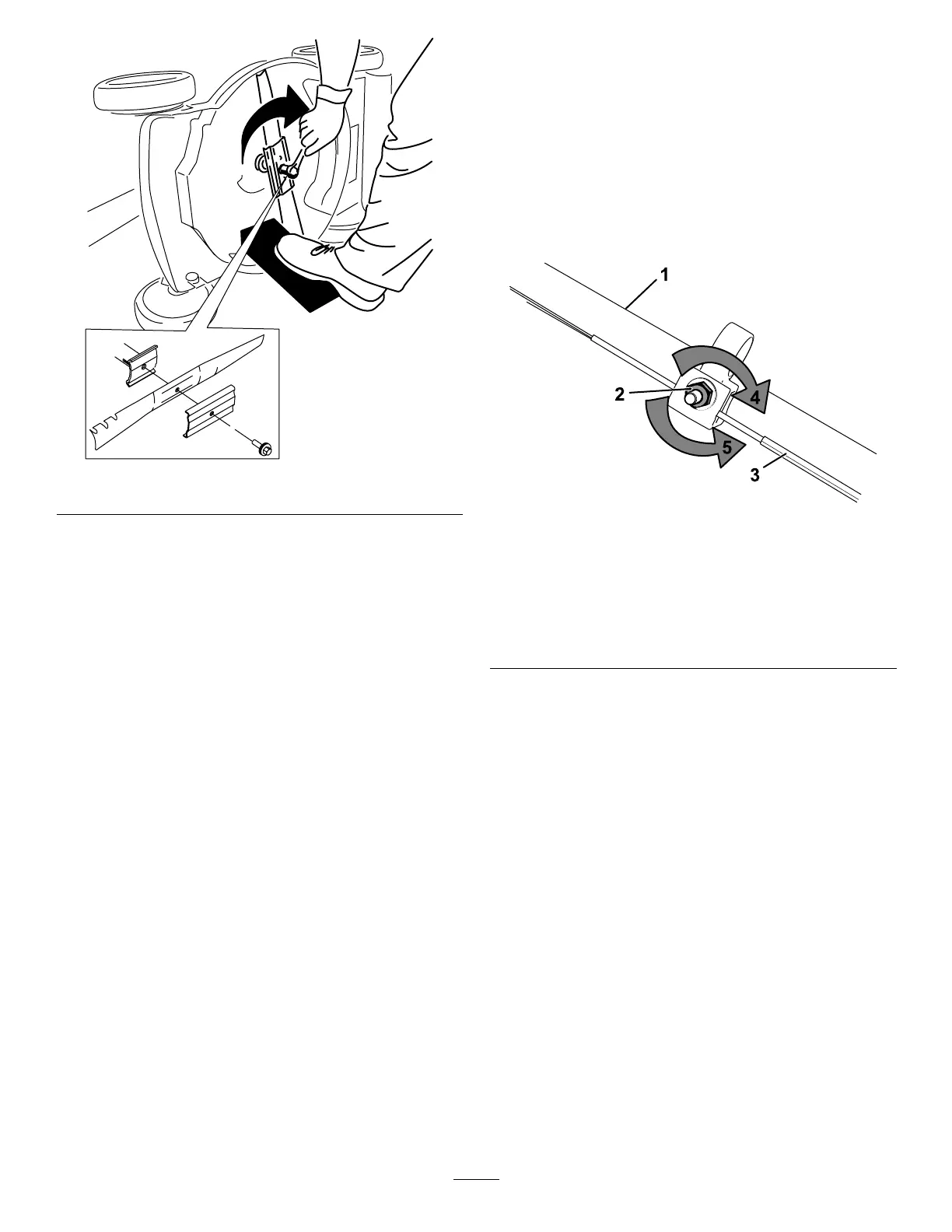

Figure28
Important:Positionthecurvedendsofthe
bladefacinguptowardthemachinehousing.
5.Useatorquewrenchtotightenthebladebolt
to88N∙m(65ft-lb).
AdjustingtheSelf-Propel
Drive
ForSelf-Propel-DriveModelsOnly
Wheneveryouinstallanewself-propelcableorif
theself-propeldriveisoutofadjustment,adjustthe
self-propeldrive.
1.Turntheadjustmentnutcounterclockwiseto
loosenthecableadjustment(Figure29).
g269307
Figure29
1.Handle(leftside)
4.Turnthenutclockwiseto
tightentheadjustment.
2.Adjustmentnut5.Turnthenut
counterclockwiseto
loosentheadjustment.
3.Self-propel-drivecable
2.Adjustthetensiononthecable(Figure29)by
pullingitbackorpushingitforwardandholding
thatposition.
Note:Pushthecabletowardthemotorto
increasethetraction;pullthecableawayfrom
themotortodecreasethetraction.
3.Turntheadjustmentnutclockwisetotightenthe
cableadjustment.
Note:Tightenthenutrmlywithasocketor
wrench.
29
