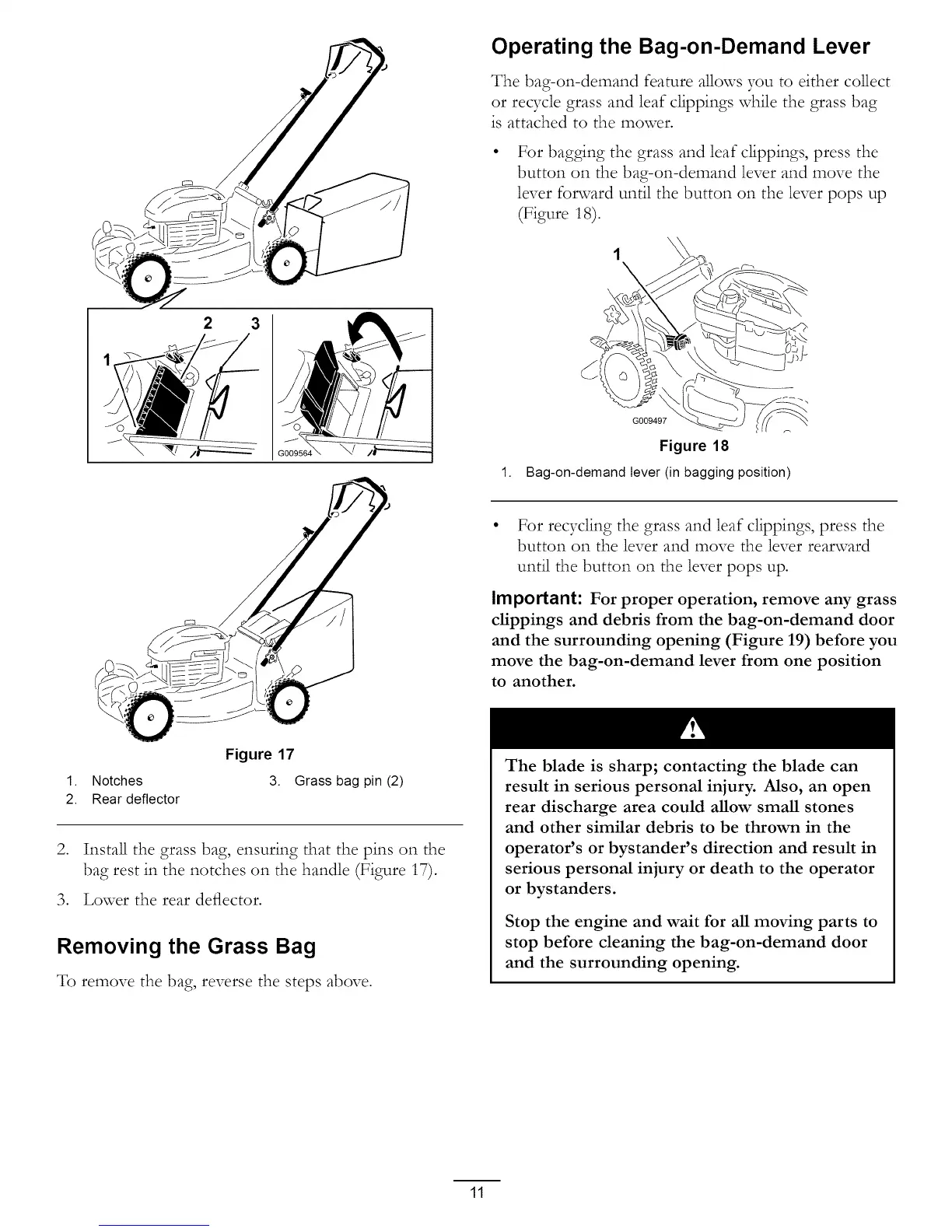

Figure 17
Notches 3. Grass bag pin (2)
Rear deflector
,
Install the grass bag, ensuring that the pins on the
bag rest in the notches on the handle (Figure 17).
3. Lower the rear deflector.
Removing the Grass Bag
To remove the bag, reverse the steps above.
Operating the Bag-on-Demand Lever
The bag-on-demand feature allows you to either collect
or recycle grass and leaf clippings while the grass bag
is attached to the mower.
For bagging the grass and leaf clippings, press the
button on the bag-on-demand lever and move the
lever fonvard until the button on the lever pops up
(Figure 18).
1
\
1.
G009497
Figure 18
Bag-on-demand lever (in bagging position)
• For recycling the grass and leaf clippings, press the
button on the lever and move the lever rearward
until the button on the lever pops up.
Important: For proper operation, remove any grass
clippings and debris from the bag-on-demand door
and the surrounding opening (Figure 19) before you
move the bag-on-demand lever from one position
to another.
The blade is sharp; contacting the blade can
result in serious personal injury. Also, an open
rear discharge area could allow small stones
and other similar debris to be thrown in the
operator's or bystander's direction and result in
serious personal injury or death to the operator
or bystanders.
Stop the engine and wait for all moving parts to
stop before cleaning the bag-on-demand door
and the surrounding opening.
