G009583
1. Clean here

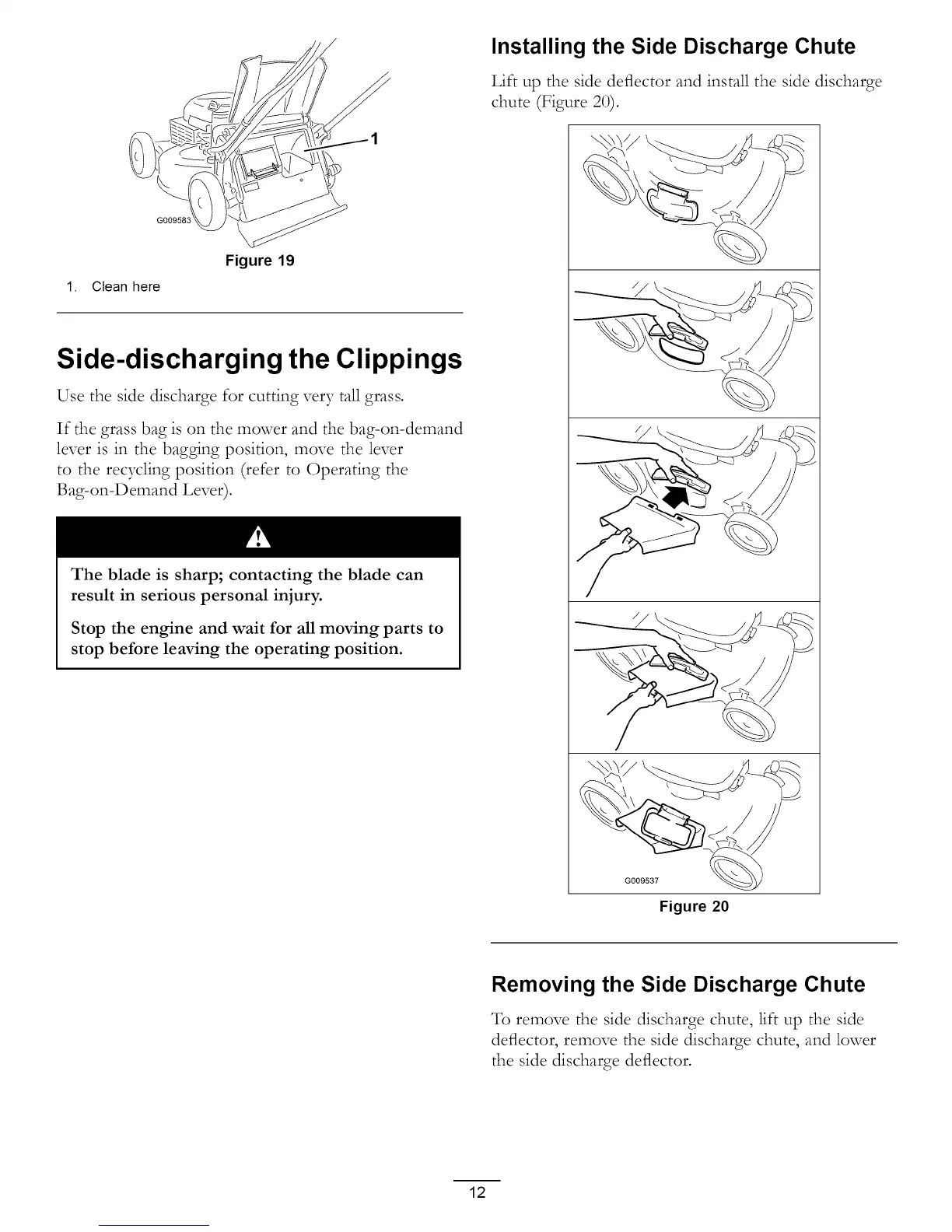

Figure 19
Side-discharging the Clippings
Use the side discharge for cutting very tall grass.
If the grass bag is on the mower and the bag-on-demand
lever is in the bagging position, move the lever
to the recycling position (refer to Operating the
Bag-on-Demand Lever).
The blade is sharp; contacting the blade can
result in serious personal injury.
Stop the engine and wait for all moving parts to
stop before leaving the operating position.
Installing the Side Discharge Chute
Lift up the side deflector and install the side discharge
chute (Figure 20).
/
G009537
Figure 20
Removing the Side Discharge Chute
To remove the side discharge chute, lift up the side
deflector, remove the side discharge chute, and lower
the side discharge deflector.
12
