Toro Reelmaster 5200-D - Control Panel Overview; Control Functions Overview

8

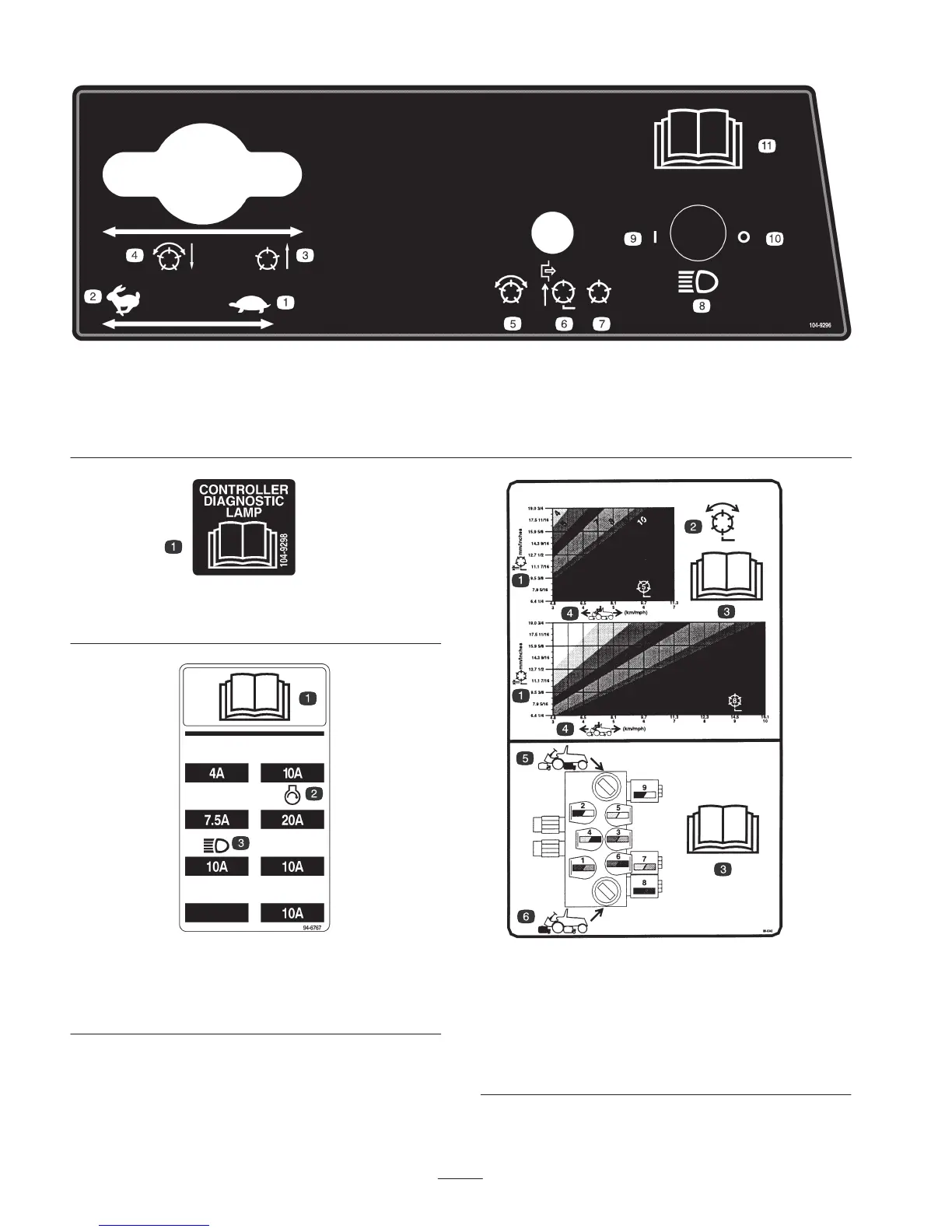

104-9296
1. Throttle—slow
2. Throttle—fast
3. Reels raised & off
4. Reels lowered and on when
enabled—forward and
backlap
5. Reels—enabled
6. Reels disabled—lift only
7. Reels disabled—lift and
lower
8. Headlights (optional)
9. Headlights—on
10. Headlights—off
11. Read operator’s manual
104-9298
1. Read operator’s manual
94-6767
1. Read operator’s manual
2. Engine start
3. Headlights (Optional)
98-9342
1. Height–of–cut
2. Mow and backlap
3. Read operator’s manual
4. Traction unit speed
5. Rear reels circuit controls
6. Front reels circuit controls
