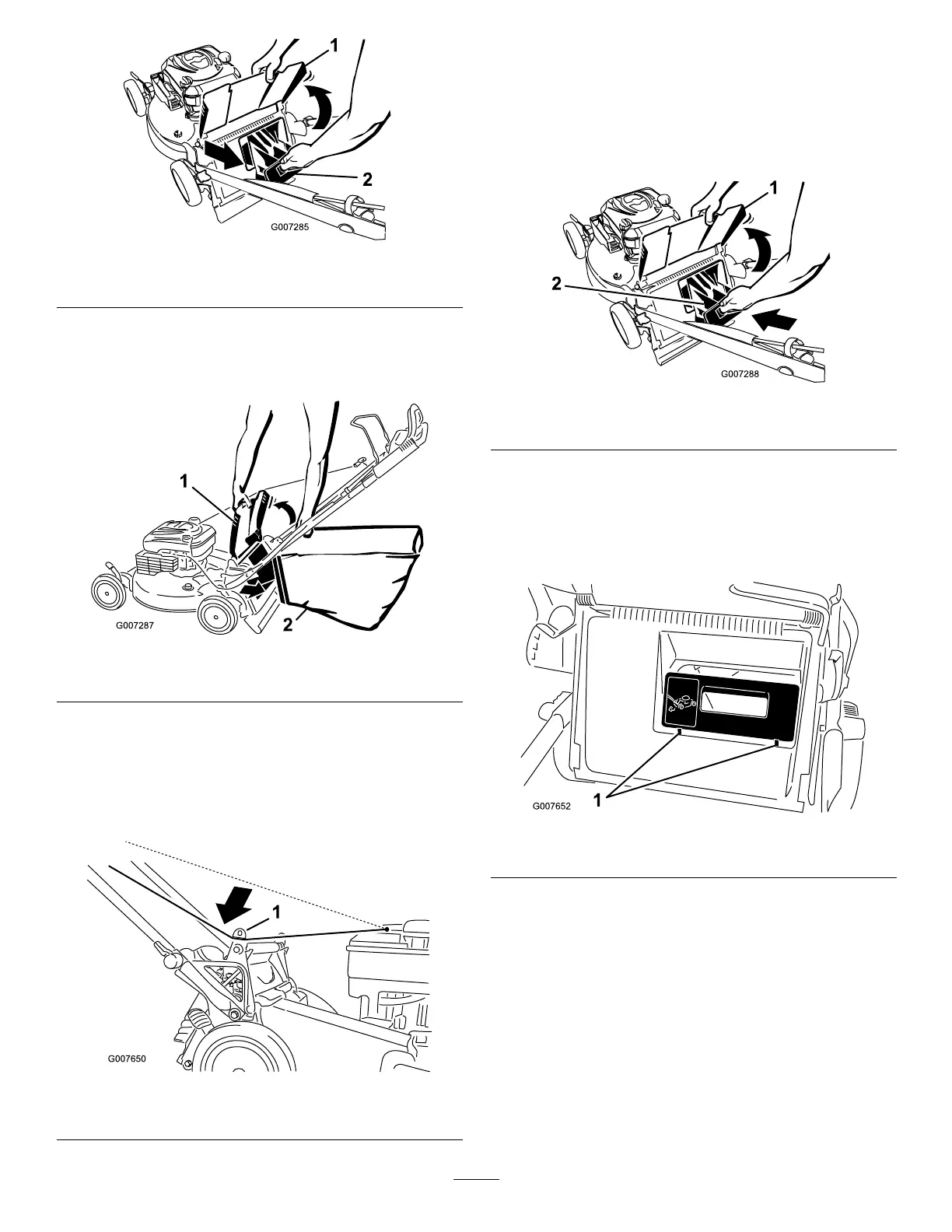

1.Dischargedeector
2.Reardischargeplug
3.Pulloutthereardischargeplug(Figure23).
4.Hangtheupperfrontedgeofthebagonthenotches
(Figure24).
Figure24
1.Dischargedeector2.Grassbag
5.Lowerthedischargedeector.
RemovingtheGrassBag
1.Routethestarterropearoundthelowerropeguide
(Figure25).
Figure25
1.Lowerropeguide
Note:Thelowerropeguidereleasesthestarterrope
whenyoupulltherecoilstarthandle.
2.Raiseandholdupthedischargedeector.
3.Liftthegrassbagupbythehandleoffthenotches.
4.Installthereardischargeplug(Figure26).
Figure26
1.Dischargedeector
2.Reardischargeplug
Important:Ensurethatthereardischarge
plugissecurelyinplace.Liftupthedischarge
deectorandlookfor2tabsinfrontoftheplug
(Figure27).Ifyoudonotseethem,rmlypush
thepluginuntilitsnapsintoplace.
Figure27
1.Tabs
5.Lowerthedischargedeector.
